AD7888

2.7 V to 5.25 V, Micro Power, 8-Channel, 125 kSPS, 12-Bit ADC in 16-Pin TSSOP

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $6.07
Features
  • Specified for VDD of 2.7 V to 5.25 V
  • Flexible Power/Throughput Rate Management
  • Shutdown Mode: 1 µA Max
  • Eight Single-Ended Inputs
  • Serial Interface:
    SPI®/QSPI™/MICROWIRE™/DSP Compatible
  • 16-Lead Narrow SOIC and TSSOP Packages
Additional Details
show more Icon

The AD7888 is a high speed, low power, 12-bit ADC that operates from a single 2.7 V to 5.25 V power supply. The AD7888 is capable of a 125 kSPS throughput rate. The input track-and-hold acquires a signal in 500 ns and features a single ended sampling scheme. The AD7888 contains eight single-ended analog inputs, AIN1 through AIN8. The analog input on each of these channels is from 0 to VREF. The part is capable of converting full power signals up to 3 MHz.

The AD7888 features an on-chip 2.5 V reference that can be used as the reference source for the A/D converter. The REF IN/REF OUT pin allows the user access to this reference. Alternatively, this pin can be overdriven to provide an external reference voltage for the AD7888. The voltage range for this external reference is from 1.2 V to VDD.

CMOS construction ensures low power dissipation of typically 2 mW for normal operation and 3 µW in power-down mode. The part is available in a 16-lead narrow body small outline (SOIC) and a 16-lead thin small shrink outline (TSSOP) package.

Part Models 8
1ku List Price Starting From $6.07

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD7888ACHIPS
  • HTML
  • HTML
AD7888ARUZ
  • HTML
  • HTML
AD7888ARUZ-REEL
  • HTML
  • HTML
AD7888ARUZ-REEL7
  • HTML
  • HTML
AD7888ARZ
  • HTML
  • HTML
AD7888ARZ-REEL7
  • HTML
  • HTML
AD7888BRZ
  • HTML
  • HTML
AD7888BRZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD7888ARUZ

PRODUCTION

AD7888ARUZ-REEL

PRODUCTION

Aug 3, 2010

- 10_0176

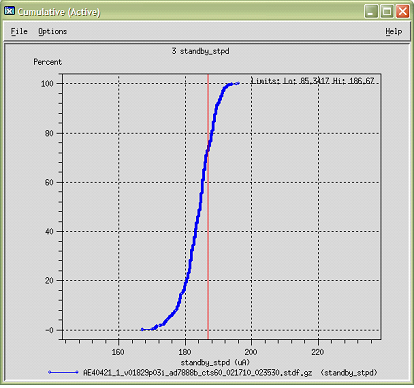

AD7888 Datasheet Specification change

AD7888ARUZ

PRODUCTION

AD7888ARUZ-REEL

PRODUCTION

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD7888ARUZ

PRODUCTION

AD7888ARUZ-REEL

PRODUCTION

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Mar 25, 2021

- 21_0080

Amkor Philippines as an Alternate Site for SOICN

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Oct 5, 2010

- 10_0146

Halogen Free Material Change for 14/16L SOIC_N Products

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Apr 25, 2016

- 15_0121

Obsolescence of AD7888ACHIPS

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 11, 2011

- 10_0005

arrow down

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD7888ARUZ

PRODUCTION

AD7888ARUZ-REEL

PRODUCTION

Aug 3, 2010

- 10_0176

arrow down

AD7888 Datasheet Specification change

AD7888ARUZ

PRODUCTION

AD7888ARUZ-REEL

PRODUCTION

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD7888ARUZ

PRODUCTION

AD7888ARUZ-REEL

PRODUCTION

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Mar 25, 2021

- 21_0080

arrow down

Amkor Philippines as an Alternate Site for SOICN

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Oct 5, 2010

- 10_0146

arrow down

Halogen Free Material Change for 14/16L SOIC_N Products

AD7888ARZ

PRODUCTION

AD7888ARZ-REEL7

PRODUCTION

AD7888BRZ

PRODUCTION

Apr 25, 2016

- 15_0121

arrow down

Obsolescence of AD7888ACHIPS
