AD7877

Touch Screen Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $2.86
Features
  • 4-wire touch screen interface
  • LCD noise reduction feature (STOPACQ pin)
  • Automatic conversion sequencer and timer
  • User-programmable conversion parameters
  • On-chip temperature sensor: −40°C to +85°C
  • On-chip 2.5 V reference
  • On-chip 8-bit DAC
  • 3 auxiliary analog inputs
  • 1 dedicated and 3 optional GPIOs
  • 3 interrupt outputs
  • 2 direct battery measurement channels (0.5V to 5V)
  • Qualified for automotive applications
  • See Data Sheet for additional features
Additional Details
show more Icon

The AD7877 is a 12-bit, successive approximation ADC with a synchronous serial interface and low on resistance switches for driving touch screens. The AD7877 operates from a single 2.7 V to 5.25 V power supply (functional operation to 2.2 V), and features throughput rates of 125 kSPS. The AD7877 features direct battery measurement on two inputs, temperature and touch-pressure measurement.

The AD7877 also has an on-board reference of 2.5 V. When not in use, it can be shut down to conserve power. An external reference can also be applied and varied from 1 V to +VCC, with an analog input range of 0 V to VREF. The device includes a shutdown mode that reduces its current consumption to less than 1 μA.

To reduce the effects of noise from LCDs, the acquisition phase of the on-board ADC is controlled via the STOPACQ pin. User-programmable conversion controls include variable acquisition time and first conversion delay. Up to 16 averages can be taken per conversion. There is also an on-board DAC for LCD back-light or contrast control. The AD7877 runs in either slave or master mode using a conversion sequencer and timer. It is ideal for battery-powered systems such as personal digital assistants with resistive touch screens and other portable equipment.

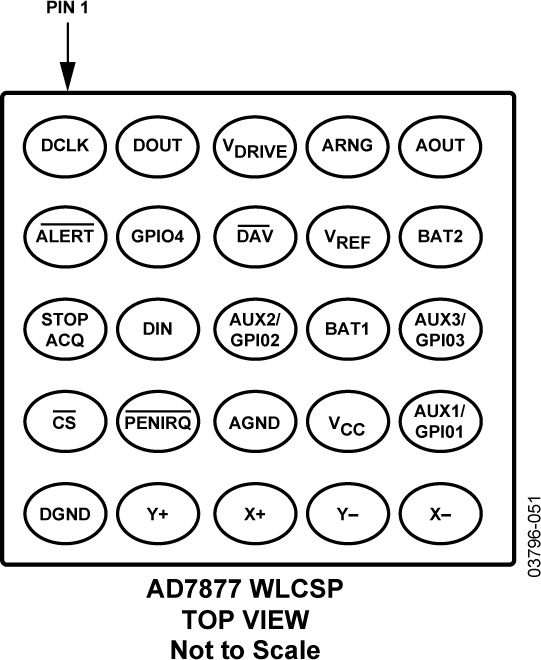

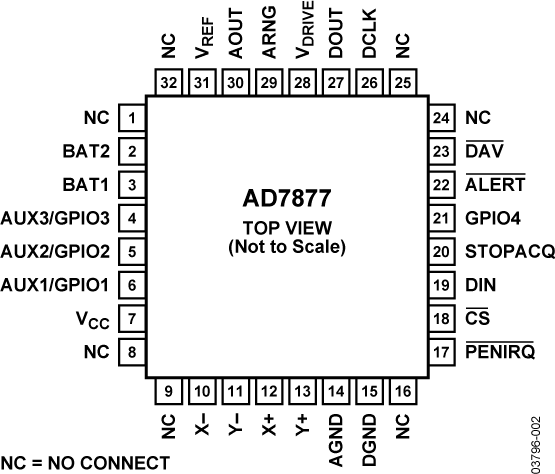

The part is available in a 32-lead lead frame chip scale package (LFCSP), and a 25-ball wafer level chip scale package (WLCSP). AD7877W model is qualified for automotive applications.

APPLICATIONS

  • Personal digital assistants
  • Smart hand-held devices
  • Touch screen monitors
  • Point-of-sale terminals
  • Medical devices
  • Cell phones
  • Pagers
Part Models 3
1ku List Price Starting From $2.86

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD7877ACPZ-500RL7
  • HTML
  • HTML
AD7877ACPZ-REEL7
  • HTML
  • HTML
AD7877WACPZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 10, 2014

- 14_0047

Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.

Oct 26, 2009

- 09_0202

Inclusion of Banding Tape for LFCSP REEL7 parts.

Aug 25, 2009

- 09_0172

AD7877 Datasheet specification changes

AD7877ACPZ-500RL7

PRODUCTION

AD7877ACPZ-REEL7

PRODUCTION

May 4, 2016

- 14_0178

Conversion of 3x3mm, 4x4mm and 5x5mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines
