AD7387-4

RECOMMENDED FOR NEW DESIGNS

Single-Ended Input, Quad, Simultaneous Sampling, 16-Bit/14-Bit/12-Bit, SAR ADC

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: Starting From $21.65

Viewing:

Overview

16-bit, 14-bit, and 12-bit ADC family
Quad simultaneous sampling
Single-ended analog inputs
High throughput rate: 4 MSPS
SNR (typical)
- 84.7 dB (AD7386-4) at V_REF = 3.3 V
- 82.4 dB (AD7387-4) at V_REF= 3.3 V
- 73.7 dB (AD7388-4)
- 92 dB with OSR = 8, VREF = 3.3 V (AD7386-4)
On-chip oversampling function

2-bit resolution boost
Out of range indicator (ALERT)
INL (typical)
- ±4 LSB (AD7386-4)
- ±1 LSB (AD7387-4)
- ±0.2 LSB (AD7388-4)
High-speed serial interface
Temperature range: −40°C to +125°C
2.5 V internal reference at 10 ppm/°C (maximum)

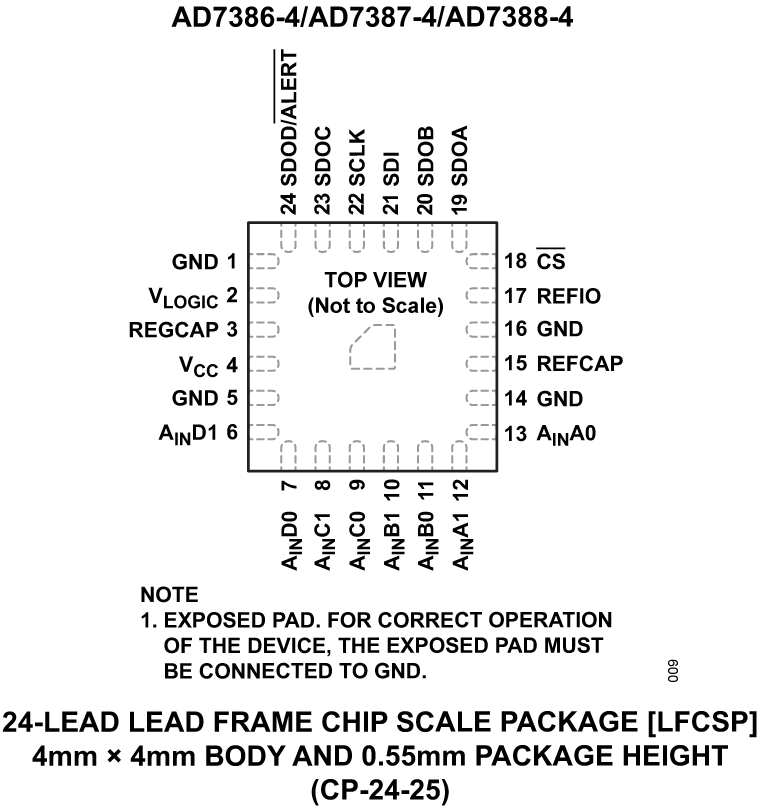

24-lead LFCSP

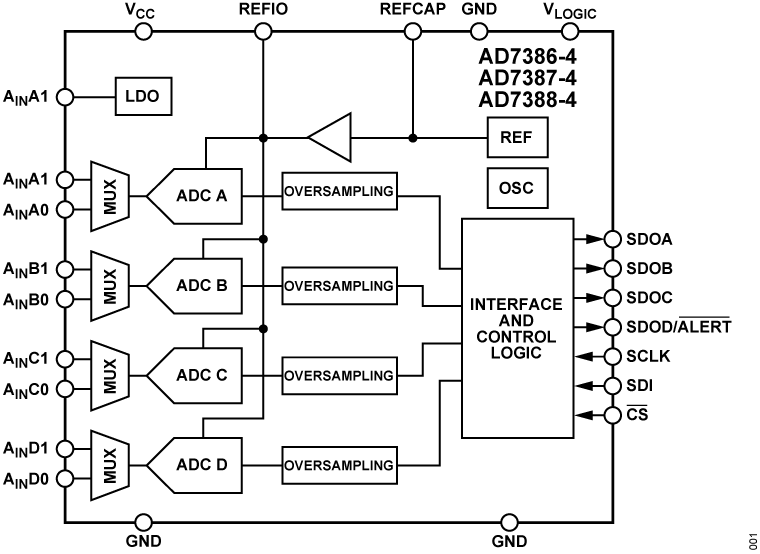

The AD7386-4/AD7387-4/AD7388-4 are 16-bit, 14-bit, and 12-bit compatible, quad, simultaneous sampling, high-speed, successive approximation register (SAR), analog-to-digital converters (ADCs) operating from a 3.0 V to 3.3 V power supply with throughput rates up to 4 MSPS. The single-ended analog input accepts voltage from 0 V to V_REF, and is sampled and converted on the falling edge of CS.

The AD7386-4/AD7387-4/AD7388-4 have on-chip oversampling blocks to improve dynamic range and reduce noise at lower bandwidths. The oversampling can boost up to two bits of added resolution. The REFIO pin can have a reference voltage (V_REF) of 2.5 V to 3.3 V.

The conversion process and data acquisition use standard control inputs, allowing easy interfacing to microprocessors or digital signal processors (DSPs). The conversion result can clock out simultaneously via 4-wire mode for faster throughput or via 1-wire serial mode when slower throughput is allowed. The device is compatible with 1.8 V, 2.5 V, and 3.3 V interfaces using the separate logic supply.

The AD7386-4/AD7387-4/AD7388-4 are available in a 24-lead lead frame chip scale package (LFCSP) and operate over a temperature range of −40°C to +125°C

APPLICATIONS

Motor control position feedback
Motor control current sense
Data acquisition systems
Erbium doped fiber amplifier (EDFA) applications
Traveling wave fault detection
In-phase and quadrature demodulation

Part Models: 3
1ku List Price: Starting From $21.65

Documentation

Data Sheet 1

AD7386-4/AD7387-4/AD7388-4: Single-Ended Input, Quad, Simultaneous Sampling, 16-Bit/14-Bit/12-Bit, SAR ADC Data Sheet (Rev.0) 10/27/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD7387-4BCPZ	24-Lead LFCSP (4mm x 4mm x 0.55mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7387-4BCPZ-RL	24-Lead LFCSP (4mm x 4mm x 0.55mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD7387-4BCPZ-RL7	24-Lead LFCSP (4mm x 4mm x 0.55mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluating the AD7386-4 Family, 4-Channel, Simultaneous Sampling, Successive Approximation ADCs

Buy Now View Details

Features and Benefits

Full featured evaluation board multichannel, simultaneous sampling ADC
On-board reference, reference buffer, and ADC driver
On-board power supplies
Board-compatible, high-speed system demonstration platform (SDP-H1) controller
PC software for control and data analysis

Product Details

The EVAL-AD7386-4FMCZ is a full featured evaluation board that evaluates all features of the AD7386-4 analog-to-digital converters (ADCs). The evaluation board can be controlled by the EVAL-SDPCH1Z via the 160-way system demonstration platform (SDP) connector, J4. The EVAL-SDP-CH1Z board controls the evaluation board through the USB port of a PC using the analysis, control, evaluation (ACE) software, which is available for download from the ACE software page.

Complete specifications for the AD7386-4 is provided in the AD7386-4 data sheet. Consult these specifications in conjunction with this user guide when using the evaluation board. Full details on the EVAL-SDP-CH1Z are available on the SDP-H1 product page. The comprehensive ACE user guide is available on the ACE software page.

The EVAL-AD7386-4FMCZ can evaluate the AD7387-4 and the AD7388-4 by using the AD738x-4 ACE plugin found on the EVALAD7386- 4FMCZ product page. The only difference is the number of SCLKs that clock out the conversion results, which is dependent on the resolution and throughput rate for each generic.

Figure 1 shows the typical setup of the EVAL-AD7386-4FMCZ board. The setup for the EVAL-AD7386-4FMCZ board is the same as the EVAL-AD7380-4FMCZ setup.

Resources

UG-2168: Evaluating the AD7386-4 Family, 4-Channel, Simultaneous Sampling, Successive Approximation ADCs (Rev.0)
10/27/2023
