AD7156

Ultralow Power, 1.8 V, 3 mm × 3 mm, 2-Channel Capacitance Converter

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $1.66
Features
  • Ultralow power
    Power supply voltage: 1.8 V to 3.6 V
    Operation power supply current: 70 μA typical
    Power-down current: 2 μA typical
  • Fast response time
    Conversion time: 10 ms per channel
    Wake-up time from serial interface: 300 μs
  • Adaptive environmental compensation
  • 2 capacitance input channels
    Sensor capacitance (CSENS): 0 pF up to 13 pF
    Sensitivity up to 3 fF
  • 2 modes of operation
    Standalone with fixed settings
    Interfaced to a microcontroller for user-defined settings
  • 2 detection output flags
  • 2-wire serial interface (I2C-compatible)
  • Operating temperature: −40°C to +85°C

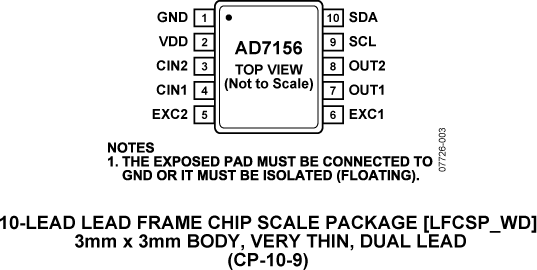

  • 10-lead LFCSP package (3 mm × 3 mm × 0.8 mm)
Additional Details
show more Icon
The AD7156 delivers a complete signal processing solution for capacitive sensors, featuring an ultralow power converter with fast response time.

The AD7156 uses an Analog Devices, Inc., capacitance-to-digital converter (CDC) technology, which combines features important for interfacing to real sensors, such as high input sensitivity and high tolerance of both input parasitic ground capacitance and leakage current.

The integrated adaptive threshold algorithm compensates for any variations in the sensor capacitance due to environmental factors like humidity and temperature or due to changes in the dielectric material over time.

By default, the AD7156 operates in standalone mode using the fixed power-up settings and indicates detection on two digital outputs. Alternatively, the AD7156 can be interfaced to a micro-controller via the serial interface, the internal registers can be programmed with user-defined settings, and the data and status can be read from the part.

The AD7156 operates with a 1.8 V to 3.6 V power supply. It is specified over the temperature range of −40°C to +85°C.

Applications

  • Buttons and switches
  • Proximity sensing
  • Contactless switching
  • Position detection
  • Level detection
  • Portable products
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
Part Models 2
