Features and Benefits
- Capacitance-to-digital converters
- Interfaces to floating sensors
- Resolution down to 0.25 fF (that is, up to 12 ENOB)
- Linearity: 0.05%
- Common-mode (not changing) capacitance up to 5 pF
- Four capacitance ranges selectable per operation mode
- Tolerant of parasitic capacitance to ground up to 50 pF
- Conversion time per channel: 5 ms, 20 ms, 50 ms, and 60 ms
- Internal clock oscillator
- 2-wire serial interface
- 2.7 V to 3.6 V single-supply operation
- 100 μA current consumption
- Operating temperature: −40°C to +85°C

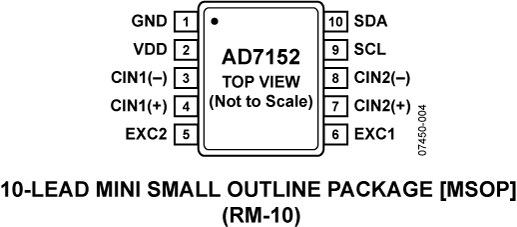

- 10-lead MSOP
- See data sheet for additional features
The AD7152/AD7153 are 12-bit sigma-delta (Σ-Δ) capacitance-to-digital converters (CDCs). The capacitance to be measured is connected directly to the device inputs. The architecture features inherent high resolution (12-bit no missing codes, up to 12-bit effective resolution) and high linearity (±0.05%). The AD7152/ AD7153 have four capacitance input ranges per operation mode, ±0.25 pF to ±2 pF in differential mode and 0.5 pF to 4 pF in single-ended mode.
The AD7152/AD7153 can accept up to 5 pF common-mode capacitance (not changing), which can be balanced by a programmable on-chip, digital-to-capacitance converter (CAPDAC).
The AD7153 has one capacitance input channel, while the AD7152 has two channels. Each channel can be configured as single-ended or differential. The AD7152/AD7153 are designed for floating capacitive sensors.
The AD7152/AD7153 have a 2-wire, I2C-compatible serial interface. Both devices can operate with a single power supply from 2.7 V to 3.6 V. They are specified over the temperature range of −40°C to +85°C and are available in a 10-lead MSOP.
Automotive, industrial, and medical systems for
- Pressure measurement
- Position sensing
- Level sensing
- Humidity sensing
Markets and Technologies
Product Lifecycle Last Time Buy
All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
Evaluation Kits (1)
The EVAL-AD7152EBZ is a fully featured evaluation board for the AD7152. The evaluation board is operated with a PC via a standard USB connection with software provided enabling the user to perform detailed analysis of the CDC's performance. This software includes the technical note describing the operation and set up of the evaluation board.
