AD589

Two-Terminal IC 1.2 V Reference

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 9
1ku List Price Starting From $1.79
Features
  • Superior Replacement for Other 1.2 V References
  • Wide Operating Range: 50 µA to 5 mA
  • Low Power: 60 µW Total PD at 50 µA
  • Low Temperature Coefficient:
    10 ppm/°C Max, 0°C to 70/°C (AD589M)
  • 2-Terminal Zener Operation
  • Low Output Impedance: 0.6 Ω
  • No Frequency Compensation Required
  • Low Cost
  • MIL-STD-883 Compliant Versions Available
Additional Details
show more Icon

The AD589 is a two-terminal, low cost, temperature compensated bandgap voltage reference which provides a fixed 1.23 V output voltage for input currents between 50 µA and 5.0 mA.

The high stability of the AD589 is primarily dependent upon the matching and thermal tracking of the on-chip components. Analog Devices' precision bipolar processing and thin-film technology combine to provide excelent performance at low cost.

Additionally, the active circuit produces an output impedance ten times lower than typical low-TC Zener diodes. This feature allows operation with no external components required to maintain full accuracy under changing load conditions.

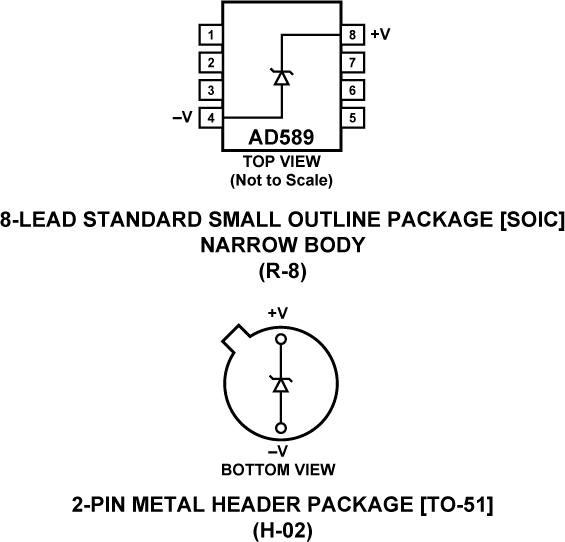

The AD589 is available in seven versions. The AD589J, K, L and M grades are specified for 0°C to +70°C operation, while the S, T, and U grades are rated for the full -55°C to +125°C temperature range. All grades are available in a metal can (H-02A) package. The AD589J is also available in an 8-pin SOIC package.

Part Models 9
1ku List Price Starting From $1.79

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD589JH
  • HTML
  • HTML
AD589JRZ
  • HTML
  • HTML
AD589JRZ-REEL
  • HTML
  • HTML
AD589KH
  • HTML
  • HTML
AD589MH
  • HTML
  • HTML
AD589SH
  • HTML
  • HTML
AD589SH/883B
  • HTML
  • HTML
AD589TH
  • HTML
  • HTML
AD589TH/883B
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 9, 2011

- 11_0050

Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines

AD589JH

PRODUCTION

AD589KH

PRODUCTION

AD589MH

PRODUCTION

AD589SH

PRODUCTION

AD589SH/883B

PRODUCTION

AD589TH

PRODUCTION

AD589TH/883B

PRODUCTION

Nov 9, 2011

- 11_0182

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

AD589JH

PRODUCTION

AD589JRZ

PRODUCTION

AD589JRZ-REEL

PRODUCTION

AD589KH

PRODUCTION

AD589MH

PRODUCTION

AD589SH

PRODUCTION

AD589SH/883B

PRODUCTION

AD589TH

PRODUCTION

AD589TH/883B

PRODUCTION

Sep 9, 2009

- 07_0083

Polyimide Change

Apr 9, 2018

- 16_0026

Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices

AD589SH/883B

PRODUCTION

AD589TH/883B

PRODUCTION

Jun 6, 2012

- 12_0066

Add capacity for Burn In of Hermetic, 883 & QMLQ/Class B devices at TSSI Cavite

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 9, 2011

- 11_0050

arrow down

Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines

AD589JH

PRODUCTION

AD589KH

PRODUCTION

AD589MH

PRODUCTION

AD589SH

PRODUCTION

AD589SH/883B

PRODUCTION

AD589TH

PRODUCTION

AD589TH/883B

PRODUCTION

Nov 9, 2011

- 11_0182

arrow down

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

AD589JH

PRODUCTION

AD589JRZ

PRODUCTION

AD589JRZ-REEL

PRODUCTION

AD589KH

PRODUCTION

AD589MH

PRODUCTION

AD589SH

PRODUCTION

AD589SH/883B

PRODUCTION

AD589TH

PRODUCTION

AD589TH/883B

PRODUCTION

Sep 9, 2009

- 07_0083

arrow down

Polyimide Change

Apr 9, 2018

- 16_0026

arrow down

Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices

AD589SH/883B

PRODUCTION

AD589TH/883B

PRODUCTION

Jun 6, 2012

- 12_0066

arrow down

Add capacity for Burn In of Hermetic, 883 & QMLQ/Class B devices at TSSI Cavite
