AD2S90

Low Cost, Complete 12-Bit Resolver-to-Digital Converter

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $54.58
Features
  • Complete Monolithic Resolver-to-Digital Converter
  • Incremental Encoder Emulation (1024-Line)
  • Absolute Serial Data (12-Bit)
  • Differential Inputs
  • 12-Bit Resolution
  • Industrial Temperature Range
  • 20-Lead PLCC
  • Low Power (50 mW)
Additional Details
show more Icon

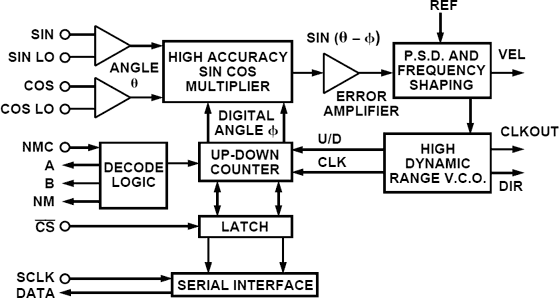

The AD2S90 is a complete 12-bit resolution tracking resolver-to- digital converter. No external components are required to operate the device.

The converter accepts 2 V rms ± 10% input signals in the range 3 kHz-20 kHz on the SIN, COS and REF inputs. A Type II servo loop is employed to track the inputs and convert the input SIN and COS information into a digital representation of the input angle. The bandwidth of the converter is set internally at 1 kHz. The maximum tracking rate is 375 rps at 12-bit resolution.

Angular position output information is available in two forms, absolute serial binary and incremental A quad B.

The absolute serial binary output is 12-bit (1 in 4096). The data output pin is high impedance when Chip Select CS is logic HI. This allows the connection of multiple converters onto a common bus. Absolute angular information in serial pure binary form is accessed by CS followed by the application of an external clock (SCLK) with a maximum rate of 2 MHz.

The encoder emulation outputs A, B and NM continuously produce signals equivalent to a 1024 line encoder.

When decoded this corresponds to 12-bits resolution. Three common north marker pulse widths are selected via a single pin (NMC).

An analog velocity output signal provides a representation of velocity from a rotating resolver shaft traveling in either a clockwise or counterclockwise direction.

The AD2S90 operates on a ±5 V dc ± 5% power supplies and is fabricated on Analog Devices' Linear Compatible CMOS process (LC2MOS). LC2MOS is a mixed technology process that combines precision bipolar circuits with low power CMOS logic circuits.
