Features and Benefits
A2B BUS FEATURES
- Line topology
- Single main node, up to 16 subordinate nodes
- Up to 15 m between nodes and up to 80 m overall cable length
- Communication over distance
- Synchronous data
- Multichannel I2S/TDM to I2S/TDM
- Clock synchronous, phase aligned in all nodes
- Low latency subordinate node to node communication
- Control and status information I2C to I2C
- GPIO over distance
- Synchronous data
- Bus power or local power subordinate nodes
- Configurable with SigmaStudio graphical software tool
- AEC-Q100 qualified for automotive applications
BASELINE A2B TRANSCEIVER FEATURES
- Configurable as A2B bus main node or subordinate node
- Programmable via I2C and SPI interfaces
- 8-bit to 32-bit multichannel I2S/TDM interface
- I2S/TDM/PDM programmable data rate
- Up to 32 upstream and 32 downstream channels
- PDM inputs for 4 high dynamic range microphones on main or subordinate nodes
- Simultaneous reception of I2S data with up to 4 PDM microphones
- Unique ID register for each transceiver
- Support for crossover or straight-through cabling
- Programmable settings to optimize EMC performance
AD243x TRANSCEIVER ENHANCEMENTS
- Mixed Signal
- Up to 50 W A2B bus power
- Increased voltage regulator capacity (up to 100 mA)
- ADC monitoring of supply voltages
- Supports 3.3 V input at VIN in Low Voltage Input (LVI) mode
- High speed SPI (up to 10 Mbps) over distance
- A2B bus self-discovery
- Dedicated hardware reset pin
- I2S/TDM crossbar switch
- Flexible mapping of Tx/Rx TDM channel data to A2B slot
- Support for I2C fast mode plus (1 MHz)
- Support for in cabin LED control using 4 PWM outputs
- 8 GPIO pins with configurable pin mapping
The Automotive Audio Bus (A2B®) provides a multichannel, I2S/TDM link over distances of up to 15 m between nodes. It embeds bidirectional synchronous pulse-code modulation (PCM) data (for example, digital audio), clock, and synchronization signals onto a single unshielded twisted pair (UTP) differential cable. A2B supports a direct point to point connection and allows multiple, daisy-chained nodes at different locations to contribute and/or consume time division multiplexed channel content.
A2B is a single main node, multiple subordinate node system where the transceiver at the host controller is the main node. The main node generates clock, synchronization, and framing for all subordinate nodes. The main A2B transceiver is programmable over a control port (I2C/SPI) for configuration and read back. An extension of the control port protocol is embedded in the A2B data stream. This allows direct access to registers and status information on subordinate transceivers, as well as I2C to I2C, SPI to I2C, or SPI to SPI communication from the host to a peripheral in a subordinate node. SPI to SPI communication between subordinate nodes can be performed directly and does not need to involve the main node.
The transceiver can connect directly to general-purpose digital signal processors (DSPs), field-programmable gate arrays (FPGAs), application specific integrated circuits (ASICs), microphones, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and codecs through a multichannel I2S/TDM interface. It also provides a pulse density modulation (PDM) interface for direct connection of up to four PDM digital microphones.
Finally, the transceiver also supports an A2B bus powering feature, where the main node supplies voltage and current to the subordinate nodes over the same daisy-chained, twisted pair wire cable as used for the communication link. Complete technical specifications are available for the A2B transceiver. Contact your nearest Analog Devices sales office to complete the nondisclosure agreement (NDA) required to receive additional product information.
- Distributed audio systems
- Personal audio zones
- In car communications
- Smart/remote tuner modules
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
A2B Bus Analyzer

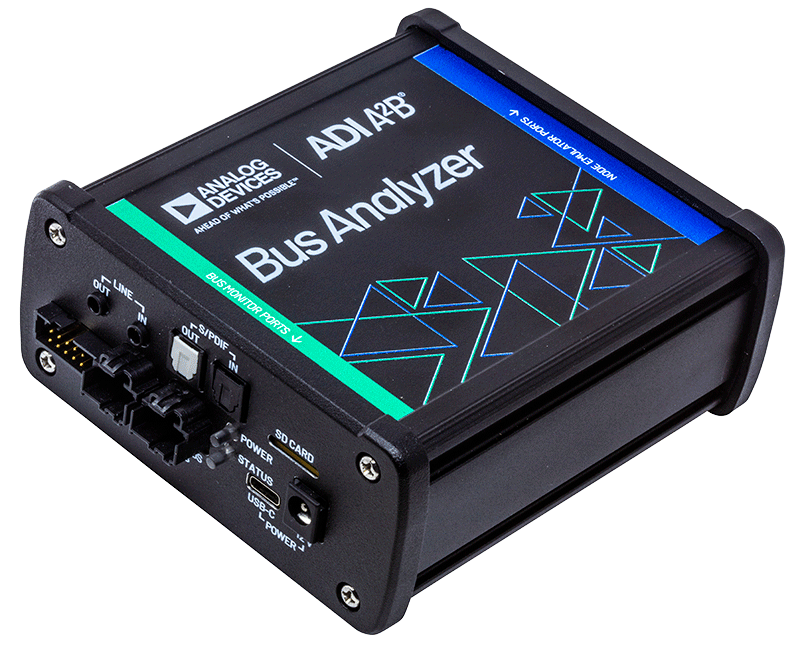

ADI A2B Bus Analyzer is a robust development tool supporting the design and debug of AD242x/3x based A2B networks. It can be configured to act as active bus emulation tool and/or as a passive bus monitor.
The tool consists of the following main components:
- Hardware unit
- A2B Main/Sub node emulation
- Passive bus traffic monitor
- Variety of audio input/output interfaces
- High speed USB Interface for audio and control communication
- GUI application
- Intuitive GUI for device configuration and control
- Capture/playback of Real-time audio streams and bus traffic on PC
- Inject test tones/streams from PC on to the bus for debug
- A2B Network/node management and diagnostics
- Audio streaming over USB using ASIO/ALSA/CoreAudio
- Support for Windows, Linux, MacOS
- Software Development Kit (SDK) to create custom applications
The tool can be used in the following scenarios:
- Engineering – Design & Development
- Test & Validation
- Pre-production Testing
- CE/FCC certification process is underway
Features & Benefits
Key Product Features
- Node Emulator
- AD243x — Main/Sub node — Standard/High Power
- AD242x — Main/Sub node
- A2B Bus Traffic Monitor
- Simultaneous Monitor and Emulator operation
- Selectable audio interface
- Analog I/O
- Digital SPDIF I/O
- USB2.0 Audio Class
- Streaming from/to PC
- Intuitive Graphical User Interface
- Supported on Windows, Linux, MacOS
- Software Development Kit (SDK)
- Powerful, multi-function HW
- Supports Rapid development
- HW locked license
- Software push notifications
- Seamless integration to SigmaStudio+
- Fully compatible with SigmaStudio
Contact your nearest Analog Devices sales office to complete the Non-Disclosure Agreement (NDA) required to receive additional product information. For technical support, send email to email@example.com. Additional support is available from your Analog Devices local sales.
