Features and Benefits

  • 5 V 3-Channel Audio DAC System
  • Digital Audio Output (2-Channel or 6-Channel Packed Mode)
  • Accepts Sample Rates up to 48 kHz
  • Dual Dynamic Processor with Arbitrary Input/Output
  • 7 Biquad Filter Sections per Channel
  • Curve and Adjustable Time Constants
  • 0 ms to 6 ms Variable Delay/Channel for Speaker Alignment
  • See data sheet for additional features

Product Details

The AD1953 is a complete, 26-bit, single-chip, 3-channel digital audio playback system with built-in DSP functionality. Key features include: 3 channels of digital audio, 6-channel TDM output mode, a 7-band, 48-bit stereo equalizer, delays for loudspeaker location adjustment, Phat Stereo spatial enhancement, and a dual-band, professional-quality dynamics processor. Its three DACs achieve 112 dB signal-to-noise ratio (SNR) at 48 kHz. Its dynamic processing features include:

  • Finely-tuned bass boost to enhance low frequencies for small loudspeakers
  • Algorithms that virtually increase loudness by removing distortion at high volumes
  • Midnight mode which automatically reduces loudness in high-volume instances (e.g., sudden loud scenes on DVDs)
  • Low-level expansion to lift low-volume signals above road noise (for car stereos)

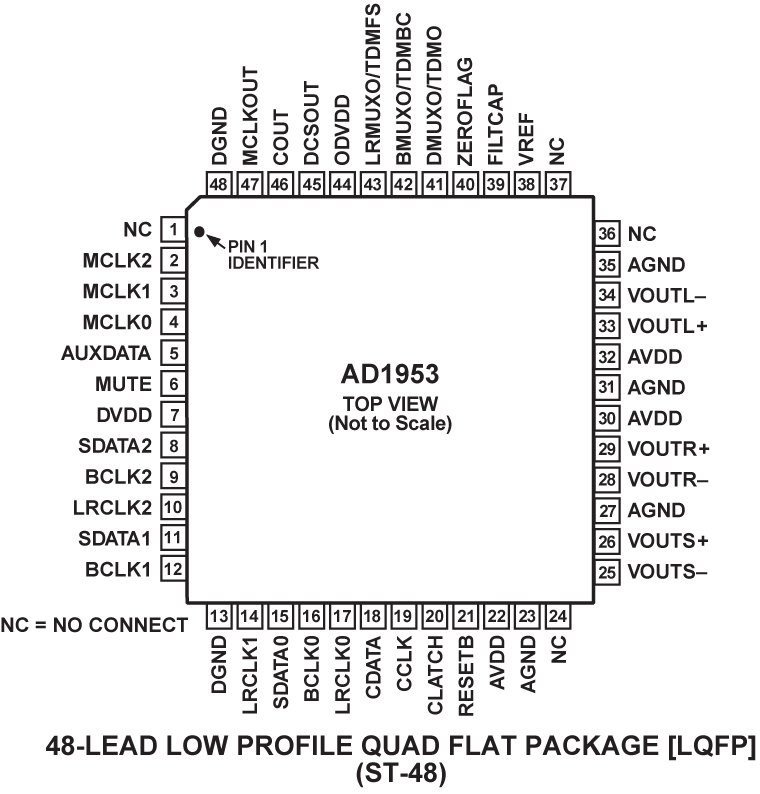

The AD1953 SigmaDSP Digital Audio Processor is available in a 48-pin TQFP package and is rated for the extended −40°C to +105°C temperature range. The AD1953 is sampling now; production begins Fall 2002. Prices begin at $5.88 in 10,000-piece quantities.



  • 2.0/2.1 Channel Audio Systems (2 Main Channels Plus Subwoofer)
  • Multichannel Automotive Sound Systems
  • Multimedia Audio
  • Mini Component Stereo
  • Home Theater Systems (AC-3 Postprocessor)
  • Musical Instruments
  • In-Seat Sound Systems (Aircraft, Motor Coaches)

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.
