Overview

Features and Benefits

  • PLL generated or direct master clock
  • Low EMI design
  • DAC with 110 dB dynamic range and SNR
  • −96 dB THD + N
  • 3.3 V single supply
  • Tolerance for 5 V logic inputs
  • Supports 24 bits and 8 kHz to 192 kHz sample rates
  • Differential DAC output
  • Log volume control with autoramp function
  • SPI® controllable for flexibility
  • Software-controllable clickless mute
  • See data sheet for additional features

Product Details

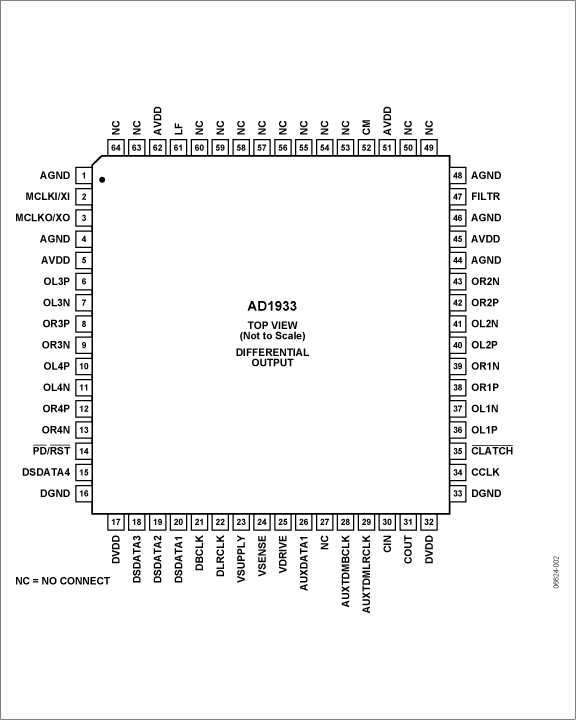

The AD1933 is a high performance, single chip that provides eight digital-to-analog converters (DACs) with differential output using the Analog Devices, Inc., patented multibit sigma- delta (Σ-Δ) architecture. An SPI port is included, allowing a microcontroller to adjust volume and many other parameters. The AD1933 operates from 3.3 V digital and analog supplies. The AD1933 is available in a 64-lead (differential output) LQFP. Other members of this family include a single-ended DAC output and I2C® control port version.

The AD1933 is designed for low EMI. This consideration is apparent in both the system and circuit design architectures. By using the on-board PLL to derive the master clock from the LR clock or from an external crystal, the AD1933 eliminates the need for a separate high frequency master clock and can also be used with a suppressed bit clock. The DACs are designed using the latest Analog Devices continuous time architectures to further minimize EMI. By using 3.3 V supplies, power consumption is minimized, further reducing emissions.

Applications:

  • Automotive audio systems
  • Home Theater Systems
  • Set-top boxes
  • Digital audio effects processors
  • Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

    Tools & Simulations

    IBIS Models

    AD1938 IBIS Model

    Covers the AD1928, AD1933/34/38/39, AD1974 and the ADAU1328.

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    AD1933WBSTZ Material Declaration Reliability Data 64-Lead LQFP (10mm x 10mm)
    AD1933WBSTZ-RL Material Declaration Reliability Data 64-Lead LQFP (10mm x 10mm)
    AD1933YSTZ Material Declaration Reliability Data 64-Lead LQFP (10mm x 10mm)
    AD1933YSTZ-RL Material Declaration Reliability Data 64-Lead LQFP (10mm x 10mm)
