Overview
Features and Benefits
- 5 V multichannel audio system
- Accepts 16-/18-/20-/24-bit data
- Supports 24-bit and 96 kHz sample rate
- Multibit Σ-∆ modulators with data directed scrambling
- Differential output for optimum performance
- ADCs: –92 dB THD + N, 105 dB SNR and dynamic range
- DACs: –95 dB THD + N, 108 dB SNR and dynamic range
- On-chip volume control with "auto-ramp" function
-
See datasheet for additional features
Product Details

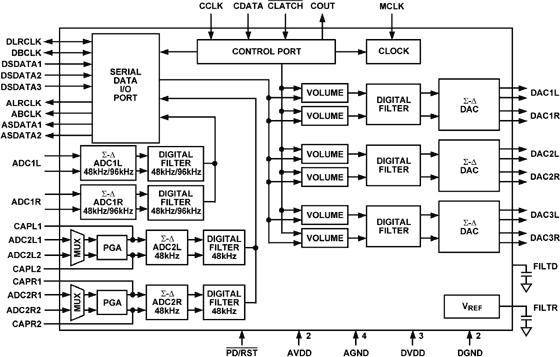

The AD1836A is a high performance, single-chip codec that provides three stereo DACs and two stereo ADCs using ADI’s patented multibit Σ-Δ architecture. An SPI® port is included, allowing a microcontroller to adjust volume and many other parameters. The AD1836A operates from a 5 V supply, with provision for a separate output supply to interface with low voltage external circuitry. The AD1836A is available in a 52-lead MQFP (PQFP) package.
APPLICATIONS
- Home theater systems
- Automotive audio systems
- DVD recorders
- Set-top boxes
- Digital audio effects processors
Product Categories
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
Evaluation Kits (1)
Documentation & Resources
Software & Systems Requirements
Device Drivers
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD1836AASZ | Material Declaration | Reliability Data | 52-Lead MQFP (13.2mm x 10mm) | |
| AD1836AASZRL | Material Declaration | Reliability Data | 52-Lead MQFP (13.2mm x 10mm) | |
| AD1836ACSZ | Material Declaration | Reliability Data | 52-Lead MQFP (13.2mm x 10mm) | |
| Wafer Fabrication Data |
