AD10677

16 Bit, 65 MSPS A/D Converter

Show More showmore-icon

alert : Obsolete tooltip
alert : Obsolete tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

Features
  • 65 MSPS Guaranteed Sample Rate
  • 80dBFS Signal-to-Noise Ratio
  • Transformer Coupled Analog Input
  • Single PECL Clock Source
  • Digital Outputs
    True Binary Format
    3.3 V and 5 V CMOS Compatible
Additional Details
show more Icon

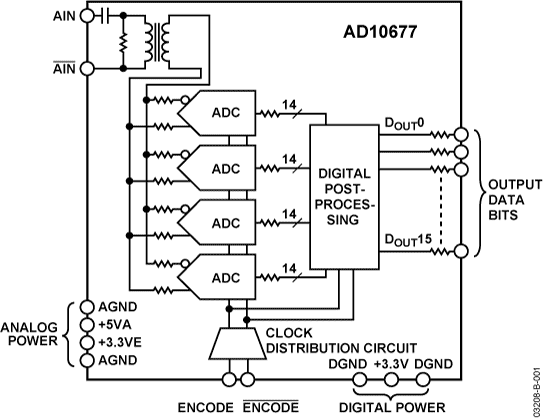

The AD10677 is a 16-bit, high performance, analog-to-digital converter for applications that demand increased SNR levels. Exceptional noise performance and a typical signal-to-noise ratio of 80dB is obtained by digitally post processing the outputs of four ADCs. Only a single analog input and PECL sampling clock are required as well as 3.3 V and 5 V power supplies.

The AD10677 is assembled using a 0.062" thick laminate board with three sets of connector interface pads to accommodate analog and digital isolation. Analog Devices recommends using the following connector from Samtec: FSI-110-03-G-D-AD-K-TR. The overall card fits a 2.2" x 2.8" PCB specified from 0°C to +70°C.

Applications
  • Low Signature Radar
  • Medical Imaging
  • Communications Instrumentation
  • Instrumentation
  • Antenna Array Processing
    • Show More Arrow image
