MAX9295D

RECOMMENDED FOR NEW DESIGNS

GMSL2 Dual CSI-2 Serializer with GMSL1 Compatibility

Data Sheet (Rev. 6) Product Selection Table

Part Models: 4
1ku List Price: Starting From $9.96

Viewing:

Overview

Dual 4-Lane MIPI CSI-2 v1.3 Ports
- MIPI D-PHY v1.2 at 80Mbps
- 2.5Gbps per Lane
- 4-Channel CSI-2 Virtual-Channel Support
- Support for RAW8/10/12/14/16/20, RGB565/666/888 and YUV8-/10-Bit Data types
- CSI-2 Inputs in GMSL2 Mode Accept Cameras with Different Video Timing and Resolution
- CSI-2 ECC and Checksum Error Detection and Flagging
- CSI-2 Lane Reassignment and Polarity Flip
Selectable GMSL2 at 3/6Gbps or Backward-Compatible GMSL1 Mode
- Operates up to 4.5Gbps with GMSL2 Deserializers in GMSL1 Mode
- 187.5Mbps Reverse Link for Reduced-Size Power-over-Cable (PoC) Filter
- Forward- and Reverse-Channel PRBS for BER Testing of Serial Link
- Reverse-Channel Eye-Opening Monitor for Continuous Link-Margin Diagnosis
- Reverse-Channel Adaptive Equalization Allows Coax Cable Longer than 15m with Multiple Inline Connectors
- Crosspoint Switch Remaps Input to Any Desired Deserializer Output Order
ASIL-Relevant Functional Safety Features (GMSL2)
- ASIL-B Compliant
- 16-Bit CRC Protection of Side-Channel Data (I²C, UART, SPI, GPIO) with Retransmission upon Error Detection
- Optional 32-Bit CRC Protection of Video-Line Data
- Video Watermark Insertion and Detection

Concurrent Side Channel for Device Configuration and Communication with Peripherals
- GMSL2: I²C/UART, Dual Pass-Through I²C/UART, SPI, GPIO and Register-Programmable GPIO
- GMSL1: I²C/UART, Tunneled GPI-GPO and CNTL Links, and Register-Programmable GPIO
- Four Hardware-Selectable Device Addresses
Three Internal and Three External Supply Voltage Monitors
50Ω Coax Cable or 100Ω STP
Programmable Spread Spectrum for EMI Reduction
7mm x 7mm TQFN Package with Exposed Pad and Available Wettable Flanks
-40°C to +105°C Operating Temperature
AEC-Q100 Grade 2

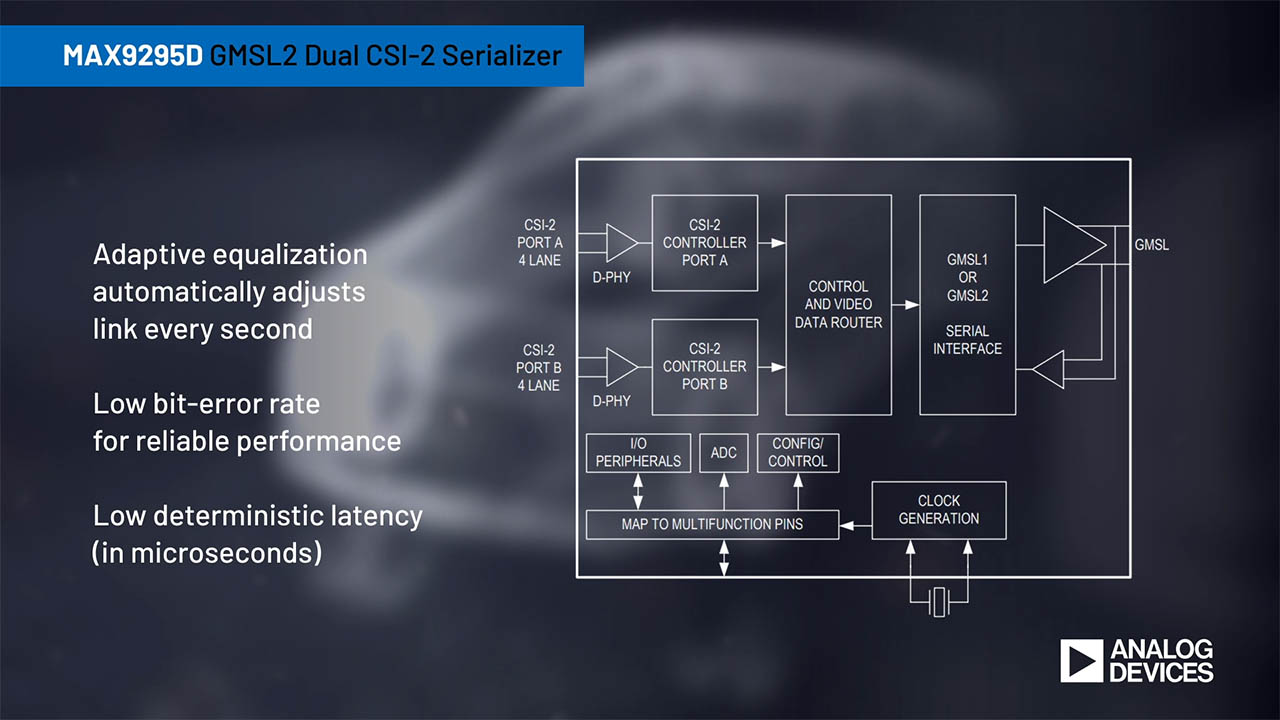

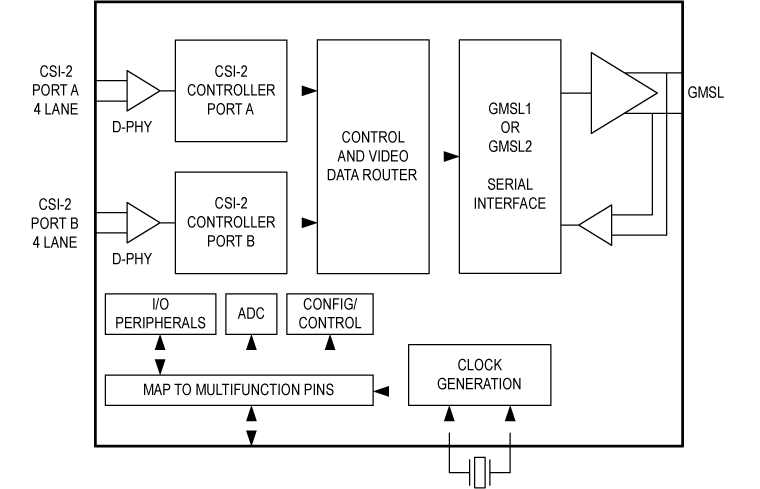

The MAX9295D converts single- or dual-port MIPI CSI-2 data streams to GMSL2™ or GMSL1™ while sending and receiving control-channel data, enabling full-duplex single-wire transmission of forward video and bidirectional control data over cables in excess of 15m in length. In GMSL2 mode, the device operates at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction. In GMSL1 mode, the MAX9295D can be paired with first-generation 3.12Gbps or 1.5Gbps GMSL1 deserializers or operate up to 4.5Gbps with GMSL2 deserializers configured for GMSL1 mode. Operation is specified over the automotive temperature range of -40°C to +105°C and the device is AEC-Q100 Grade 2 qualified. Cable can be coaxial or shielded twisted pair (STP).

Table 1. Typical Maximum Cable Length vs. Attenuation
	3.2mm Ø 50Ω Coax, Foam Dielectric	2.7mm Ø 50Ω Coax, Solid Dielectric	100Ω Shielded-Twisted Pair, AWG26
Attenuation at 3GHz (Typ, Room Temp)	0.9dB/m	1.6dB/m	1.8dB/m
Attenuation at 3GHz (Max, Aged, +105°C)	1.1dB/m	2.0dB/m	2.2dB/m
GMSL Fwd/Rev Data Rate	Typical Maximum Cable Length at +105°C
3Gbps/187.5Mbps	20m	10m	11m
6Gbps/187.5Mbps	15m	9m	8m

Applications

Co-located sensors
Stereo camera
Side mirror
Radar
Lidar

Part Models: 4
1ku List Price: Starting From $9.96

Documentation

Data Sheet 1

MAX9295D: GMSL2 Dual CSI-2 Serializer with GMSL1 Compatibility Data Sheet (Rev.6) 04/04/2024
- Errata for MAX9295D (Rev.1)

User Guide 4

Public GMSL2 Hardware Design and Validation Guide (Rev.3) 09/17/2025

MAX9295D User Guide (Rev.0) 04/09/2024

GMSL2 General User Guide (Rev.1) 08/14/2024

GMSL2 Channel Specification User Guide (Rev.1) 10/17/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX9295DGTM/V+	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX9295DGTM/V+T	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX9295DGTM/VY+	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX9295DGTM/VY+T	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 20, 2024 - 2451 ASSEMBLY
		pcn_2451
MAX9295DGTM/V+	PRODUCTION
MAX9295DGTM/V+T	PRODUCTION
Apr 10, 2020 - 1950 ASSEMBLY
		pcn_1950
MAX9295DGTM/V+	PRODUCTION
MAX9295DGTM/V+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Switching Regulators & Controllers 4
MAX20049	RECOMMENDED FOR NEW DESIGNS	Flexible, Compact Quad Power Supply with 2.2MHz, 1A Buck Converters and Dual LDOs for Automotive Camera Modules
MAX25249	RECOMMENDED FOR NEW DESIGNS	Four-Output Mini PMICs for Camera Applications
MAX25250	RECOMMENDED FOR NEW DESIGNS	Four Output Mini PMIC for Camera Applications
MAX25252	RECOMMENDED FOR NEW DESIGNS	Five-Output ASIL B PMIC with Accurate Temperature Monitoring for Next-Generation Camera Sensors

Tools & Simulations

Software Development 2

IBIS Model 1

MAX9295D IBIS model

Evaluation Kits

MAX9295D Coax/HSD Evaluation Kit

Buy Now View Details

Features and Benefits

GMSL Serializer Accepts MIPI CSI v1.3 DPHY v1.2 Input
- Converts to GMSL1/GMSL2 Serial Data Through Coaxial FAKRA or Differential Twisted Quad HSD Connectors
- Accepts CSI Input Data (Dual Port, Up to Four Lanes Per Port)
Windows 10-Compatible Software Support
Powerful, Simple-to-Use GUI for Comprehensive Device Feature Evaluation
USB-Control Interface (Cable Included)
Board Powered by USB, 12V Wall Adapter, External Power Supply, or Power-over-Coax (PoC) Cable
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX9295D Coax/HSD evaluation kit (EV kit) provides a reliable platform for evaluating Maxim’s MAX9295D GMSL2/GMSL1 CSI serializer using a standard FAKRA coax cable or HSD-STQ cable. The serializer device supports high-bandwidth, gigabit multimedia serial links (GMSL2/GMSL1) and offers spread spectrum and full-duplex control channel features. The EV kit includes a simple-to-use Windows 10-compatible graphical user interface (GUI) for exercising device features.

For complete GMSL evaluation using a standard FAKRA coax cable or HSD-STQ cable, order the MAX9295D Coax/HSD EV kit along with a deserializer board.

For a detailed look at all GMSL2 features, including information on how to use the parts, refer to the GMSL2 User’s Guide.
