MAX828

PRODUCTION

MAX828

Switched-Capacitor Voltage Inverters

Inductorless Power Supply for Pager LCD

PRODUCTION

MAX828, MAX829: Typical Operating Circuit slide

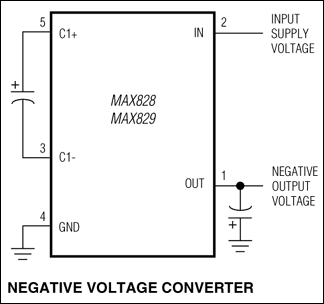

MAX828, MAX829: Typical Operating Circuit
