MAX6604

PRODUCTION

Precision Temperature Monitor for DDR Memory Modules

Allows high-accuracy (±1°C) temperature readings of memory modules.

Data Sheet (Rev. 3) Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.26

Viewing:

Overview

JEDEC Compliant
±1°C Temperature-Monitoring Accuracy
Overtemperature Interrupt with Programmable Threshold
+2.7V to +3.6V Operating Voltage Range
SMBus/I²C-Compatible Interface
300µA Typical Operating Current
3µA Typical Shutdown Current
-20°C to +125°C Operating Temperature Range
8-Pin TSSOP and 8-Pin TDFN (2mm x 3mm) Packages

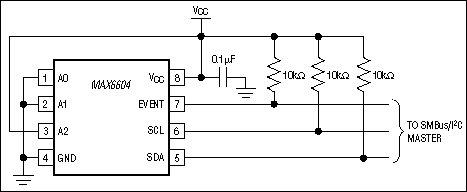

The MAX6604 high-precision temperature sensor is designed for thermal monitoring functions in DDR memory modules. The device is readable and programmable through the 2-wire SMBus/I²C-compatible interface. Three address inputs set the bus address for the temperature sensor to provide up to eight devices on one bus.

The internal thermal sensor continuously monitors the temperature and updates the temperature data eight times per second. The master can read the temperature data at any time. Since the thermal sensor is located on the memory module, temperature data recorded accurately represents the temperature of the components on the module. Consequently, the MAX6604 provides a much more accurate measurement of module temperature than techniques involving temperature sensors on the motherboard. In addition, the device responds more quickly to temperature changes on the module than a motherboard sensor.

The MAX6604 also features an interrupt-output indicator for temperature-threshold monitoring. The threshold levels are programmable through the digital interface.

The MAX6604 operates from -20°C to +125°C, and is available in JEDEC-standard 8-pin TSSOP and 8-pin TDFN (2mm x 3mm) packages.

Applications

Desktop Computers
Memory Modules
Networking Equipment
Notebook Computers
Workstations

Part Models: 4
1ku List Price: Starting From $1.26

Documentation

Data Sheet 1

MAX6604: Precision Temperature Monitor for DDR Memory Modules Data Sheet (Rev.3) 10/18/2011

Reliability Data 1

MAX6604 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX6604AAHA+	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6604AAHA+T	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6604AATA+	8-LFCSP-2X3X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX6604AATA+T	8-LFCSP-2X3X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

IBIS Model 1

MAX6604 IBIS Model

Evaluation Kits

Evaluation Kit for the MAX6604

Buy Now View Details

Features and Benefits

Windows 2000/XP- and Windows Vista (32-Bit)-Compatible Software
USB-PC Connection (Cable Included)
USB Powered
Lead(Pb)-Free and RoHS Compliant
5-Pin Signal Header
SMBus™/I²C Interface Terminals
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX6604 evaluation kit (EV kit) provides a proven design to evaluate the MAX6604 precision temperature monitor for DDR memory modules. The EV kit also includes Windows^® 2000/XP- and Windows Vista^®-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX6604.

The MAX6604 EV kit PCB comes with a MAX6604ATA+ installed.
