MAX33042E

RECOMMENDED FOR NEW DESIGNS

+5V, 4Mbps CAN Transceiver with ±40V Fault Protection, ±25V CMR, and ±40kV ESD in 8-Pin SOT23

Industries First 5V CAN with +/-40kV ESD in a SOT23 Package and +/-25V of CMR

Data Sheet (Rev. 2)

Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.05

Viewing:

Overview

Integrated Protection Increases Robustness

Increased Protection on CANH and CANL
- ±40V Fault Tolerant
- ±40kV ESD HBM Protection
- ±12kV Contact and ±15kV Air-Gap ESD (ISO 10605, IEC 61000-4-2) Protection
- ±25V Extended Common-Mode Input Range (CMR)
- Short-Circuit Protection

Transmitter-Dominant Timeout Prevents Lockup
Thermal Shutdown

Provides Flexible Design Options

Slow Slew Rate to Minimize EMI
Low-Current Standby Mode
Shutdown Pin to Save Power

Small Package Option to Save PCB Area

8-Pin SOT23

High-Speed Operation of up to 4Mbps

Operating Temperature Range of -40°C to +125°C

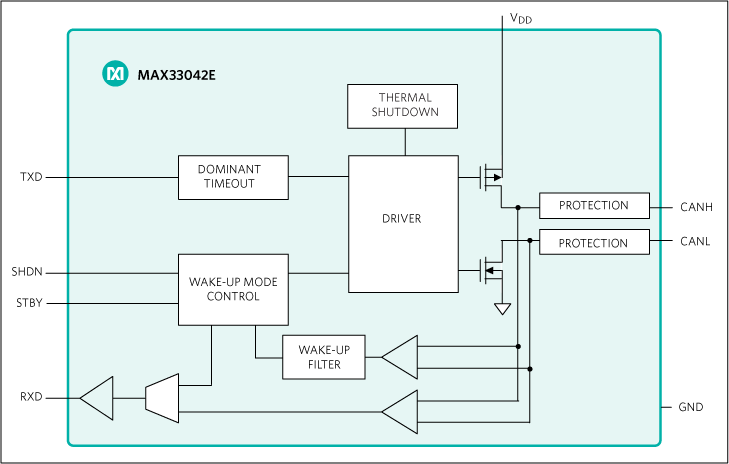

The MAX33042E is a +5V CAN transceiver with integrated protection for industrial applications. This device has extended ±40V fault protection for equipment where overvoltage protection is required. It also incorporates high ±40kV ESD Human Body Model (HBM) protection and an input common-mode range (CMR) of ±25V, exceeding the ISO 11898-2 CAN standard of -2V to +7V. This makes it well suited for applications where there is moderate electrical noise that can influence the ground levels between two nodes or systems.

This device operates at a high-speed CAN data rate, allowing up to 4Mbps on short distance networks. Maximum speed on large networks may be limited by the number of nodes, the type of cabling used, stub length, and other factors. The MAX33042E includes a dominant timeout to prevent bus lockup caused by controller error or by a fault on the TXD input. When the TXD remains in the dominant state (low) for longer than tDOM, the driver is switched to the recessive state, releasing the bus and allowing other nodes to communicate.

The transceiver features a STBY pin for three modes of operation; standby mode for low current consumption, normal high-speed mode, or a slow slew rate mode when an external 26.1kΩ resistor is connected between ground and the STBY pin. A shutdown pin enables the device to further save power consumption where the transmitter and receiver are turned off.

The MAX33042E is available in 8-pin SOT23 and 8-pin SOIC packages. Both packages operate over the -40°C to +125°C temperature range.

Applications

Building Automation
Industrial Equipment
Instrumentation
Motor Control

Part Models: 4
1ku List Price: Starting From $1.05

Documentation

Data Sheet 1

MAX33042E: +5V, 4Mbps CAN Transceiver with ±40V Fault Protection, ±25V CMR, and ±40kV ESD in 8-Pin SOT23 Data Sheet (Rev.2) 04/14/2022
- Open Interactive Page

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX33042EAKA+	SOT_23	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX33042EAKA+T	SOT_23	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX33042EASA+	SOIC_N	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX33042EASA+T	SOIC_N	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

IBIS Model 1

MAX33042E IBIS Model

Evaluation Kits

Evaluation Kit for the MAX33042E

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX33042E
I/O Interface Compatibility from 1.71V to 5.5V
Proven PCB Layout
Mbed™/Arduino^® Platform Compatible
Fully Assembled and Tested

Product Details

The MAX33042E shield is a fully assembled and tested printed circuit board (PCB) that demonstrates the functionality of the MAX33042E controller area network (CAN) transceiver with ±40V fault protection, extended ±25V common-mode input range, and ±40kV ESD human body model (HBM). The shield features a digital isolator, which is used as a level translator between the CAN transceiver and the controller interface.
