MAX16170

High-Voltage Ideal Diode Controller with Integrated CSA

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price
price unavailable
Features
  • AEC-Q100 Qualified for Automotive Applications
  • 3V to 65V Operating Voltage Range
    • Supports 12V/24V Battery Systems
  • −42V to +76V Input Protection Range
    • Wider Transients Immunity
  • High-Side CSA
    • Enables System Power-Level Measurement
  • Output Sensing
    • Enables Fast Fault Recovery
  • 30kHz Active Rectification
    • Facilitates System Level Testing Per Automotive Standard
  • Support ORing Application
  • Robust Fault-Recovery Mode
  • 5μA Shutdown Mode Current
    • Extends Battery Life
  • Resistor-Adjustable OCP Threshold
    • Adds Design Flexibility
  • 1mA (min) Sleep Mode Current Output
    • Supports Standby Mode of Operation
  • FETOK/FLT Outputs
    • Enhance System Diagnostics
Additional Details
show more Icon

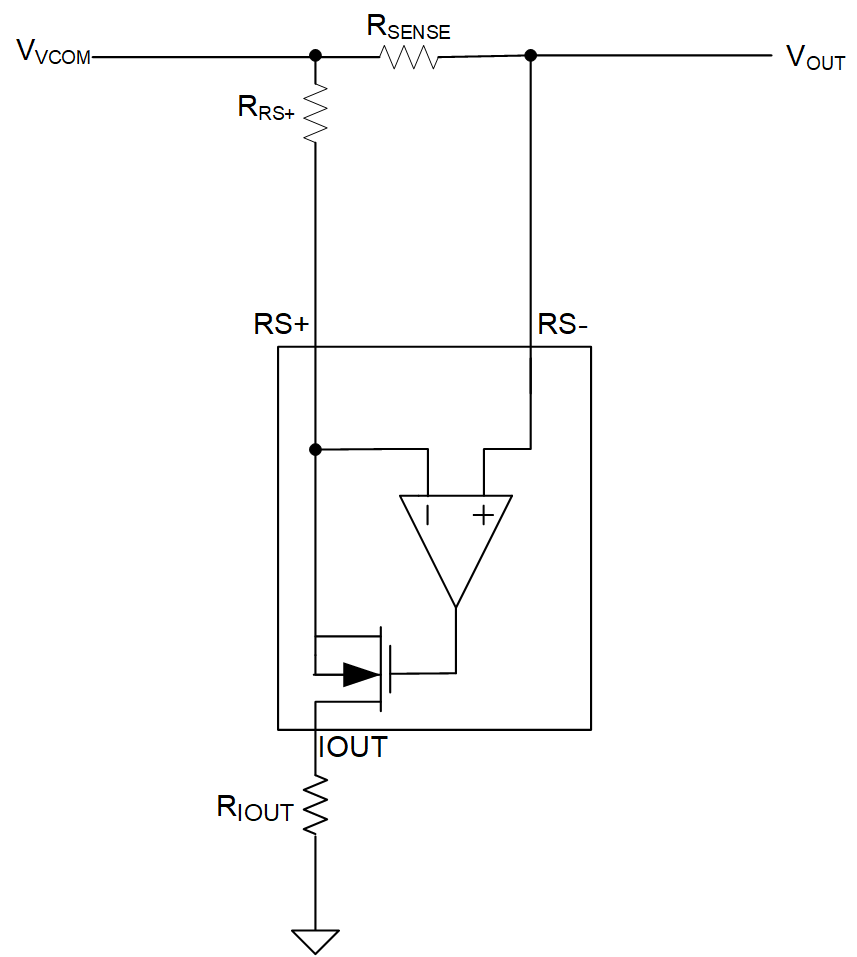

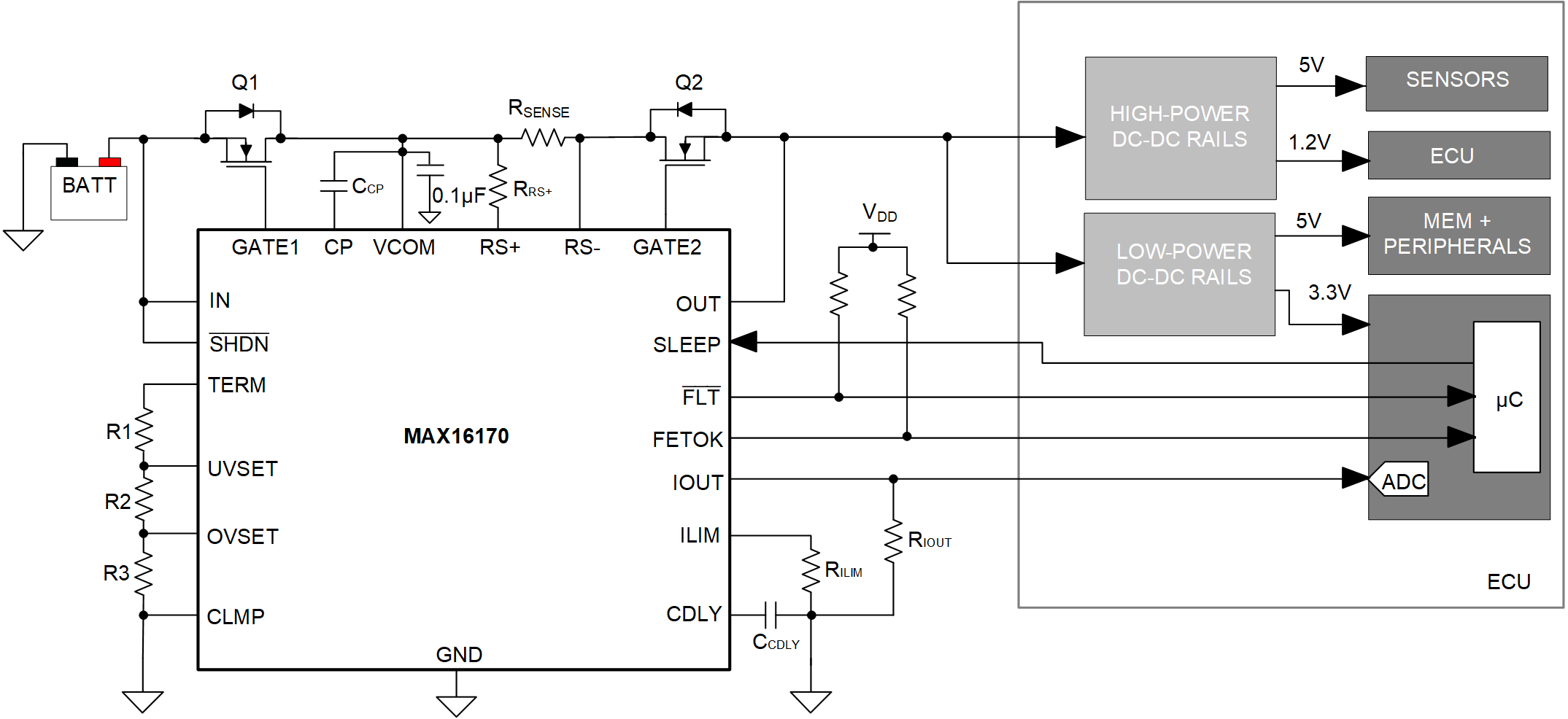

The MAX16170, a high-voltage ideal diode controller, offers full system-level protections for automotive applications. The MAX16170 is designed to enhance system safety, reliability, and performance with added diagnostics, robust fault-recovery mode, and a high-side, integrated current-sense amplifier (CSA). The MAX16170 features dual-gate-driver topology that supports common-drain configuration and protects systems against reverse voltage, input overvoltage (OV), undervoltage (UV), overcurrent, and thermal fault conditions. During power-up, the device monitors the health of the external power metal-oxide semiconductor field effect transistors (MOSFETs) for open or short-circuit conditions and asserts an open-drain output (FETOK) when one or both power MOSFETs are damaged. Additionally, the device offers an open-drain fault output (FLT) that asserts low when there is a fault condition.

During normal operation, the MAX16170 regulates the voltage drop across the drain-to-source of MOSFET (Q1) to 10mV to block DC flow to the battery in reverse voltage fault condition. A resistor from a low-voltage input (ILIM) to ground sets the overcurrent threshold.

During sleep mode of operation, the device consumes only 5uA (typ) while delivering 1mA (min) of current to the load to support stand-by system operation. In shutdown mode, the charge pump is disabled, and the OV and UV resistive dividers are disconnected from the battery through the TERM switch to lower the shutdown supply current to 3μA (typ).

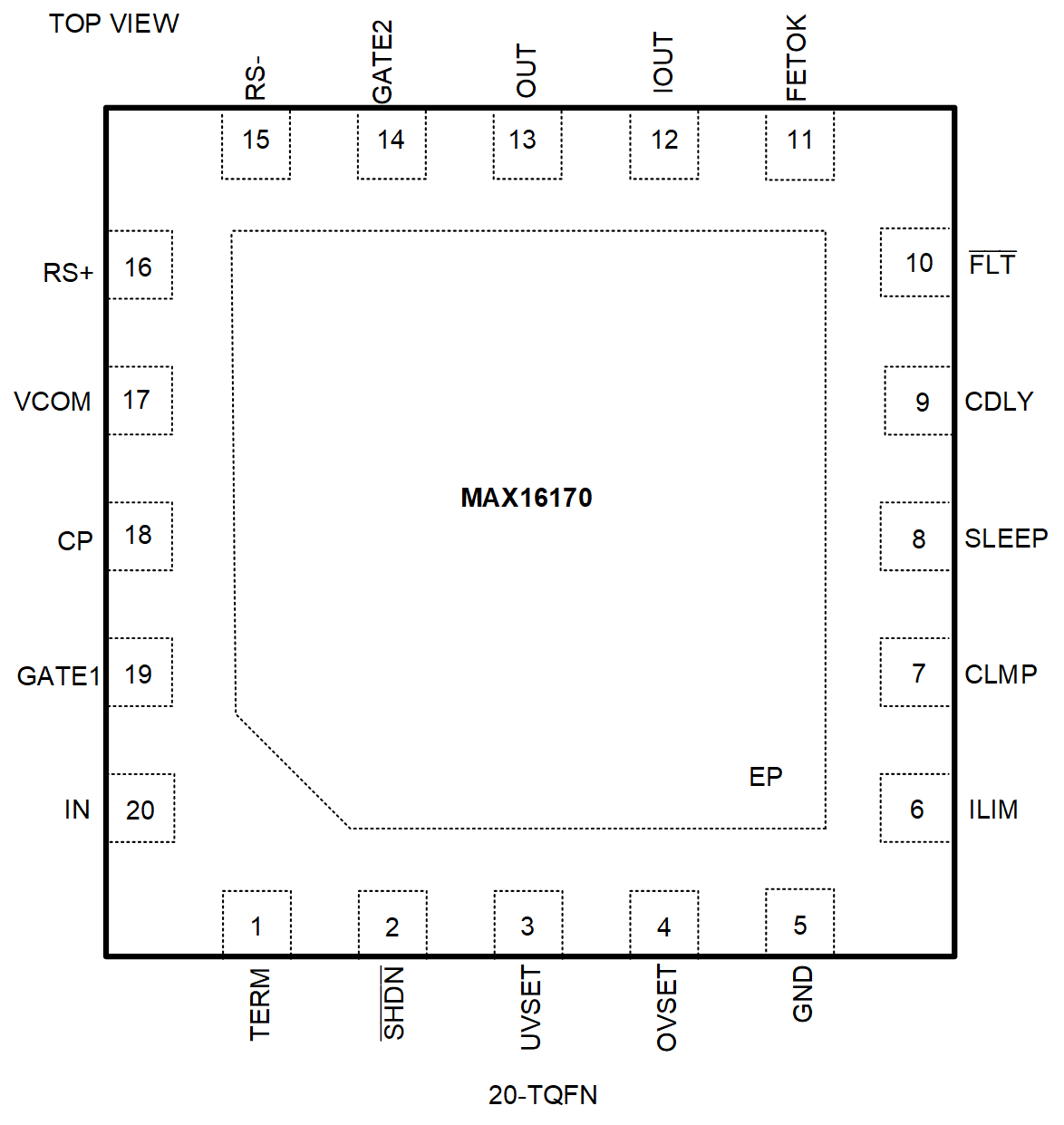

The MAX16170 is available in a 4mm x 4mm x 0.75mm, 20-pin, side-wettable, TQFN package with an exposed pad and operates over the automotive tempe raturerange of −40°C to +125°C.

APPLICATIONS

  • Automotive Power Systems
  • Network/Telecom Power Systems
  • RAID Systems
  • Servers
  • PoE Systems
Part Models 2
1ku List Price
price unavailable

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX16170ATP/VY+
  • HTML
  • HTML
MAX16170ATP/VY+T
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 1

reference details image

MAX16170EVKIT

Evaluation Kit for MAX16170

zoom

MAX16170EVKIT

Evaluation Kit for MAX16170

Evaluation Kit for MAX16170

Features and Benefits

  • -42V to +76V Input Protection
  • +3V to +65V Operating Voltage Range
  • Proven 2-Layer 2oz Copper Printed circuit board (PCB)Layout
  • PCB Pads for Optional Transient Voltage Suppressor(TVS) Diodes
  • Automotive Temperature Range: -40°C and +125°C
  • Fully Assembled and Tested

Product Detail

The MAX16170 evaluation kit (EV kit) evaluates the MAX16170, an automotive protection IC with up to 30kHz active rectification in a 20-pin thin quad-flat no-leads (TQFN) package. It has several test points for device evaluation. The EV kit is fully assembled and tested over the automotive temperature range of -40°C and +125°C, and is available with the MAX16170_TP/VY+.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
