LTC4373

RECOMMENDED FOR NEW DESIGNS

Low Quiescent Current Ideal Diode Controller

Data Sheet (Rev. A) Product Selection Table

Part Models: 12
1ku List Price: Starting From $2.51

Viewing:

Overview

Reduces Power Dissipation by Replacing a Power Schottky Diode
Low Quiescent Current: 5μA Operating
Wide Operating Voltage Range: 2.5V to 80V
Reverse Supply Protection to –28V
No TVS Input Clamps Required

High Side External N-Channel MOSFET Drive
Drives Back-to-Back MOSFETs for Inrush Control and Load Switching
Shutdown Input for ON/OFF Control
Fast Reverse Current Turn-Off within 1.5μs
8-Lead MSOP and 3mm × 3mm DFN Packages

The LTC4372/LTC4373 are positive high voltage ideal diode controllers that drive an external N-channel MOSFET to replace a Schottky diode. They control the forward voltage drop across the MOSFET to ensure current delivery or current transfer from one path to the other even at light loads.

A 5μA operating current achieves high efficiency for intermittent load applications or always-on backup power supplies. If a power source fails or is shorted, a fast turn-off minimizes reverse current transients. The LTC4372/LTC4373 control back-to-back N-channel MOSFETs for inrush current control and load switching.

The LTC4372’s SHDN pin keeps the MOSFET off and reduces the quiescent current to 3.5μA. The LTC4373 has a UV pin for undervoltage monitoring while the UVOUT pin provides hysteresis adjustment and status information. During undervoltage, the back-to-back MOSFETs are cut off and quiescent current reduces to 0.5μA.

APPLICATIONS

Automotive Battery Protection
Redundant Power Supplies
Portable Instrumentation
Solar Powered Systems
Energy Harvesting Applications
Supply Holdup

Part Models: 12
1ku List Price: Starting From $2.51

Documentation

Data Sheet 1

LTC4372/LTC4373: Low Quiescent Current Ideal Diode Controller Data Sheet (Rev.A) 10/13/2020

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4373CDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373CDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373HDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373HDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373HMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373HMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4373IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 24, 2021 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report Delta Qualification Matrix
LTC4373CMS8#PBF	PRODUCTION
LTC4373CMS8#TRPBF	PRODUCTION
LTC4373HMS8#PBF	PRODUCTION
LTC4373HMS8#TRPBF	PRODUCTION
LTC4373IMS8#PBF	PRODUCTION
LTC4373IMS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC4373

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC4372/LTC4373 Demo Board | Low Quiescent Current Ideal Diodes

Buy Now View Details

Product Details

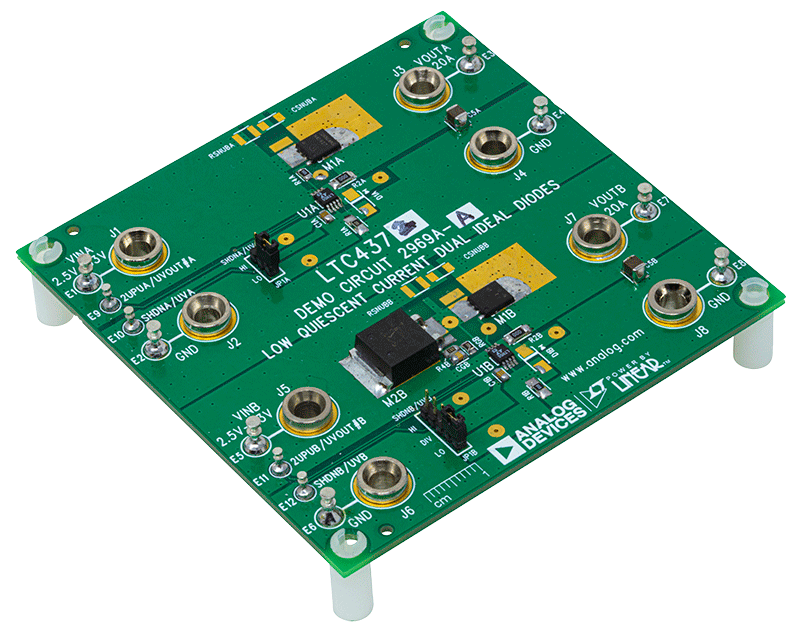

The DC2969A circuit board enables evaluation of the LTC4372 and LTC4373 low quiescent current ideal diode controllers. The DC2969A-A option is assembled with the LTC4372 controller, whereas DC2969A-B is assembled with the LTC4373 controller. DC2969A includes two independent ideal diode circuits sharing a common ground, operating over a 2.5V to 33V range, and protecting the load against reverse inputs of up to –28V. One of these circuits includes a high side load switch in series with the ideal diode allowing load on/off control with the SHDN/UV jumper. In addition, input dropouts are blocked from the output, permitting capacitors to hold up the load when input power fails. Each channel can carry up to 20A.
