RECOMMENDED FOR NEW DESIGNS-20V, 1A, Ultralow Noise, Ultrahigh PSRR Negative Linear Regulator
- Part Models
- 2
- 1ku List Price
- Starting From $4.55
Viewing:
Overview
- Ultralow RMS Noise: 1.4μVRMS (10Hz to 100kHz)
- Ultralow Spot Noise: 4nV/√Hz at 10kHz

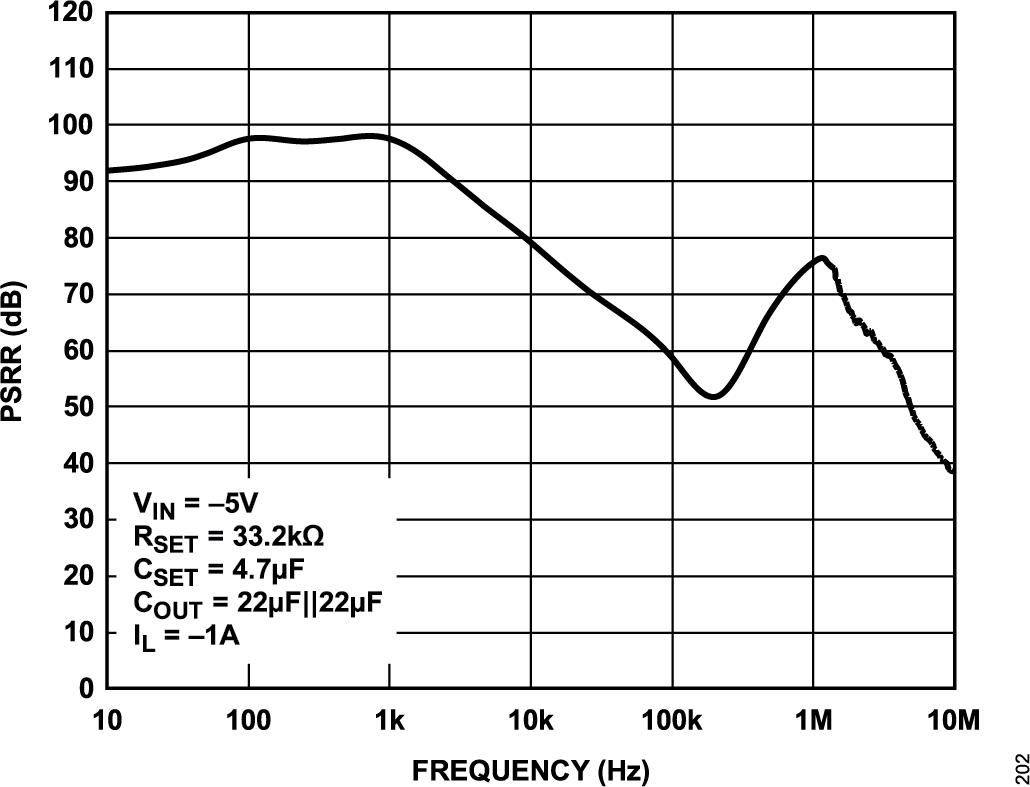

- Ultrahigh PSRR: 75dB at 1MHz
- Output Current: 1A
- Wide Input Voltage Range: -3.5V to -20V
- Single Capacitor Improves Noise and PSRR
- 100μA SET Pin Current: ±0.5% Initial Accuracy
- Single Resistor Programs Output Voltage
- Programmable Current Limit
- Low Dropout Voltage: 350mV
- Output Voltage Range: 0V to -19V
- Programmable Power Good and Fast Start-Up
- Bi-directional Precision Enable/UVLO
- VIOC pin to manage power dissipation
- Parallelable for Lower Noise and Higher Current
- Internal Current Limit with Foldback
- Minimum Output Capacitor: 10μF Ceramic
- Compact, 14-lead, 4mm x 3mm DFN package

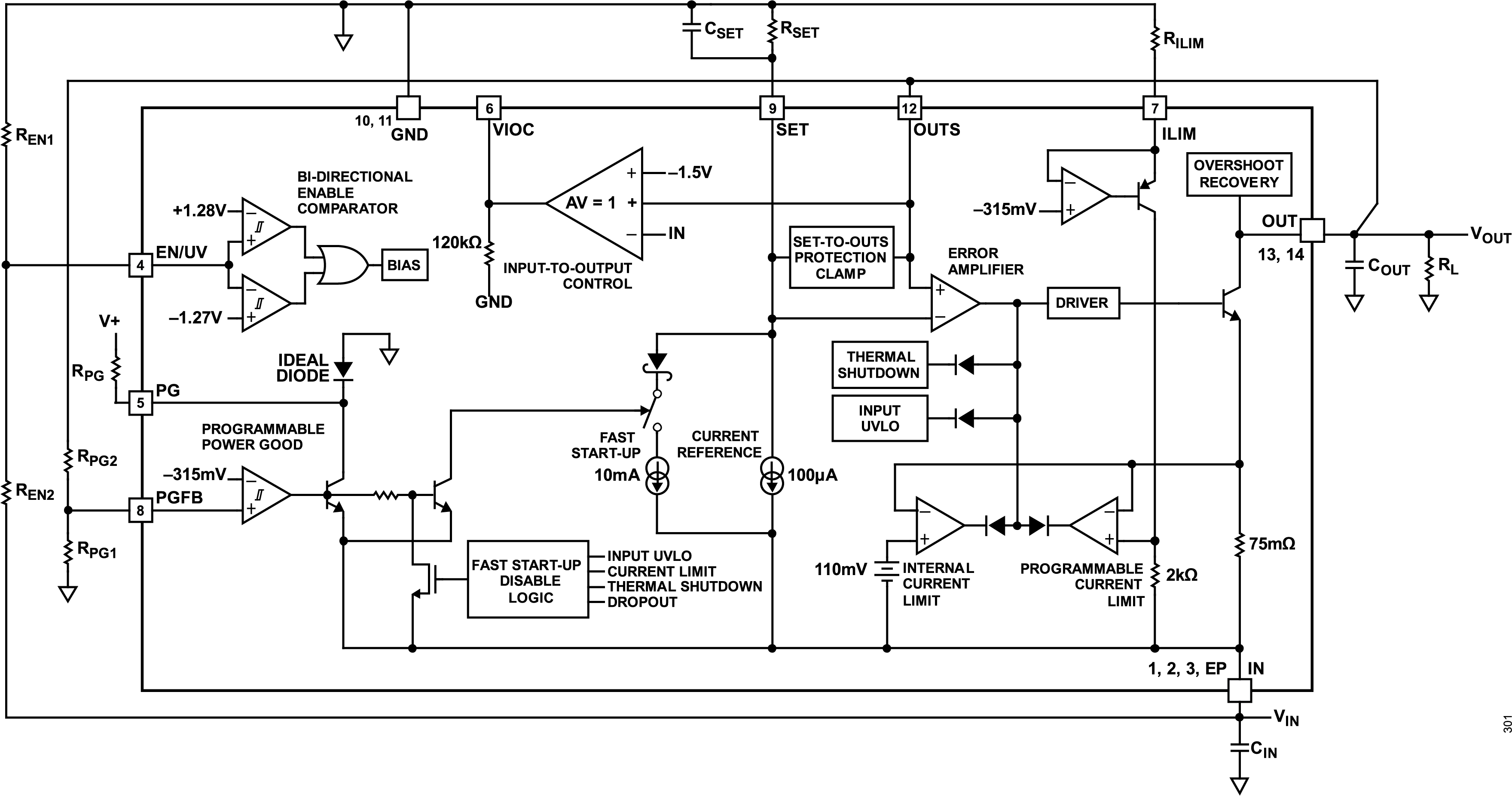

The LT3099 is a high-performance, low-dropout negative linear regulator featuring Analog Devices, Inc.’s ultralow noise and ultrahigh power-supply rejection ratio (PSRR) architecture for powering noisesensitive applications. Designed as a precision current reference followed by a high-performance voltage buffer, the LT3099 can be easily paralleled to reduce noise further, increase output current, and spread heat on the PCB.
The device supplies 1A at a typical 350mV dropout voltage. The operating quiescent current is nominally 2.9mA and drops to 5μA in shutdown. The LT3099’s wide output voltage range (0V to -19V) error amplifier operates at unity gain and provides virtually constant output noise, PSRR, bandwidth, and load regulation independent of the programmed output voltage. Additionally, the regulator features a bi-directional enable pin, programmable current limit, fast start-up capability, and programmable power good for indicating output voltage regulation. The regulator incorporates a tracking function to control an upstream supply to maintain a constant voltage across the LT3099 and minimize power dissipation.
Built-in protection includes an internal current limit with foldback and a thermal limit with hysteresis. The LT3099 is available in a thermally enhanced 4mm × 3mm DFN package.
APPLICATIONS
- RF Power Supplies and Precision Power Supplies
- Very Low Noise Instrumentation
- High-speed/High-precision Data Converters
- Medical Applications: Diagnostics and Imaging
- Post-regulator for Switching Supplies
