ADV7990

Car Camera Bus Transmitter with 10-Bit Parallel Video Input

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.Sp0)
Documentation View All Documentation
Part Models 2
1ku List Price
price unavailable

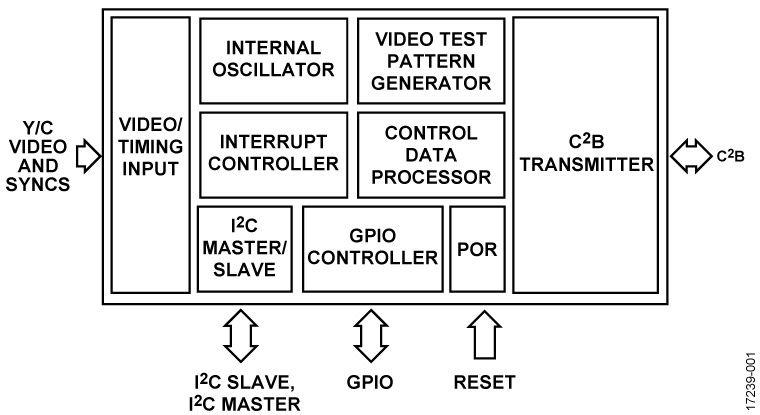

Features
  • C2B transmitter transmits video and bidirectional control data over a differential pair or single-ended cable
  • The parallel video input formats supported include:
    8-/10-bit interleaved Y/C data up to 148.5 MHz
    Embedded (SAV/EAV codes) and separate (frame valid/line valid or HS/VS/DE) timing signals
  • High definition video formats supported up to 2 megapixels at 30 Hz or 1 megapixel at 60 Hz
  • Bidirectional control channel embedded in the C2B link for control and status data between C2B receiver and C2B transmitter
    Enables remote configuration of the C2B transmitter
  • On-chip high resolution, high speed DAC, buffer and filtering blocks for video and control channel path
  • Transmission of frame count data from ISP to enable the backend ECU or HU to detect stuck or skipped frames
  • Bidirectional GPIO
  • Video test pattern generator for easy system testing
  • Protection from high voltages encountered during short to battery (STB) fault condition
  • Tested to industry standards for automotive EMC/EMI/ESD robustness
General
  • 2-wire serial microprocessor unit (MPU) interface (compatible with I2C) capable of operating in master and slave mode
  • −40°C to +105°C temperature grade
  • 32-lead LFCSP package
  • Qualified for automotive applications
Additional Details
show more Icon

Complete technical specifications are available for the C2B transmitters and receivers.

Contact c2b_web_support@analog.com to complete the nondisclosure agreement (NDA) required to receive additional product information.

Applications
  • Automotive camera modules
  • Automotive camera (ECUs)
  • Automotive infotainment HUs
Show More Arrow image
file View Data Sheet (Rev.Sp0)
Documentation View All Documentation
Part Models 2
1ku List Price
price unavailable
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADV7990

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 10/24/2018
English

ADV7990: Car Camera Bus Transmitter with Parallel Video Input Preliminary Data Sheet (Rev.Sp0)

Open PDF File

redirect
156.67 K
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADV7990WBCPZ 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADV7990WBCPZ-RL 32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
