ADPL76030

Name: ADPL76030
Brand: Analog Devices
Price: 4.60 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $4.60

Viewing:

Overview

4-Switch Single Inductor Architecture Allows V_IN
Above, Below, or Equal to V_OUT
Up to 95% Efficiency at 1.4 MHz
Proprietary Peak-Buck, Peak-Boost Current-Mode
Wide V_IN Range: 4 V to 55 V
±2% Output Voltage Accuracy: 1 V ≤ V_OUT ≤ 55 V
±3% Input or Output Current Accuracy with Monitor

Spread Spectrum Frequency Modulation for Low EMI
No Top MOSFET Refresh Noise in Buck or Boost
Adjustable and Synchronizable: 600 kHz to 1.4 MHz
V_OUT Disconnected from VIN During Shutdown

Part Models: 2
1ku List Price: Starting From $4.60

Documentation

Data Sheet 1

ADPL76030: 55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum Data Sheet (Rev.A) 02/26/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

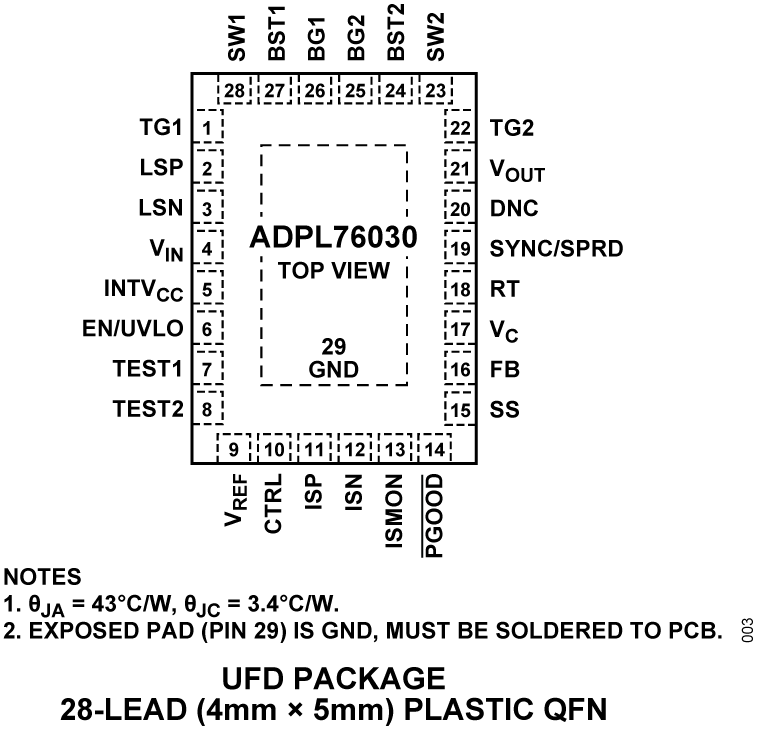

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL76030EUFD#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL76030EUFD#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

ADPL76030 LTspice Model

Models for the following parts are available in LTspice:

ADPL76030

LTpowerCAD

Design tools for the following parts are available in LTpowerCAD:

ADPL76030

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Board for ADPL76030

Buy Now View Details

Features and Benefits

4-Switch Single Inductor Architecture Allows V_IN Above, Below, or Equal to V_OUT
Up to 95% Efficiency at 1.4 MHz
Proprietary Peak-Buck, Peak-Boost Current-Mode
Wide V_IN Range: 4 V to 55 V
±2% Output Voltage Accuracy: 1 V ≤ V_OUT ≤ 55 V
±3% Input or Output Current Accuracy with Monitor
Spread-Spectrum Frequency Modulation for Low EMI
No Top MOSFET Refresh Noise in Buck or Boost
Adjustable and Synchronizable: 600 kHz to 1.4

Product Details

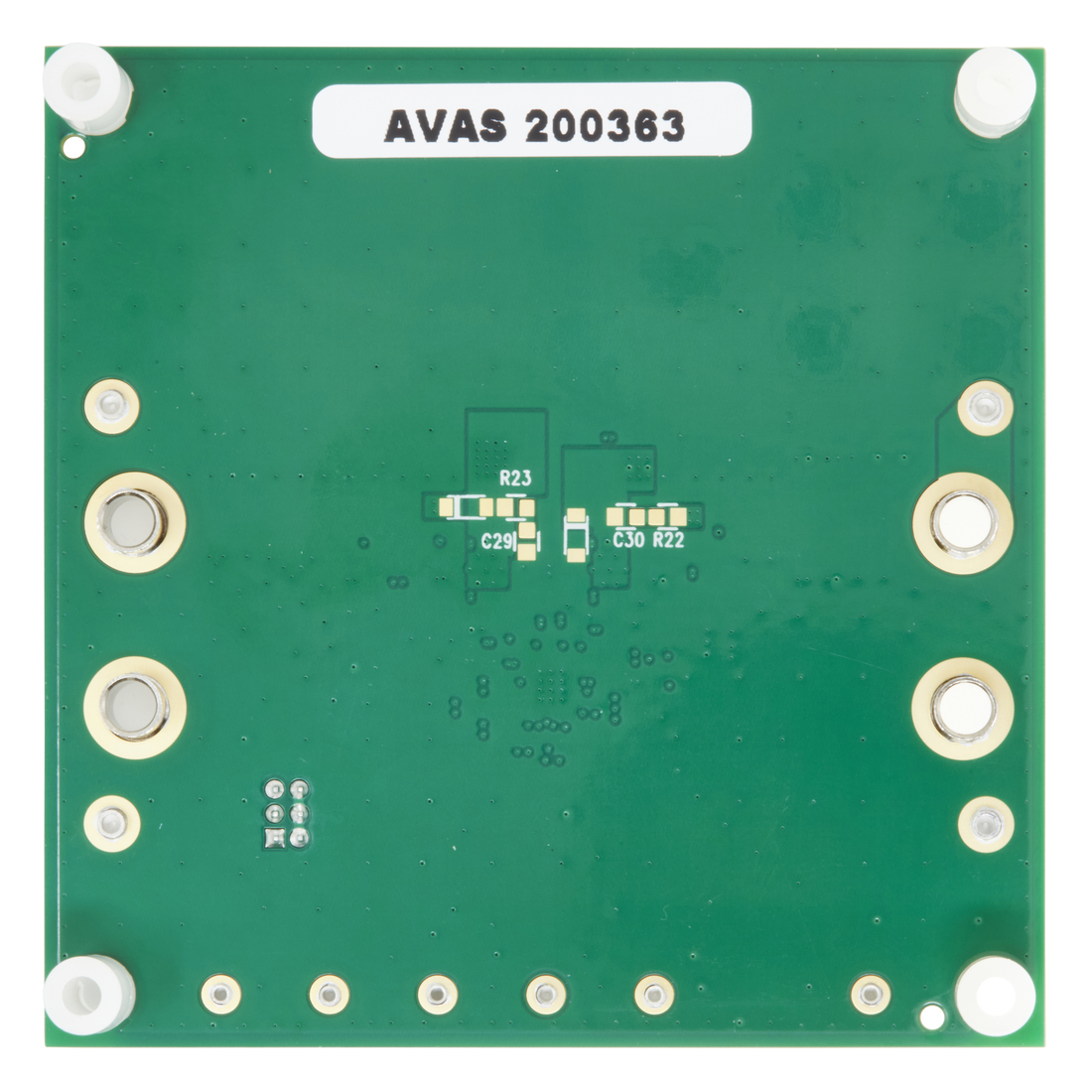

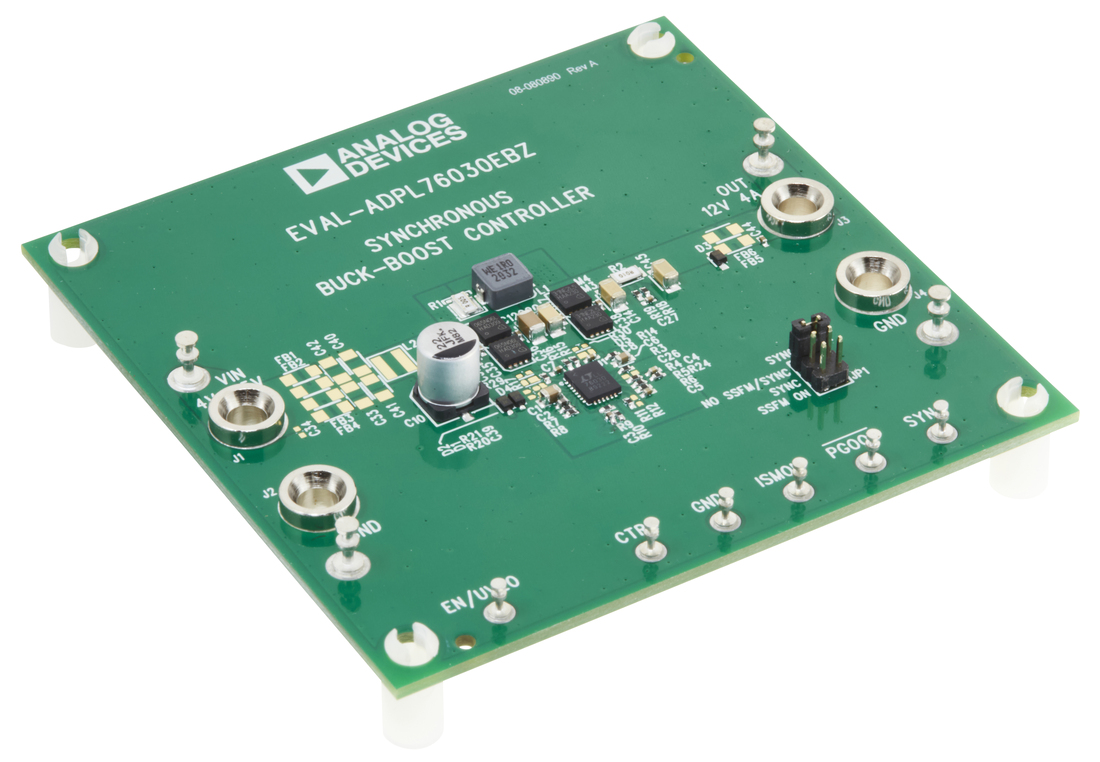

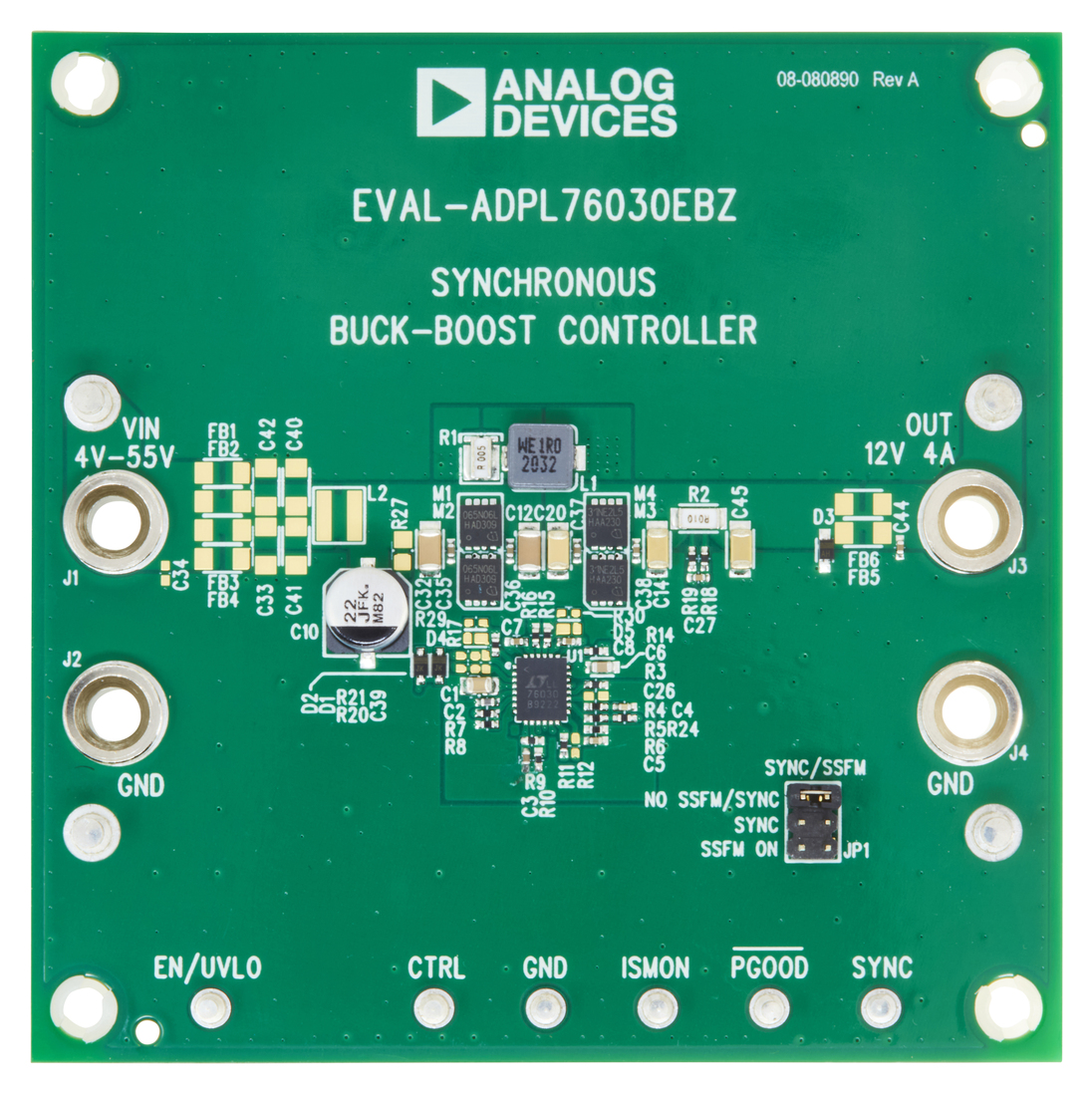

The ADPL76030 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the features of the ADPL76030, a synchronous 4-switch buck-boost DC/DC controller in a 28-lead 4 mm x 5 mm QFN package. The proprietary peak-buck, peak-boost current-mode control scheme allows adjustable and synchronizable 600 kHz to 1.4 MHz fixed frequency operation, or internal 25% triangle spread-spectrum frequency modulation for low EMI. The board accepts a continuous 4 V to 25 V input voltage with transient voltage up to 55 V. Various test points are available for monitoring (PGOOD and ISMON) and control (EN/UVLO, CTRL, and SYNC). Optional EMI input, output, and gate resistor component placeholders are included to support the option of adding, if required.

Read the ADP76030 data sheet with this user guide for a proper understanding and operation of the controller and its numerous features. Component placement and board layout as part of the overall design is essential for proper electrical and thermal performance.

The ADPL76030 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the ADPL76030 retries, latches off, or keeps running.

Resources

EVAL-ADPL76030EBZ: ADPL76030 User Guide (Rev.0)
2/26/2024

ADI Balanced Solutions Essentials Kit for the ADPL76030/ADPL26001 / ADPL13602 / ADPL54203 / ADPL20502 / ADPL62933 / ADPL62935 / ADPL63164

Buy Now View Details

Features and Benefits

Enables Immediate Testing of Eight Different Power Solutions and Supervisors
Includes Buck and Boost Converters, Buck/Boost Converter, No-Opto Isolated Flyback, and High-Performance Supervisors
Boards Designed with Through Holes for Prototyping on breadboards and existing circuits, as well as bench top testing

Product Details

The ADI Balanced Solutions Essentials Kit delivers products on ready-to-use boards for immediate testing and prototyping. The Balanced Solutions Essentials Kit features products from the Buck, Boost, Buck-Boost, Flyback, and High-Performance Supervisor product lines.
