ADPL42002

Name: ADPL42002
Brand: Analog Devices
Price: 0.32 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

20V, 200mA, Low Noise, CMOS LDO Linear Regulator

Data Sheet (Rev. 1) Product Selection Table

Part Models: 10
1ku List Price: Starting From $0.32

Viewing:

Overview

Low Noise: 20μV_RMS Independent of Fixed Output Voltage
PSRR of 78dB at 10kHz, V_OUT ≤ 5V, V_IN = 7V
Input Voltage Range: 2.7V to 20V
Maximum Output Current: 200mA
Initial Accuracy: ±1%
Accuracy Over Line, Load, and Temperature
- ±1.8%, T_J = −40°C to +125°C
Low Dropout Voltage: 220mV (typical) at a 200mA Load, V_OUT = 5V
User Programmable Soft Start
Low Quiescent Current, I_GND = 80μA (typical) with no Load

Low Shutdown Current: 1.8μA at V_IN= 5V, 3.0μA at V_IN = 20V
Stable with a Small 2.2μF Ceramic Output Capacitor
Fixed Output Voltage Options: 1.8V, 2.5V, 3.3V, and 5V
Adjustable Output from 1.2V to V_IN – V_DO, Output can be Adjusted Above Initial Set Point
Precision Enable
6-Lead LFCSP (2mm x 2mm), 8-Lead SOIC

Part Models: 10
1ku List Price: Starting From $0.32

Documentation

Data Sheet 1

ADPL42002: 20V, 200mA, Low Noise, CMOS LDO Linear Regulator Data Sheet (Rev.1) 03/17/2025

User Guide 1

EVAL-ADPL42002 User Guide: Evaluation Kit for ADPL42002 (Rev.0) 03/08/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL42002ACPZN-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ACPZN1.8-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ACPZN2.5-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ACPZN3.3-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ACPZN5.0-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ARDZ-1.8-R7	8-Lead SOIC w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ARDZ-2.5-R7	8-Lead SOIC w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ARDZ-3.3-R7	8-Lead SOIC w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ARDZ-5.0-R7	8-Lead SOIC w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL42002ARDZ-R7	8-Lead SOIC w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 20, 2026 - 24_0206 Qualification of Alternate Wafer Fab for TSMC 0.18um 40V BCDMOS Process
		PCN24_0206_Form Material_Report
ADPL42002ACPZN-R7	PRODUCTION
ADPL42002ACPZN1.8-R7	PRODUCTION
ADPL42002ACPZN2.5-R7	PRODUCTION
ADPL42002ACPZN3.3-R7	PRODUCTION
ADPL42002ACPZN5.0-R7	PRODUCTION
ADPL42002ARDZ-1.8-R7	PRODUCTION
ADPL42002ARDZ-2.5-R7	PRODUCTION
ADPL42002ARDZ-3.3-R7	PRODUCTION
ADPL42002ARDZ-5.0-R7	PRODUCTION
ADPL42002ARDZ-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADPL42002
ADPL42002-1.8
ADPL42002-2.5
ADPL42002-3.3
ADPL42002-5.0

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Kit for ADPL42002

Buy Now View Details

Features and Benefits

Input Voltage Range: 3.8V to 20V
Resistor Programmed: 3.3V Output Voltage
Maximum Output Current: 200mA
Jumper Turns Regulator ON or Connects the EN Pin to a Connector to Turn the Regulator ON or OFF Externally
Jumper Connects the SENSE/ADJ Pin to the OutputThrough a Resistor Divider or Directly
V_IN, V_OUT, and GND Test Points for Regulations and Dropout Voltage Monitoring

Component Placeholders for an RC Network that canReduce Noise when the SENSE/ADJ Pin Connects to the Output Through a Resistor Divider
Component Placeholder for a Soft-Start Capacitor
SS Test Point for Soft-Start Voltage Monitoring -LFCSPPackage Evaluation Board Only
6-Lead (2mm x 2mm) LFCSP Package or an 8-LeadSOIC Package

Product Details

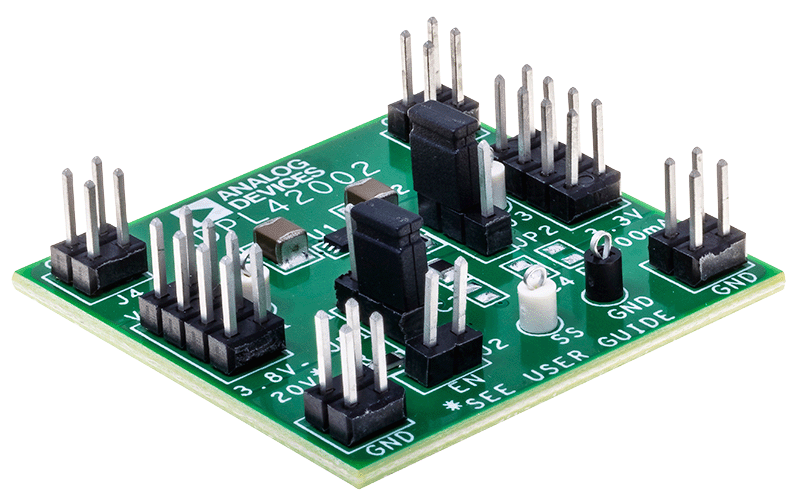

The ADPL42002 evaluation boards evaluate the ADPL42002, a 20V, 200mA, low noise, CMOS, low dropout (LDO) linear regulator.

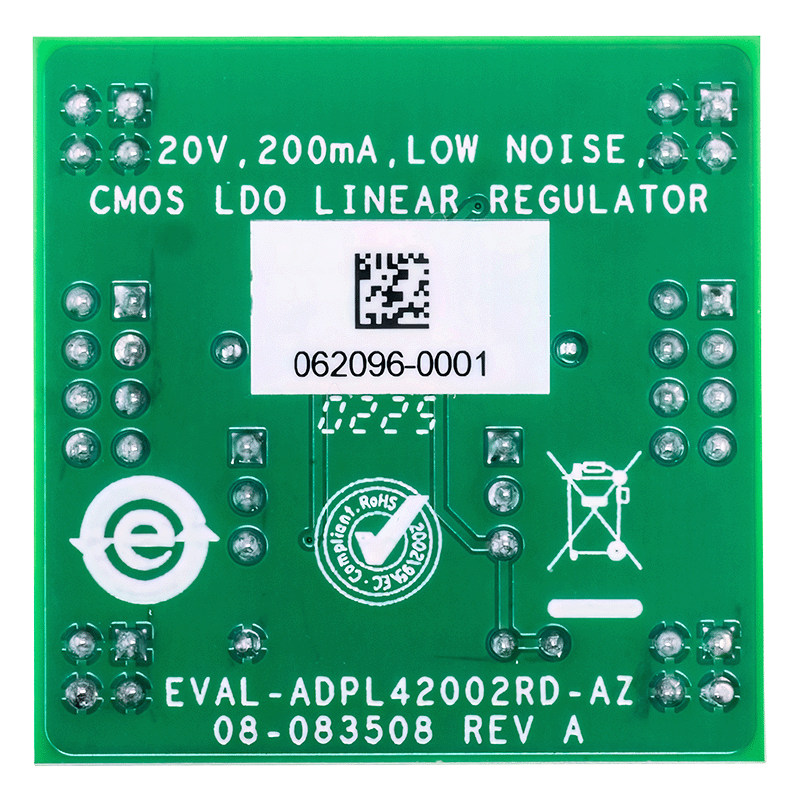

See the Ordering Information section for the two types of evaluation boards available to evaluate the ADPL42002. One board features a 6-lead, 2mm x 2mm LFCSP package, while the other utilizes an 8-lead SOIC package.

The evaluation boards provide a 3.3V output over an input range of 3.8V to 20V. The maximum output current is 200mA, but output current is also limited by the thermal dissipation of the ADPL42002. The evaluation boards use the adjustable version of the ADPL42002. A resistor divider programs the output of the adjustable ADPL42002 to 3.3V. Noise performance for the adjustable ADPL42002 can be made comparable to a fixed output ADPL42002 by installing optional RC network components into the placeholders that the evaluation board printed circuit board (PCB) designs provide. The evaluation boards can easily be configured with a jumper for fixed output versions of the ADPL42002 that normally have their SENS/ADJ pin connected directly to the output.

In addition to connectors for the input voltage, output voltage, EN control signal and ground, the evaluation boards provide test points for the input, output, and SS pin (for the LFCSP package) voltages. A jumper normally connects the EN pin to the V_IN input, but the jumper can be repositioned so EN can be driven externally at its connector instead. A pull-down resistor is also connected to the EN pin to drive the pin low when the device needs to be turned off.

For more details, refer to the ADPL42002 data sheet, which must be consulted in addition to this user guide when using the ADPL42002 evaluation boards.
