ADM3064E

RECOMMENDED FOR NEW DESIGNS

3.0 V to 5.5 V, ±12 kV IEC ESD Protected, 500 kbps/50 Mbps RS-485 Transceivers

Data Sheet (Rev. I) Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.80

Viewing:

Overview

TIA/EIA RS-485 compliant over full supply range
3.0 V to 5.5 V operating voltage range on V_CC
1.62 V to 5.5 V V_IO logic supply option available
ESD protection on the bus pins

IEC 61000-4-2 ≥ ±12 kV contact discharge
IEC 61000-4-2 ≥ ±12 kV air discharge
HBM ≥ ±30 kV

Full hot swap support (glitch free power-up/power-down)
High speed 50 Mbps data rate (ADM3065E/ADM3066E/ADM3067E/ADM3068E)
Low speed 500 kbps data rate for long cables (ADM3061E/ADM3062E/ADM3063E/ADM3064E)

Full receiver short-circuit, open circuit, and bus idle fail-safe
Extended temperature range up to 125°C
PROFIBUS compliant at V_CC ≥ 4.5 V
Half duplex and full duplex models available
Allows connection of up to 128 transceivers onto the bus
Space-saving package options

10-lead, 3 mm × 3 mm LFCSP
8-lead and 10-lead, 3 mm × 3 mm MSOP
8-lead and 14-lead, narrow body SOIC

The ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E are 3.0 V to 5.5 V, IEC electrostatic discharge (ESD) protected RS-485 transceivers, allowing the devices to withstand ±12 kV contact discharges on the transceiver bus pins without latch-up or damage. The ADM3062E/ADM3064E/ADM3066E/ADM3068E feature a V_IO logic supply pin that allows a flexible digital interface capable of operating as low as 1.62 V.

The ADM3065E/ADM3066E/ADM3067E/ADM3068E are suitable for high speed, 50 Mbps, bidirectional data communication on multipoint bus transmission lines. The ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E feature a 1/4 unit load input impedance that allows up to 128 transceivers on a bus. The ADM3061E/ADM3062E/ADM3063E/ADM3064E models offer all of the same features as the ADM3065E/ADM3066E/ADM3067E/ADM3068E models at a low 500 kbps data rate that is suitable for operation over long cable runs.

The ADM3061E/ADM3062E/ADM3065E/ADM3066E are halfduplex RS-485 transceivers, fully compliant to the PROFIBUS^®standard with increased 2.1 V bus differential voltage at V_CC ≥ 4.5 V. The ADM3063E/ADM3064E/ADM3067E/ADM3068E are full duplex RS-485 transceiver options.

The RS-485 transceivers are available in a number of spacesaving packages, including the 10-lead, 3 mm × 3 mm lead frame chip-scale package (LFCSP), the 8-lead or 10-lead, 3 mm × 3 mm mini small outline package (MSOP), and the 8-lead or 14-lead, narrow body standard small outline packages (SOIC_N). Models with operating temperature ranges of −40°C to +125°C and −40°C to +85°C are available.

Excessive power dissipation caused by bus contention or by output shorting is prevented by a thermal shutdown circuit. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, this feature forces the driver output into a high impedance state.

The ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E guarantee a logic high receiver output when the receiver inputs are shorted, open, or connected to a terminated transmission line with all drivers disabled.

Table 2 in the data sheet presents an overview of the ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E data rate capability across temperature, power supply, and package options. Refer to the Ordering Guide section for model numbering.

APPLICATIONS

Industrial fieldbuses
Process control
Building automation
PROFIBUS networks
Motor control servo drives and encoders

Part Models: 4
1ku List Price: Starting From $1.80

Documentation

Data Sheet 1

ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E: 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, 500 kbps/50 Mbps RS-485 Transceiver Data Sheet (Rev.I) 07/11/2023

User Guide 1

UG-1581: Evaluating the ADM3064E 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, 500 kbps, RS-485 Transceiver (Rev.0) 08/01/2019

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADM3064EARZ	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM3064EARZ-R7	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM3064EBRZ	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADM3064EBRZ-R7	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

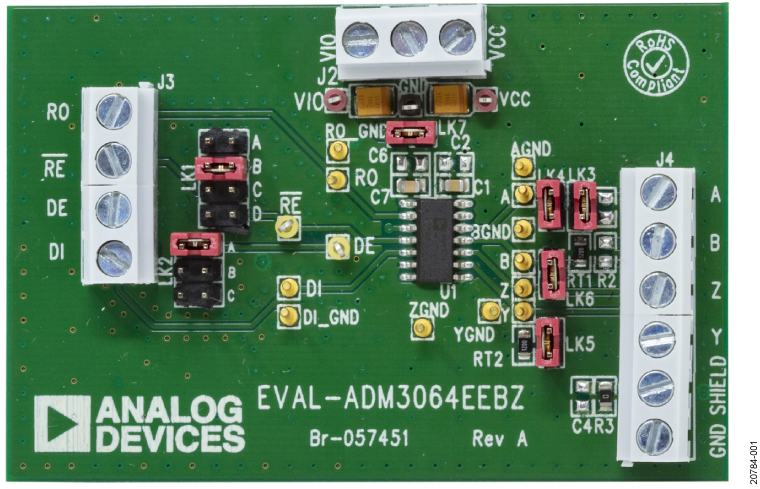

ADM3064E Evaluation Board

Buy Now View Details

Features and Benefits

Easy evaluation of the ADM3064E 500 kbps, RS-485 transceiver
Board layout for full duplex, RS-485 footprint, 14-lead SOIC_N, ADM3064EBRZ transceiver
Screw terminal blocks for logic input and output signals and RS-485 signals
Power and ground connections through screw terminal blocks

3.0 V to 5.5 V operating voltage range on VCC power supply
1.62 V to 5.5 V VIO logic supply

IEC 61000-4-2 ESD protection on the A, B, Y, and Z bus pins

≥±12 kV contact discharge and ≥±12 kV air discharge

Jumper-selectable enable and disable for RE and DE signals
Test points for measuring all signals
Resistors and footprints for termination and biasing networks

Product Details

The EVAL-ADM3064EEBZ evaluation board allows quick and easy evaluation of the ADM3064E 500 kbps, RS-485 transceiver with a standard, 14-lead SOIC_N footprint. The EVALADM3064EEBZ allows the input and output functions of the ADM3064E to be exercised without external components. Screw terminal blocks provide convenient connections for power and ground signals, digital input and output signals, and RS-485 signals. The EVAL-ADM3064EEBZ is powered by a standard, configurable benchtop power supply in the 3.0 V to 5.5 V range. A flexible VIO logic supply allows communication with processors running on voltages as low as 1.62 V.

For full details on the ADM3064E, see the ADM3064E data sheet, which must be consulted in conjunction with this user guide when using the EVAL-ADM3064EEBZ.

Resources

UG-1581: Evaluating the ADM3064E 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, 500 kbps, RS-485 Transceiver (Rev.0)
8/1/2019
