ADM1260
Super Sequencer with Inter-chip ‘Cascade' Bus and Nonvolatile Fault Recording Supports 4 Devices
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Complete supervisory and sequencing solution for up to 10 supplies per device
- Interchip bus (ICB) simplifies multidevice connections and sequencing system operation
- Supports up to 4 devices
- 16 event deep black box nonvolatile fault recording
- 10 supply fault detectors enable supervision of supplies
- <0.5% accuracy at all voltages at 25°C
- <1.0% accuracy across all voltages and temperatures
- 5 selectable input attenuators allow supervision of supplies
- 14.4 V on VH and 6.0 V on VP1 to VP4 (VPx)
- 5 dual function inputs: VX1 to VX5 (VXx)
- High impedance input to supply fault detector with thresholds between 0.573 V and 1.375 V
- General-purpose logic input
- See datasheet for additional features
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADM1260 Super Sequencer® is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems.
A high speed interchip bus (ICB) allows multiple devices to be easily linked together. It is possible to create a system capable of sequencing up to 40 supplies and monitoring up to 37 supplies. Using the ADI Power Studio™ software, the operation of the ICB is transparent to the user, making multiple devices appear to operate as a single virtual sequencer.
In addition to these functions, the ADM1260 integrates a 12-bit analog-to-digital converter (ADC) and six 8-bit voltage output digital-to-analog converters (DACs). Use the ADC and the DACs to implement a closed-loop margining system that enables supply adjustment by altering either the feedback node or the reference of a dc-to-dc converter using the DAC outputs.
Supply margining can be performed with a minimum of external components. The margining loop can be used for in-circuit testing of a board during production (for example, to verify board functionality at −5% of nominal supplies), or it can be used dynamically to accurately control the output voltage of a dc-to-dc converter.
The device also provides up to 10 programmable inputs for monitoring undervoltage faults, overvoltage faults, or out of window faults on up to 10 supplies. In addition, 10 programmable outputs can be used as logic enables. Six of these programmable outputs can also provide an output of up to 12 V for driving the gate of an N-FET that can be placed in the path of a supply.
The logical core of the device is a sequencing engine (SE). This state machine-based construction provides up to 61 different states. This design enables very flexible sequencing of the outputs, based on the condition of the inputs.
A block of nonvolatile EEPROM is available that can be used to store user defined information and can also be used to hold a number of fault records that are written by the sequencing engine, as defined by the user when a particular fault or sequence occurs.
The device is controlled via configuration data that can be programmed into an EEPROM. The entire configuration can be programmed using an intuitive graphical user interface (GUI)-based software package provided by Analog Devices, Inc., the ADI Power Studio software.
Applications- Central office systems
- Servers/routers
- Multivoltage system line cards
- Digital signal processor (DSP)/field programmable gate array (FPGA) supply sequencing
- In-circuit testing of margined supplies
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADM1260
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Application Note
-
User Guide
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Application Note
5
User Guide
1
Documentation
Product Selector Card 1
Webcast 1
Video
2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADM1260ACPZ |
40-Lead LFCSP (6mm x 6mm w/ EP)
|
|
|
| ADM1260ACPZ-RL7 |
40-Lead LFCSP (6mm x 6mm w/ EP)
|
|
- ADM1260ACPZ
- Pin/Package Drawing
-
40-Lead LFCSP (6mm x 6mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADM1260ACPZ-RL7
- Pin/Package Drawing
-
40-Lead LFCSP (6mm x 6mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 1
-web.gif?rev=e39fa56e61124def838a5fe96e1092b9&sc_lang=en)
EVAL-ADM1260
ADM1260 Evaluation Board
-web.gif?rev=4bb40ee170f5454fba4cdf1f8db03eb8&sc_lang=en)
Features and Benefits
- Full functional support evaluation kit for the ADM1260
- I2C interface supports all device related software
- Interchip bus simplifies multidevice cascading and sequencing operation
- 10 adjustable voltages reference for input emulation
- Switch controlled, open-drain / push-pull digital inputs
- Extra headers for easy probing
- Includes point to point patch cables for easy wiring
Product Detail

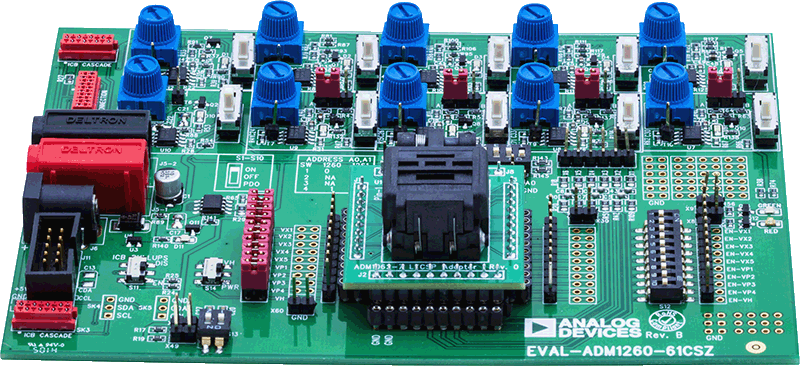

The EVAL-ADM1260CSZ is a compact, full-feature evaluation board for the ADM1260 that comes in the EVAL-ADM1260EBZ evaluation kit.
