AD74111

PRODUCTION

2.5 V, 24-Bit Sigma-Delta Mono CODEC

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: Starting From $3.91

Viewing:

Overview

2.5 V Mono Audio Codec with 3.3 V Tolerant Digital Interface
Supports 8 kHz to 48 kHz Sample Rates
Supports 16-/20-/24-Bit Word Lengths
Multibit Σ-Δ Modulators with "Perfect Differential Linearity Restoration" for Reduced Idle Tones and Noise Floor
Data Directed Scrambling DAC – Least Sensitive to Jitter
Programmable ADC Gain

On-Chip Volume Control for DAC Channel
Software Controllable Clickless Mute
Performance (20 Hz to 20 kHz)
- 85 dB ADC Dynamic Range
- 93 dB DAC Dynamic Range
Supports 256 x f_S, 512 x f_S, and
768 x f_S Master Mode Clocks
Master Clock Prescaler for Use with DSP Master Clocks
On-Chip Reference

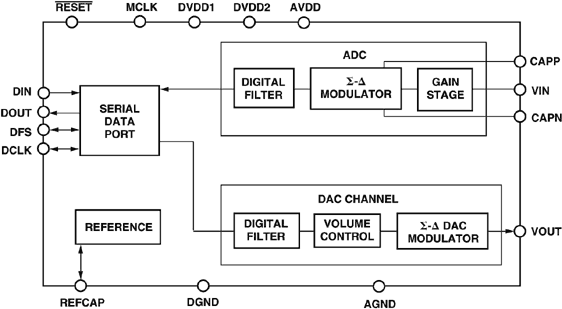

The AD74111 is a front-end processor for general purpose audio and voice applications. It features a multi-bit Sigma-Delta A/D conversion channel and a multi-bit Sigma-Delta D/A conversion channel. The ADC channel provides >67 dB THD+N and the DAC channel provides >88 dB THD+N both over an audio signal bandwidth.

The AD74111 is particularly suitable for a variety of applications where mono input and output channels are required, including audio sections of Digital Video Camcorders, portable personal audio devices and telematic applications. Its high quality performance also make it suitable for speech and telephony applications such as speech recognition and synthesis and modern feature phones.

An on-chip reference voltage is included but can be overdriven by an external reference source if required.

The AD74111 offers sampling rates which, depending on MCLK selection and MCLK divider ratio, range from 8 kHz in the voiceband range to 48 kHz in the audio range.

The AD74111 is available in 16 lead TSSOP package option and is specified for the automotive temperature range of -40°C to +105°C.

APPLICATIONS

Digital Video Camcorders (DVC)
Portable Audio Devices (Walkman^®, PDAs, and so on)
Audio Processing
Voice Processing
Telematic Systems
General-Purpose Analog I/O

Part Models: 3
1ku List Price: Starting From $3.91

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD74111YRUZ	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD74111YRUZ-REEL	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD74111YRUZ-REEL7	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
AD74111YRUZ	PRODUCTION
AD74111YRUZ-REEL	PRODUCTION
AD74111YRUZ-REEL7	PRODUCTION
