DC1749B

LT8610 Demo Board | Synchronous Step-Down Converter: 3.4V to 42V Input, 5V_OUT at 2.5A

Top

Overview

Product Details

Product Details

Demonstration circuit 1749B is a 42V, 2.5A micropower synchronous step-down regulator featuring the LT8610. The LT8610 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current when output is regulated at 5V. Top and bottom power switches, compensation components and other necessary circuits are inside of the LT8610 to minimize external components and simplify design.

Markets and Technologies

Automotive (2)
- Premium Audio Amplifiers
- Head-Unit and Cockpit ECU

Applicable Parts

LT8610

Documentation & Resources

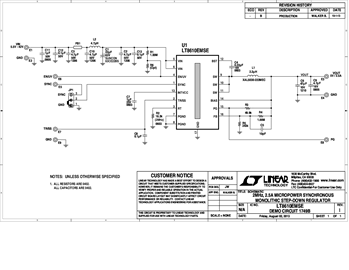

Demo Board Schematic
