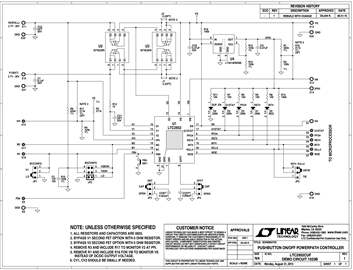

DC1033B - Schematic5/13/2016PDF38K
Overview
Product Details
Demonstration circuit 1033B features the LTC2952, a micropower, multipurpose, pushbutton On/Off PowerPath™ controller that provides voltage monitoring and supervisory features, as well as ideal diode power paths. Selectable PowerPath management modes allow a variety of power on and off configurations, including pushbutton on/off control and voltage detection on/off control.
Applicable Parts
Documentation & Resources
-
DC1033B - Demo Manual5/13/2016PDF417K
-
DC1033B - Design Files5/13/2016ZIP933K
