LTspice® is a high performance SPICE simulation software, schematic capture and waveform viewer with enhancements and models for easing the simulation of analog circuits. Included in the download of LTspice are macromodels for a majority of Analog Devices switching regulators, amplifiers, as well as a library of devices for general circuit simulation.

Contact Technical Support for assistance

Benefits of using LTspice

Our enhancements to SPICE have made simulating switching regulators extremely fast compared to normal SPICE simulators, allowing the user to view waveforms for most switching regulators in just a few minutes. This video provides an overview of the advantages of using LTspice in an analog circuit design and how easy it is to get started.

Download LTspice

Download our LTspice simulation software for the following operating systems:

Date models updated - Jan 26 2022

Download for Windows 7, 8, and 10 32-bit Version 17.0.32

Download for Windows 7, 8, and 10 64-bit Version 17.0.32

Download for MacOS 10.10 and forward Version 17.0.40

Download for MacOS 10.9 (End of Support)

Download for Windows XP (End of Support)

LTspice Demo Circuits

Explore ready to run LTspice demonstration circuits with our Demo Circuits Collection. View Demo Circuits


Additional support for LTspice can be found within our documentation, including keyboard shortcuts and a visual guide.

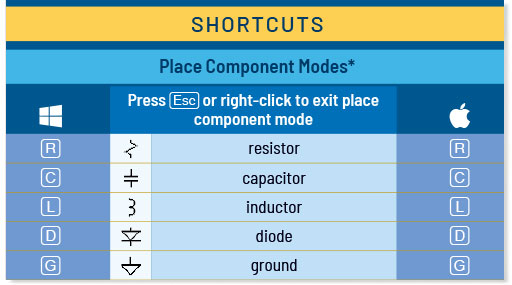

LTspice Information Flyer & Shortcuts (PDF)
Mac OS X Shortcuts (PDF)

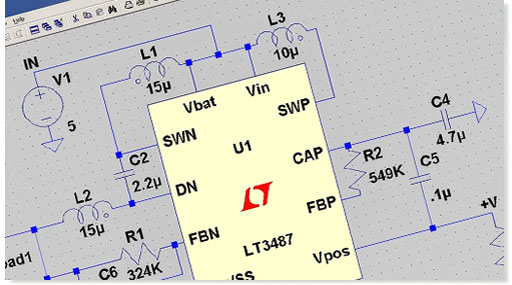

Get Up and Running with LTspice

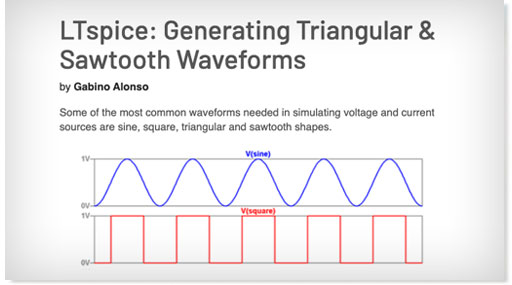

LTspice Technical Articles & Videos

Our extensive collection of technical resources tackles a wide range of LTspice topics, like keyboard shortcuts, evaluating electrical quantities, and parametric plots.

Recommended Reading List

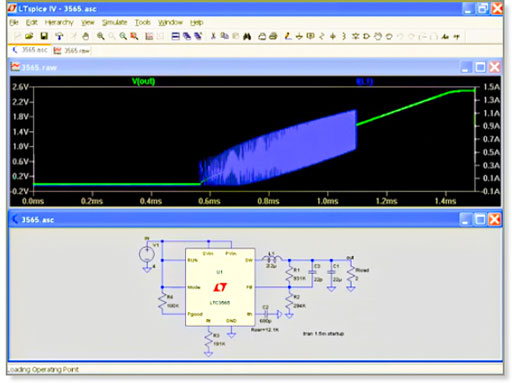

LTspice Getting Started Tutorial

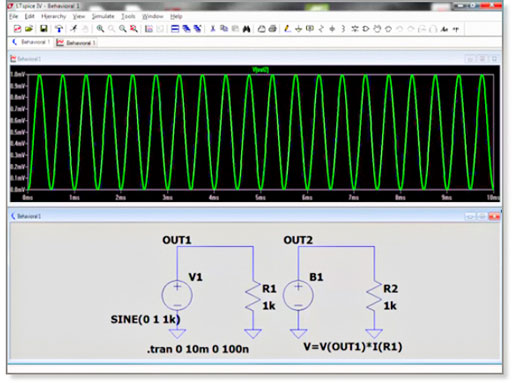

LTspice Essentials Tutorial

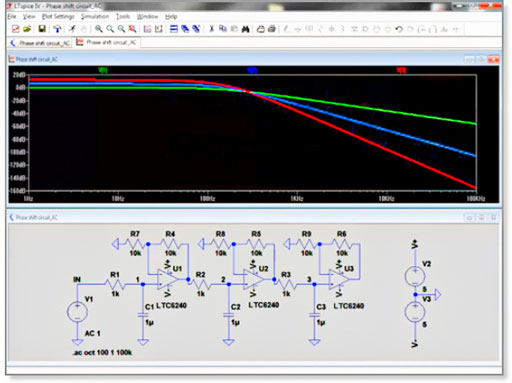

LTspice AC & Noise Analysis Tutorial

SPICE Models

A collection of SPICE simulation models for Analog Devices' products. View SPICE Models
