Analog Devices, Inc. supports power delivery solutions for the CV5-DK Platform. Monolithic solutions are used on the CV5-DK Platform to power SoC rails as well as other system rails. These regulators are highly integrated discrete solutions optimized for cost, efficiency and footprint.

CV5-DK is a development kit which utilizes Ambarella’s CV5 video SoCs respectively. Typical applications for CV5 are driver recorders, drones, action/ VR cameras, etc.

To request schematics and LTpowerPlanner™ files, please reach out to your local field sales office.

Contact ADI if you have questions about the ADI power management solutions used on this board.

电路描述

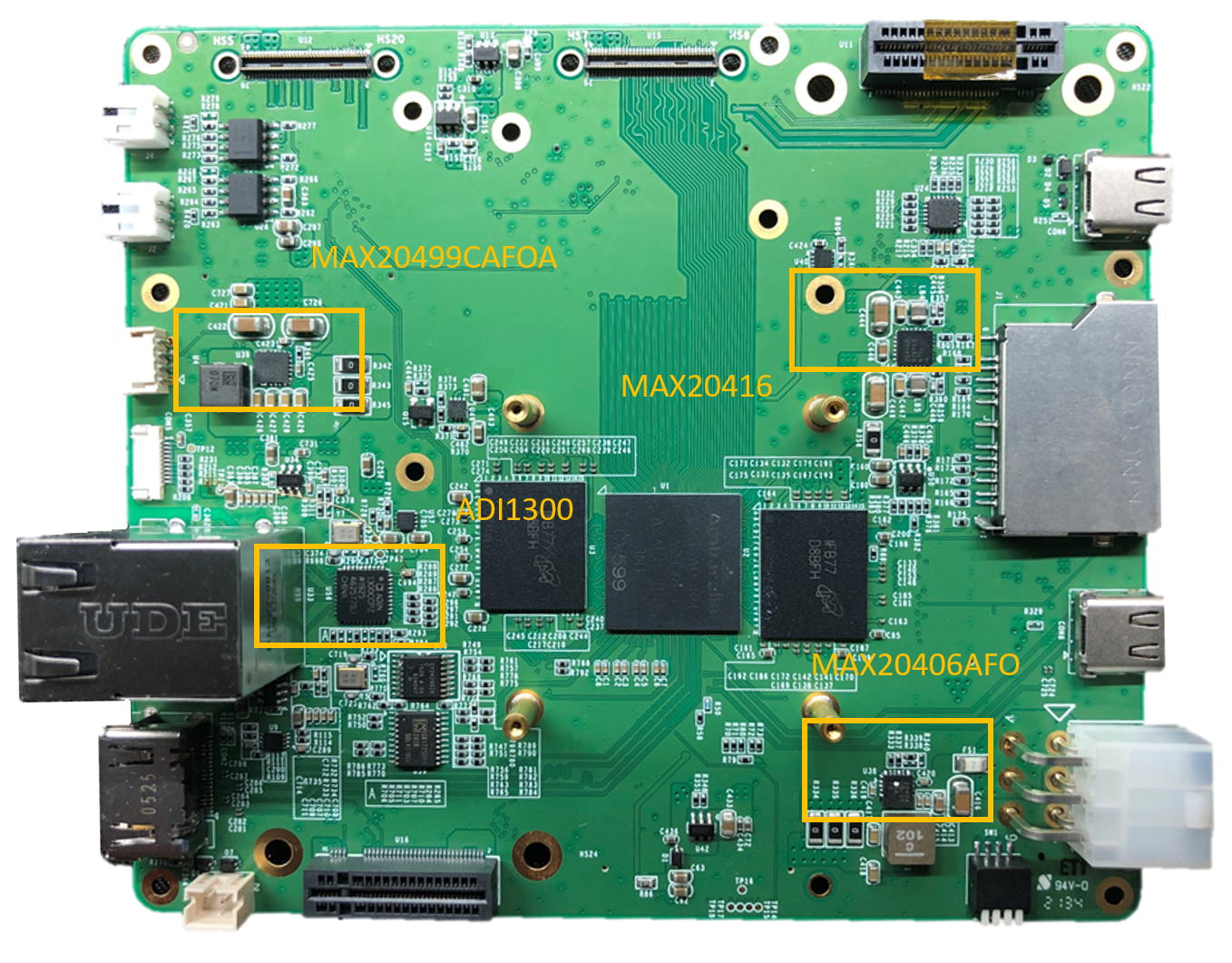

Circuit Description Quantity/Board Manufacturer CT P/N Parts Description

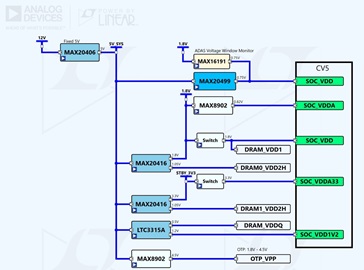

0.82V: SOC_VDDA
1.8V/4.5V: OTP_VPP 		2 MAX8902BATA/V Low-Noise, Low-Dropout, High-PSRR, 500mA Linear Regulators in a 2mm × 2mm TDFN Package
5V: System Intermediate Bus Voltage 1 MAX20406 Automotive 36V, 4A/5A/6A Fully Integrated Synchronous Buck Converter
0.75V: SOC_VDD 1 MAX20499CAFOA Automotive Core Power Supply 5V, 8A/12A Step-Down Converter
Voltage Window Monitor 1 MAX16191 Ultra-High, 0.35% Accuracy Supervisory Circuit
1.8V: SOC_VDD
1.05V: DRAM1_VDD2H
3.3V: STBY_3v3
1.05V: DRAM0_VDD2H 		2 MAX20416ATGD 2.2MHz Dual-Output, Low-Voltage Step-Down Converters
0.5V: DRAM_VDDQ
1.2V: SOC_VDD1v2 		1 LTC3315AEV#TRPBF Dual 5V, 2A Synchronous Step-Down DC/DCs in Tiny LQFN and WLCSP
1 Gbps Ethernet PHY 1 ADIN1300ACPZ-R7 Robust, Industrial, Low Latency and Low Power 10 Mbps, 100 Mbps, and 1 Gbps Ethernet PHY
