ADPS43895-RD Industrial Power Solution
概览
设计资源
描述
PSE applications that deliver both power and data over ethernet to devices such as IP cameras and wireless access points require compact, efficient, and standards-compliant solutions to support increasing power demands. This reference design's wide input voltage range of 9-48V ensures compatibility with diverse and common power sources (12V/24V/48V). Its active clamp topology achieves efficiency greater than 90% at 100W of power and nominal Vin conditions. The standard half-brick form factor (2.3in x 2.4in) enables easy integration, and the strong isolation (2200Vac) provides superior industrial protection and safety.
Applications
- PSE Applications
- Industrial Automation
- Smart Building Systems
优势和特点
- Wide input voltage range of 9-48V ensures compatibility with diverse and common power sources (12V/24V/48V).
- Active clamp topology achieves efficiency greater than 90% at 100W of power and nominal Vin conditions.
- Energy loss minimized and thermal performance improved, reducing operating costs and enhancing system reliability.

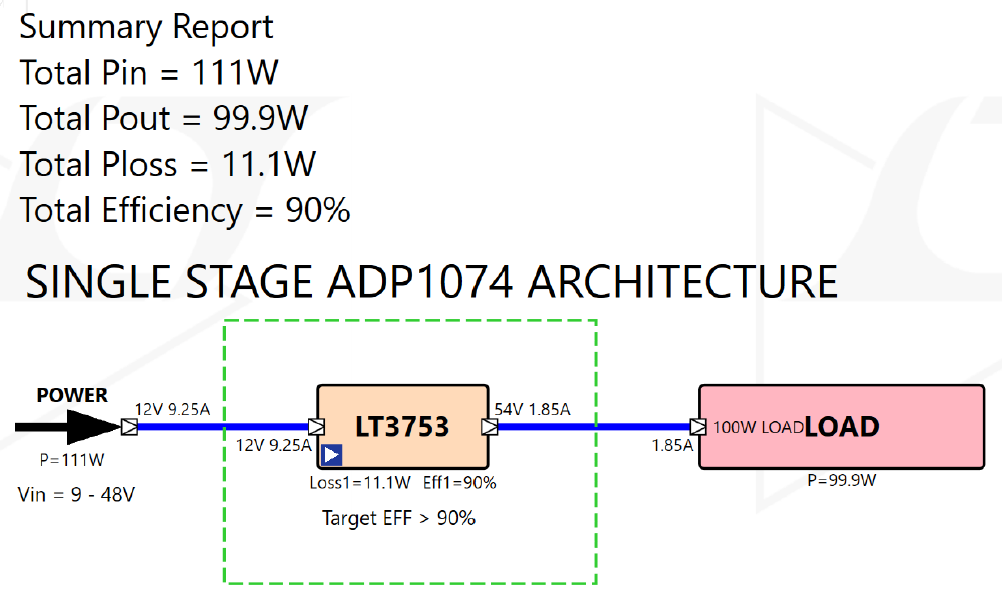

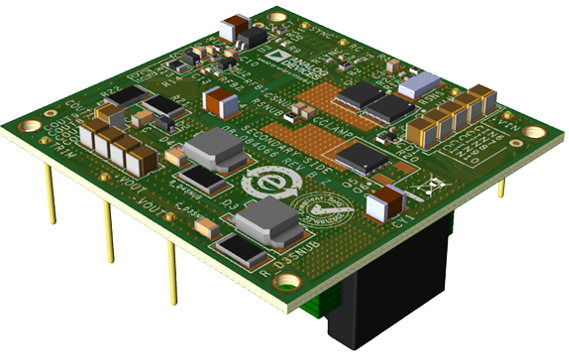

- Standard half-brick form factor (2.3in x 2.4in) simplifies system integration, saves space, and reduces design complexity.
- Strong isolation (2200Vac) provides superior safety and protection for sensitive equipment.
Solution Specifications
Electrical Requirements:
- External Input Voltage: 9 VDC – 48 VDC (12 V / 24 V / 48 V nominal)
- Output Voltage: 54 VDC
- Output Current: 2 A
- Output Power: 100 W
- Load Regulation: ± 1%
- Maximum Output Ripple: 250 mVPP
- Transient Response: ± 5% (50% to 100% Load Step)
- Isolation: 2200 VAC
Performance Requirements:
- Efficiency: ≥ 90%
Mechanical Requirements:
- Transformer Type: Planar, Off-the-shelf
- Form Factor: Half-Brick size
文件和资源
-
ADPS43895-RD Design Files2026/8/7ZIP16 MB
-
LTpowerCAD和LTpowerPlanner2017/11/17
-
ADPS43895-RD LTPowerPlanner2026/8/7LTP31 KB
