概览

优势和特点

  • VOUT = 20V, VIN Range = 2.5V to 4.2V, IOUT = upto 20mA
  • Resistor Programmable Output Voltage
  • Features a Current-Limited, Fixed Off-Time control scheme
  • Internal Compensation and Soft-Start
  • Proven PCB Layout
  • Fully Assembled and Tested

产品详情

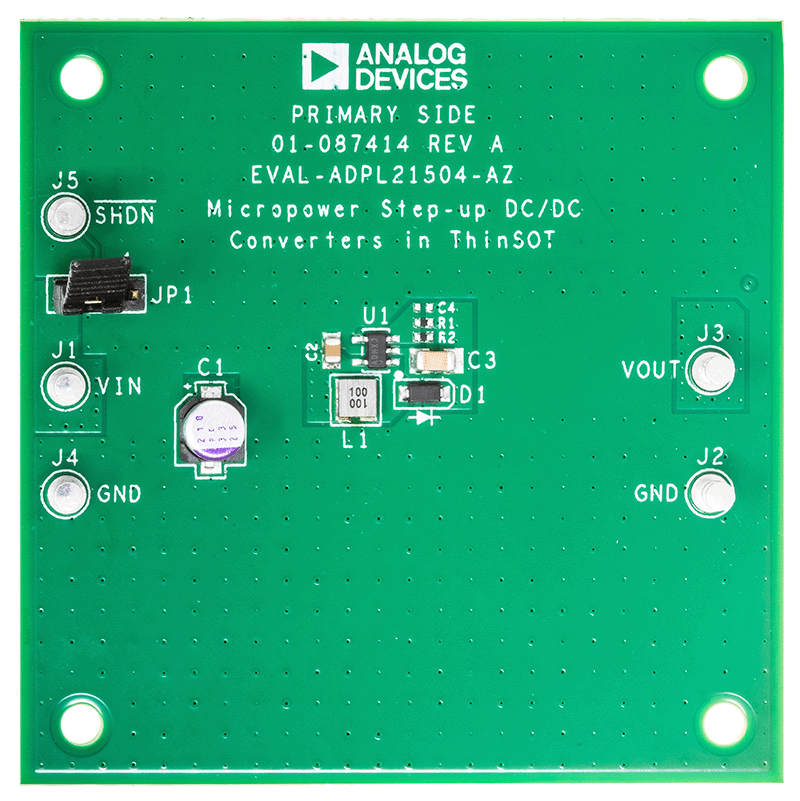

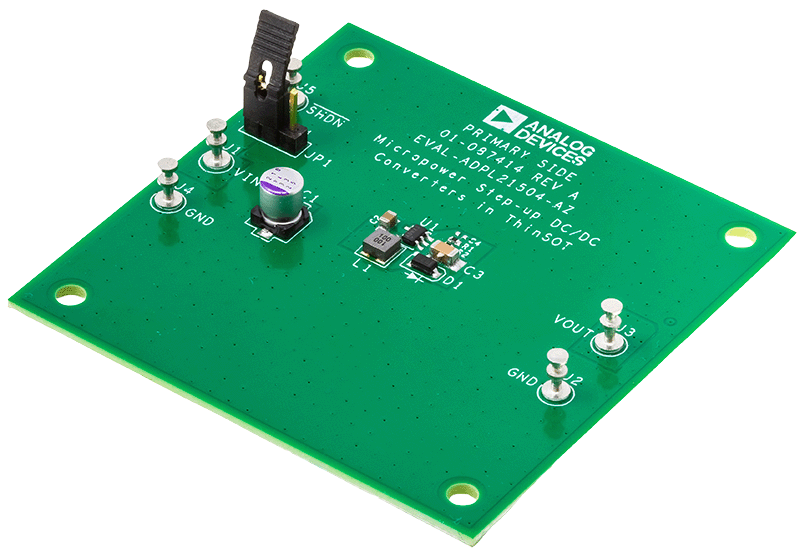

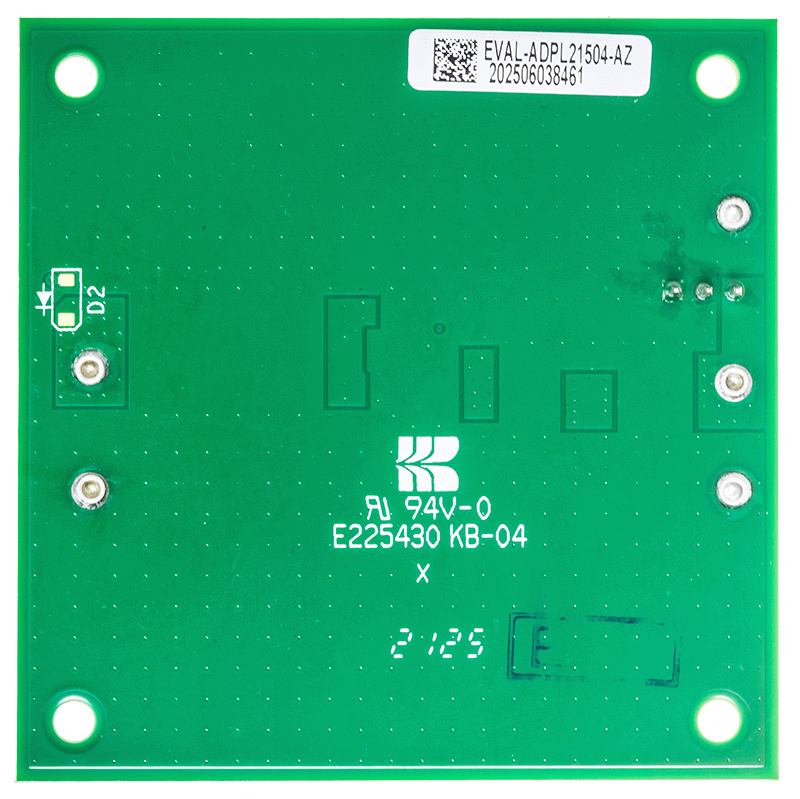

The EVAL-ADPL21504-AZ evaluation board features the ADPL21504, a micropower step-up DC/DC converter in a ThinSOT™ package.

The ADPL21504 is designed for higher power systems with a 350mA current limit. A current-limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current.

The ADPL21504’s low off-time of 400ns permits the use of tiny, low-profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.

The EVAL-ADPL21504-AZ evaluation board features an application circuit with a 20V output voltage, operating within an input voltage range of 2.5V to 4.2V and a load current upto 20mA.

The ADPL21504 data sheet must be read in conjunction with this user guide to properly use or modify the evaluation board.

使用入门

Required Equipment

  • One 10V, 1A DC Power Supply
  • Digital Multimeters (DMM)
  • Load Resistors Capable of Sinking up to 20mA at 20V output
