- VOUT = 30V, VIN Range = 1V to 6V, IOUT = 500μA
- Resistor Programmable Output Voltage
- Features a Current-Limited, Fixed Off-Time ControlScheme
- Internal Compensation and Soft-Start
- Proven PCB Layout
- Fully Assembled and Tested
产品详情

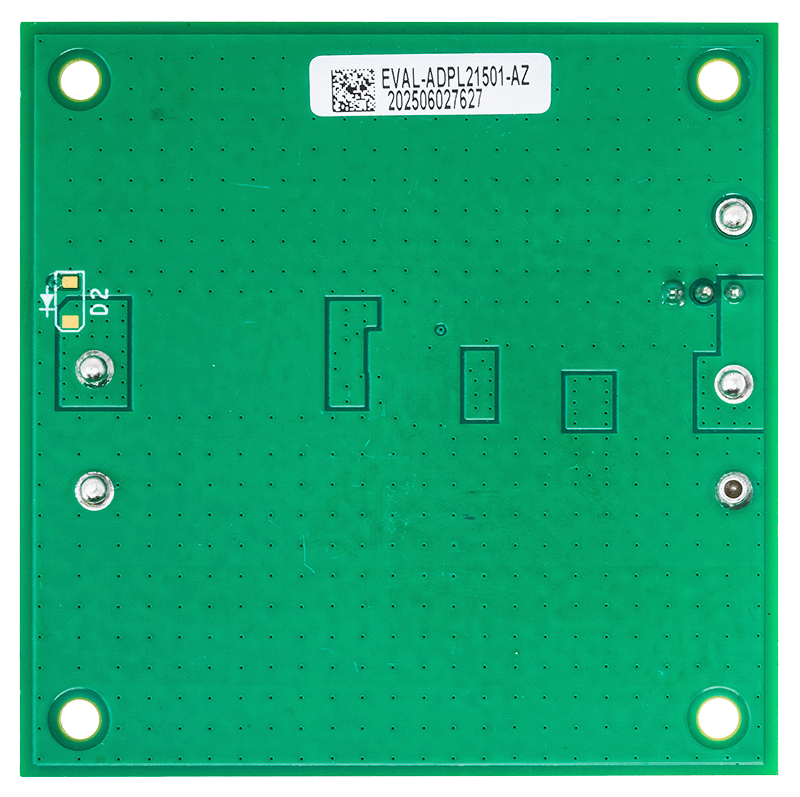

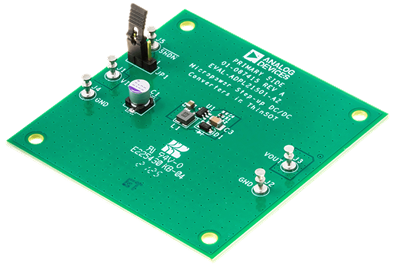

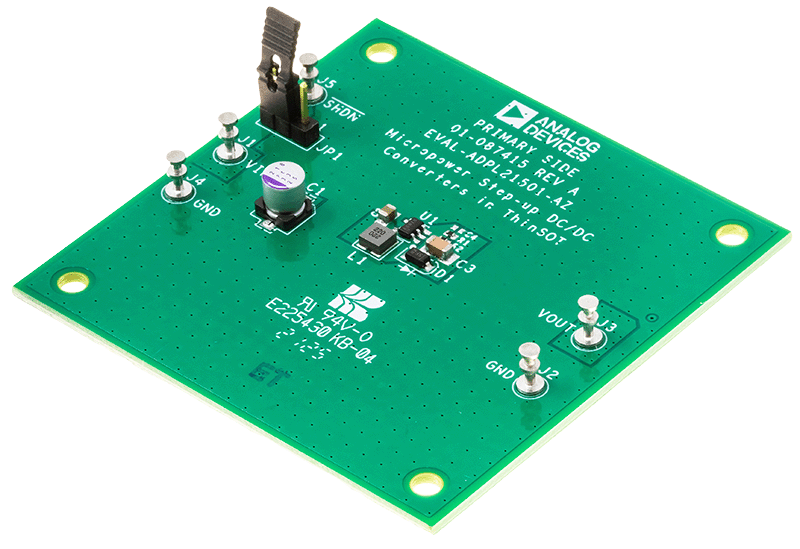

The EVAL-ADPL21501-AZ evaluation board features the ADPL21501, a micropower step-up DC/DC converter in a ThinSOT™ package.
The ADPL21501 is designed for higher power systems with a 100mA current limit. A current-limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current.
The ADPL21501’s low off-time of 400ns permits the use of tiny, low-profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.

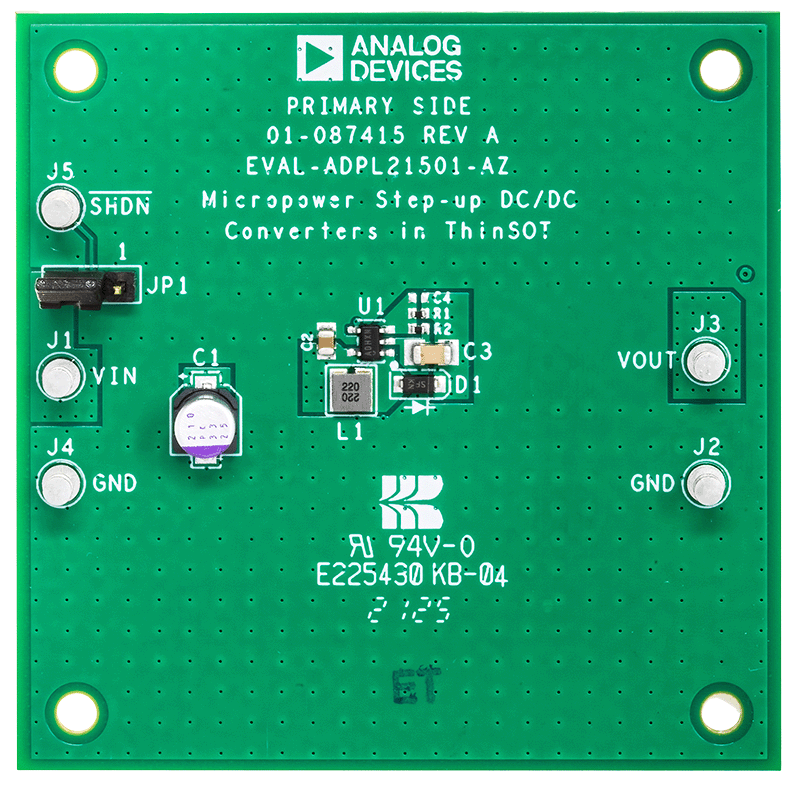

The EVAL-ADPL21501-AZ evaluation board features an application circuit with a 30V output voltage, operating within an input voltage range of 1V to 6V and a load current of 500μA.
The ADPL21501 data sheet must be read in conjunction with this user guide to properly use or modify the evaluation board.
相关产品
使用入门
Required Equipment
- One 10V, 1A DC Power Supply
- Digital Multimeters (DMM)
- Load Resistors capable of sinking up to 500μA at 30V output
