DC2303A-E
LTC2000A-14 Demo Board (FMC) | 14-Bit 2.7Gsps DAC with DDR LVDS Interface
顶部
概览
产品详情

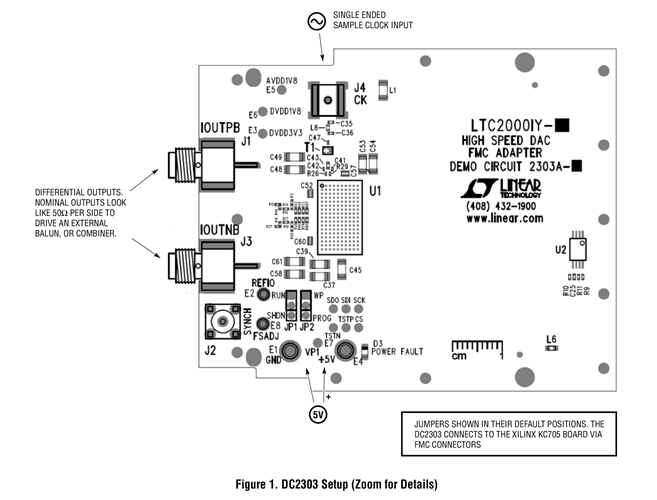

Demonstration circuit 2303 supports the LTC2000 and LTC2000A, a high speed, high dynamic range family of DACs. It was specially designed for applications that require differential DC coupled outputs. DC2303 supports the complete family of the LTC2000 including 16-, 14- and 11-bit parts.Companion Board: Kintex Board
相关产品
文档
-
DC2303A - Schematic2017/5/25PDF106K
-
DC2303A - Demo Manual2017/5/25PDF663K
-
DC2303 Verilog Files2022/2/3ZIP31 M
-
DC2303A - Design Files2017/5/25ZIP4 M
