DC1698A

产品详情

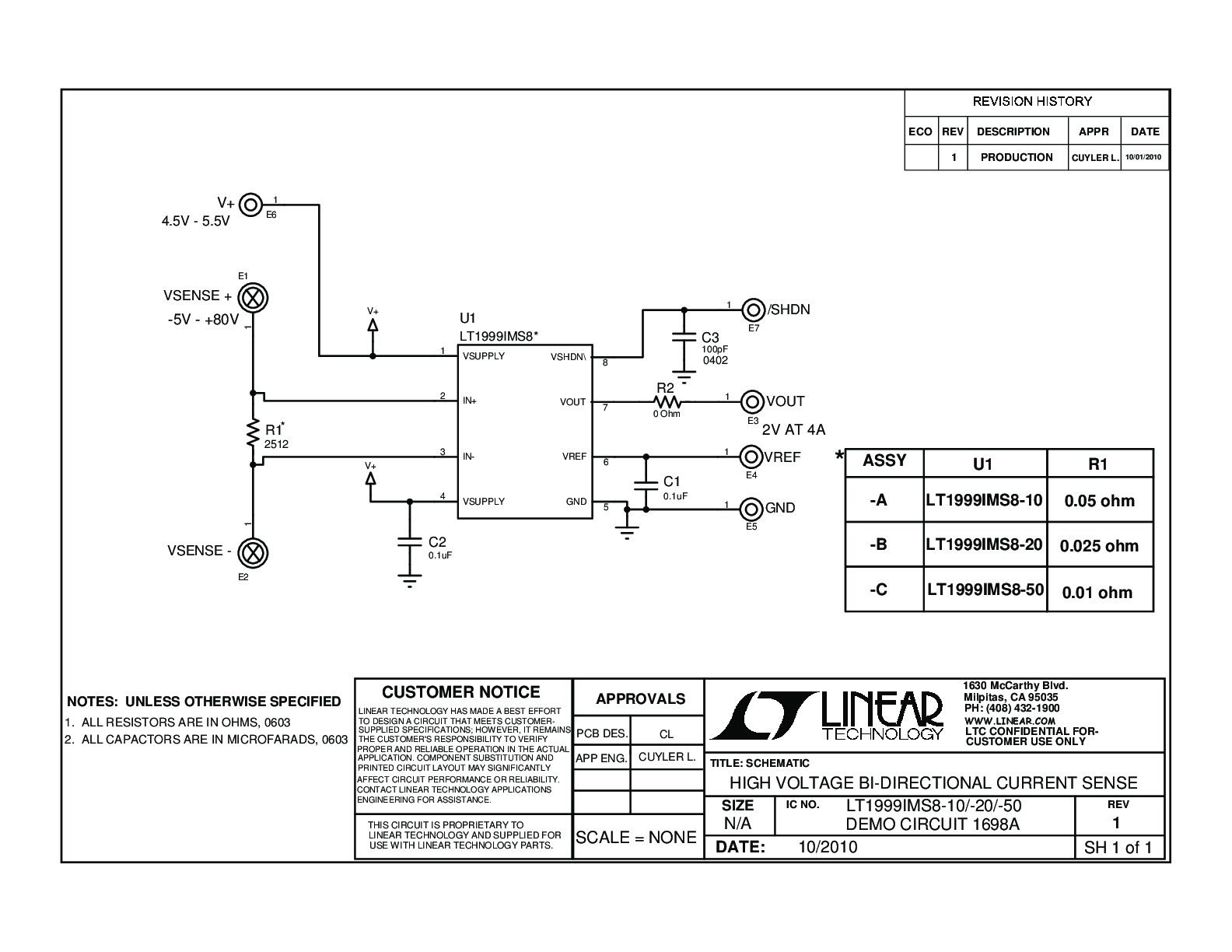

Demonstration circuit 1698A features the LT1999, a high voltage, bi-directional current sense amplifier.
