A²B-Analyzer-HP

产品详情

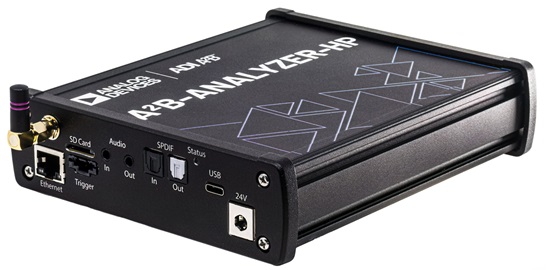

ADI A²B Analyzer HP is a next-generation hardware platform designed to accelerate the design, debug, and validation of A²B networks. Featuring a hot-swappable Personality Module architecture, it is built to support all A²B transceiver families, including A²B 1.0 (AD242x/AD243x) and A²B 2.0 (ADAA245x).

Currently, the Analyzer HP supports A²B 2.0 (ADAA245x) transceivers, with future updates planned to extend compatibility.

Using the A²B Analyzer Studio software, the Analyzer HP can be configured as an active bus emulator, a bus traffic monitor, or both.

1. A²B Analyzer HP - Hardware Highlights

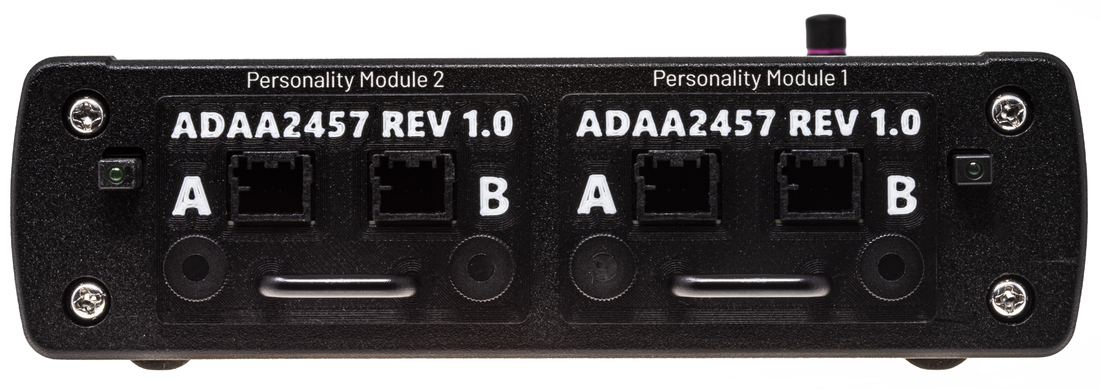

• Swappable Personality Modules for true node emulation
• USB-C Powering

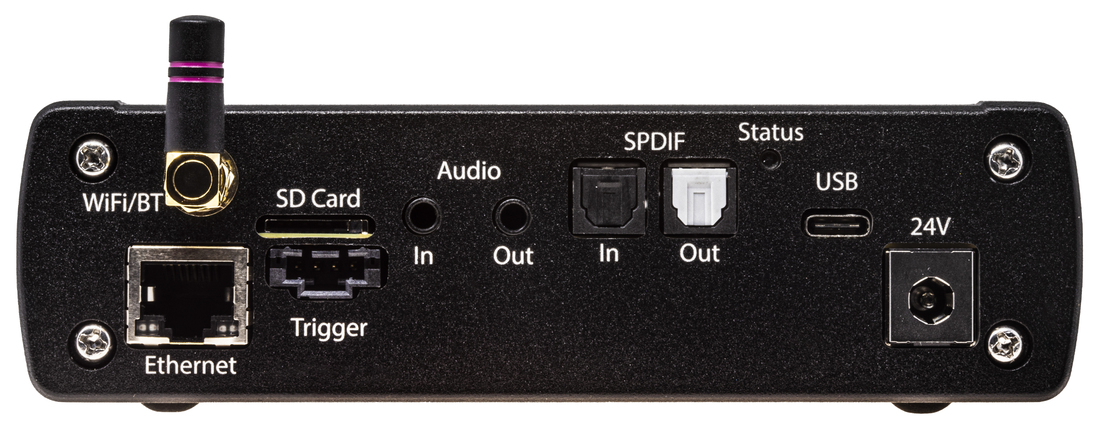

• Variety of audio input/output interfaces
• High Speed USB Interface for audio/control communication
• High Speed Ethernet Interface for audio/control communication (Support Planned in future release)
• Wifi/Bluetooth Support for Remote Control/triggering options (Support Planned in future release)

2. A²B Analyzer Studio - Software Highlights

• GUI
• Intuitive GUI for device configuration and control
• No licensing requirements
• Capture/playback of Real-time audio streams and bus traffic on PC
• Inject test tones/streams from PC on to the bus for debug
• A²B Network/node management and diagnostics
• Audio streaming over USB using ASIO/ALSA/CoreAudio
• Support for Windows, Linux, MacOS
• SDK
  • Software Development Kit (SDK) to create custom applications using C/C++ and Python

The tool can be used in the following scenarios:

• Engineering – Design & Development
• Test & Validation
• Pre-production Testing
• CE/FCC certification process is underway
