Power Studio Designer

概述

优势和特点

Smart Design Assistance

  • Guided workflows for IC-level power supply design solutions
  • Optimized component recommendations (inductors, capacitors, FETs)
  • Export complete Bill of Materials (BOM) with manufacturer details

Deep Technical Validation

  • Real-time calculations across parameters and components
  • Efficiency optimization for power losses evaluation across the circuit
  • Loop gain, phase margin, and load transient visualization
  • Offline simulation with SIMPLIS and LTspice® support

Seamless Experience

  • Unified ADI part catalog shared across ADI Power Studio tools
  • Built with ADI’s new design system for a modern user experience
  • Design integration with ADI Power Studio Planner
  • Cloud-based for easy access and collaboration

How It Works

ADI Power Studio Designer is the next-generation tool for IC-level power supply design. It provides guided workflows, optimized component recommendations, and real-time performance analysis—helping engineers reach reliable solutions faster. Integrated with existing ADI Power Studio tools, it streamlines the path from device selection to analysis.

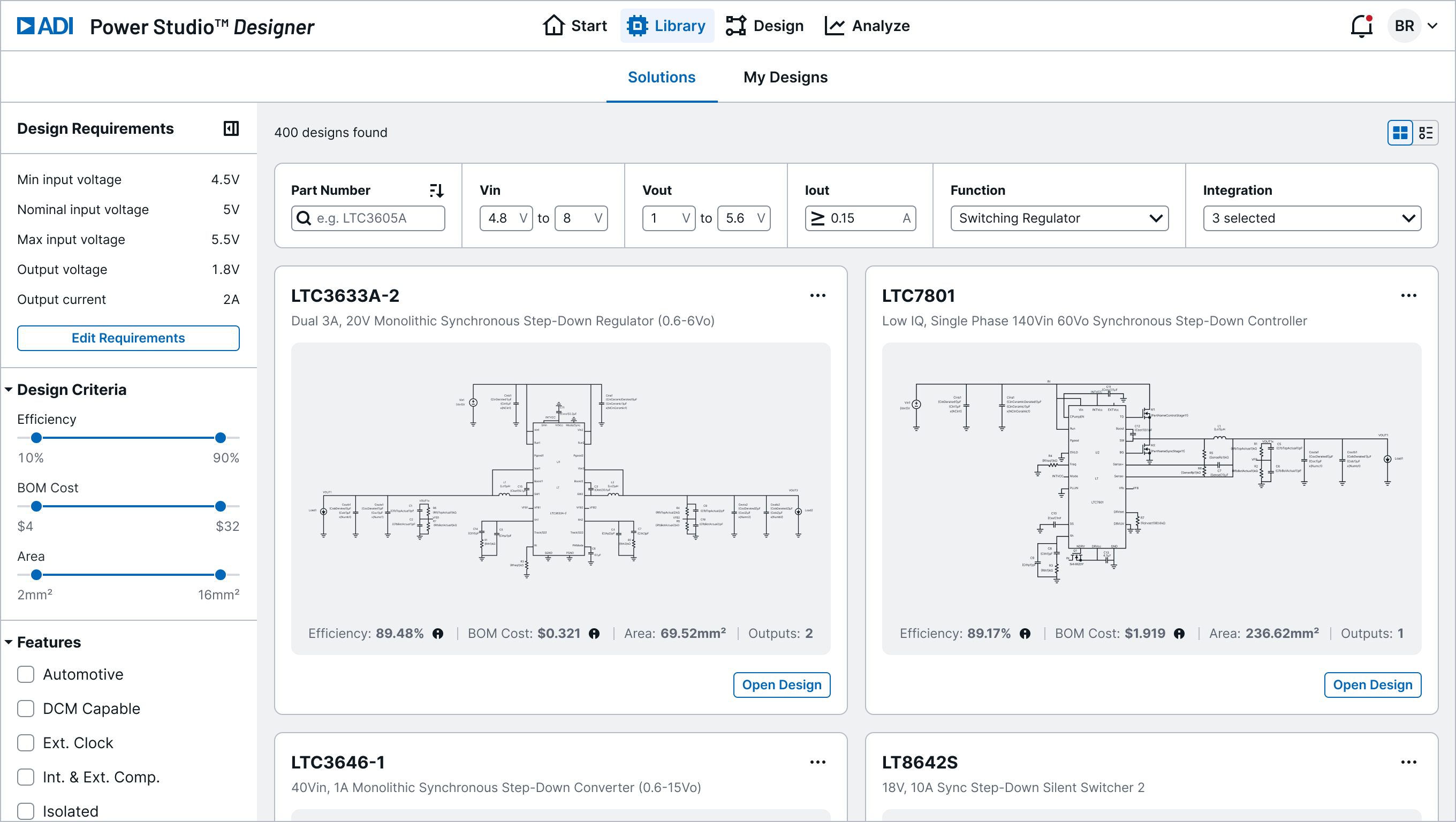

Guided Solution Explorer

Browse and filter ADI’s unified power supply design IC portfolio with guided workflows. Match requirements to recommended solutions, complete with ready-to-use solutions.

Guided Solution Explorer

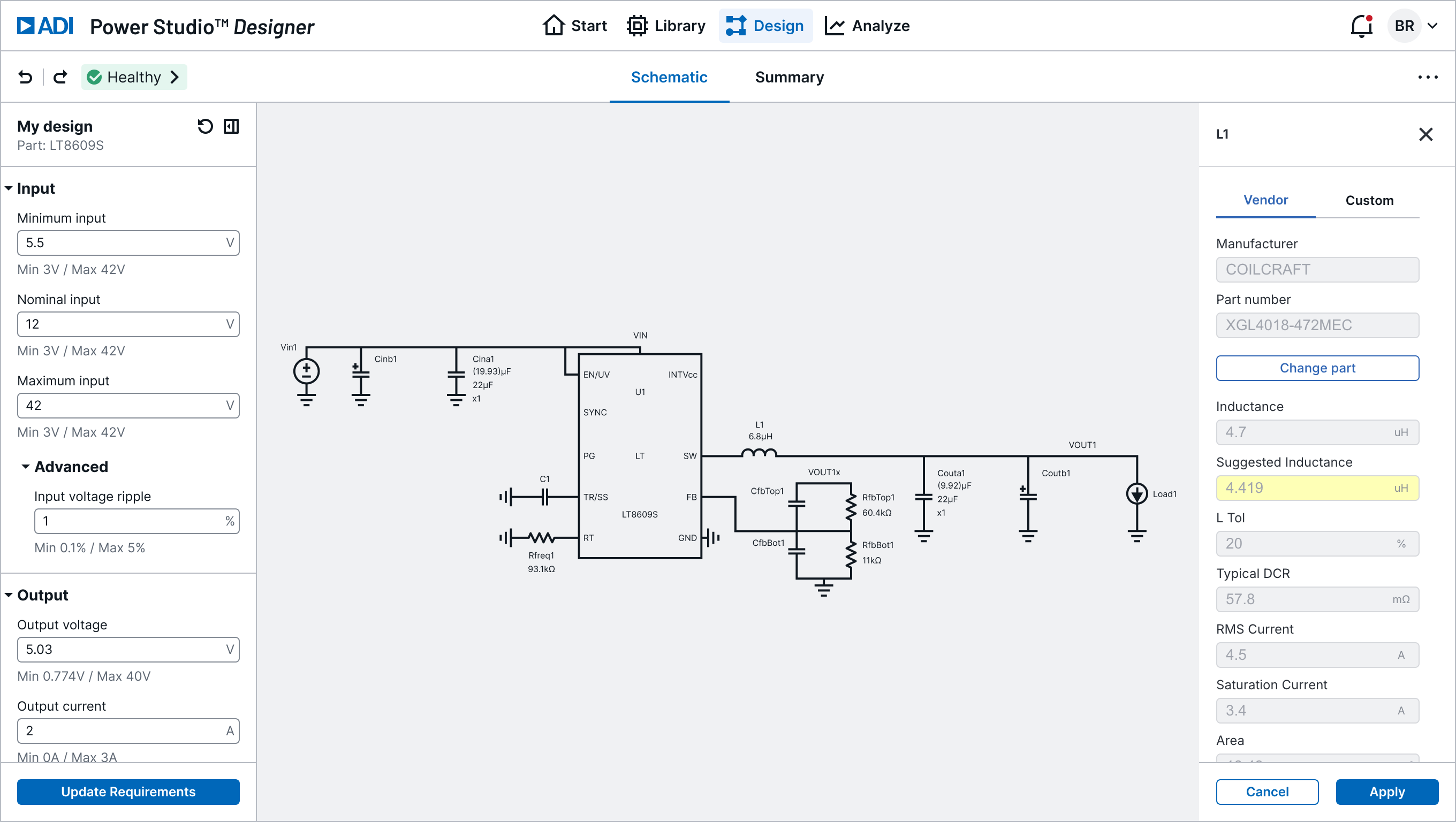

Interactive Schematic

Edit and customize circuit schematics in real time. Parameters, components, and vendor parts update instantly, making design exploration highly visual and interactive.

Interactive Schematic

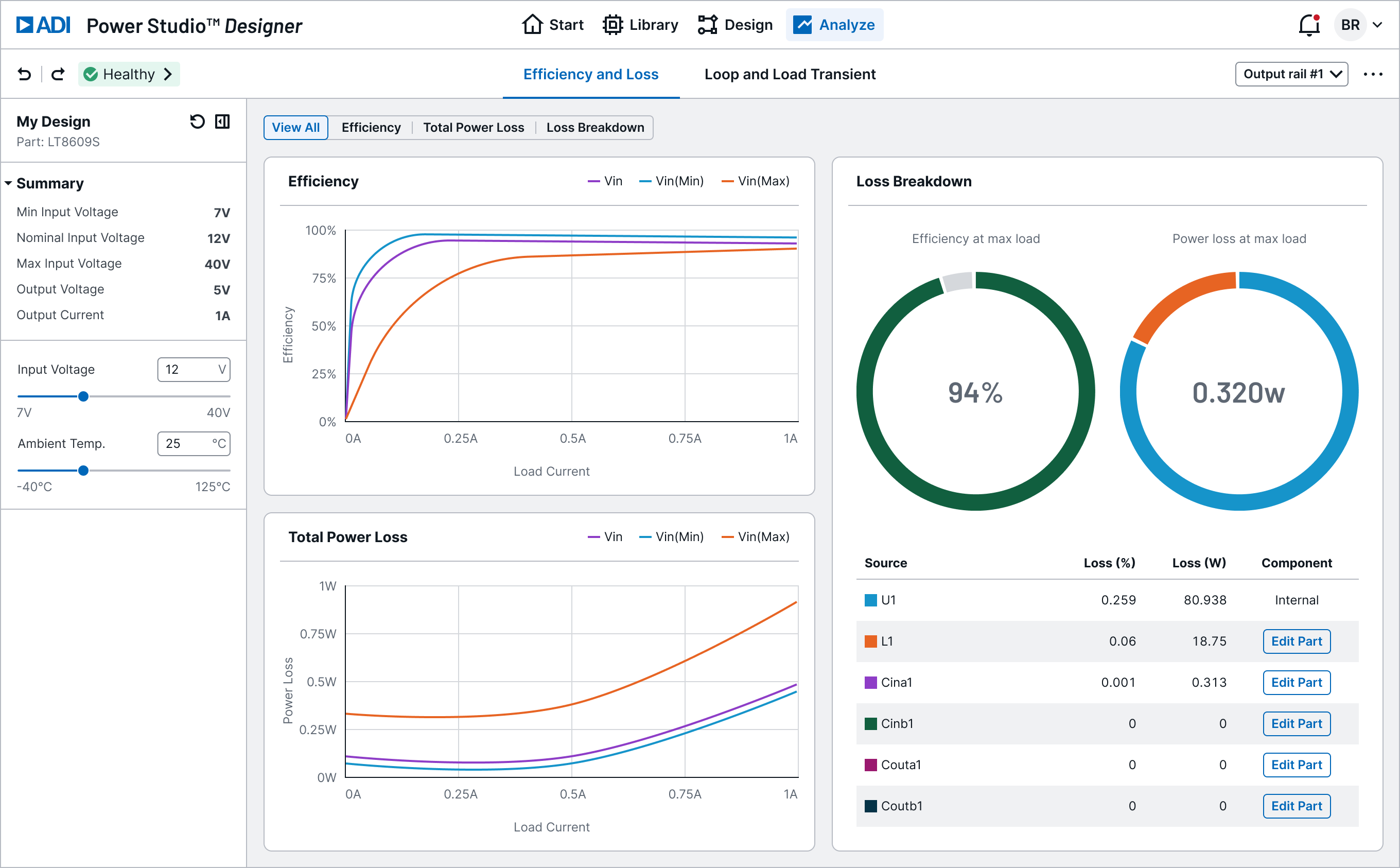

Efficiency Analysis

View efficiency, power loss, and loss breakdown at a glance. Charts and visualizations give immediate insight into design trade-offs across operating points.

Efficiency Analysis

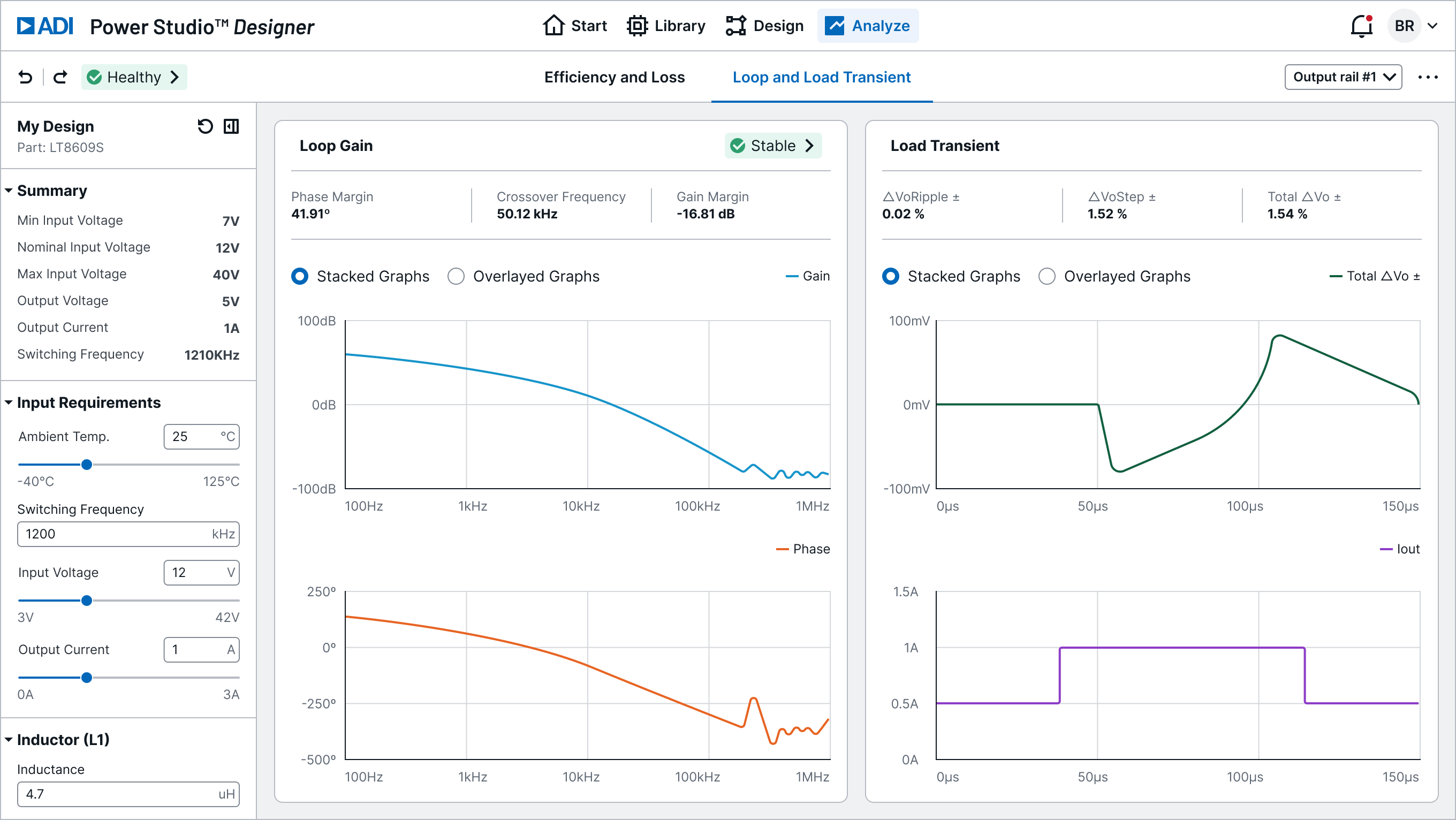

Loop and Load Analysis

Visualize loop gain, phase margin, and load transients to validate stability and response, ensuring designs meet real-world performance needs.

Loop and Load Analysis



Picture1ADI Power Studio

Have a look at the new tools for your design journey in the new ADI Power Studio suite.

View Power Studio Products

下载及相关软件

设计工具

LTpowerCAD和LTpowerPlanner

LTpowerCAD®程序是一款完整的电源设计工具，可显著简化电源设计任务。它专门针对采用凌力尔特（现为ADI公司的一部分）电源产品的用户应用提供元件值和性能估算值建议。在LTpowerCAD程序中，还有一个用于系统级电源设计和优化的LTpowerPlanner电源架构设计工具。

LTspice®

LTspice®是一款高性能SPICE仿真软件、原理图采集和波形查看器，集成增强功能和模型，简化了模拟电路的仿真。宏模型也包括在LTspice下载中，适用于大多数ADI开关稳压器、放大器以及用于通用电路仿真的器件库。

系统要求

  • Web-based application (no installation required)
  • Free with ADI account login
  • Integrates with ADI Power Studio Planner, LTspice, and other ADI Power Studio tools for deeper validation
