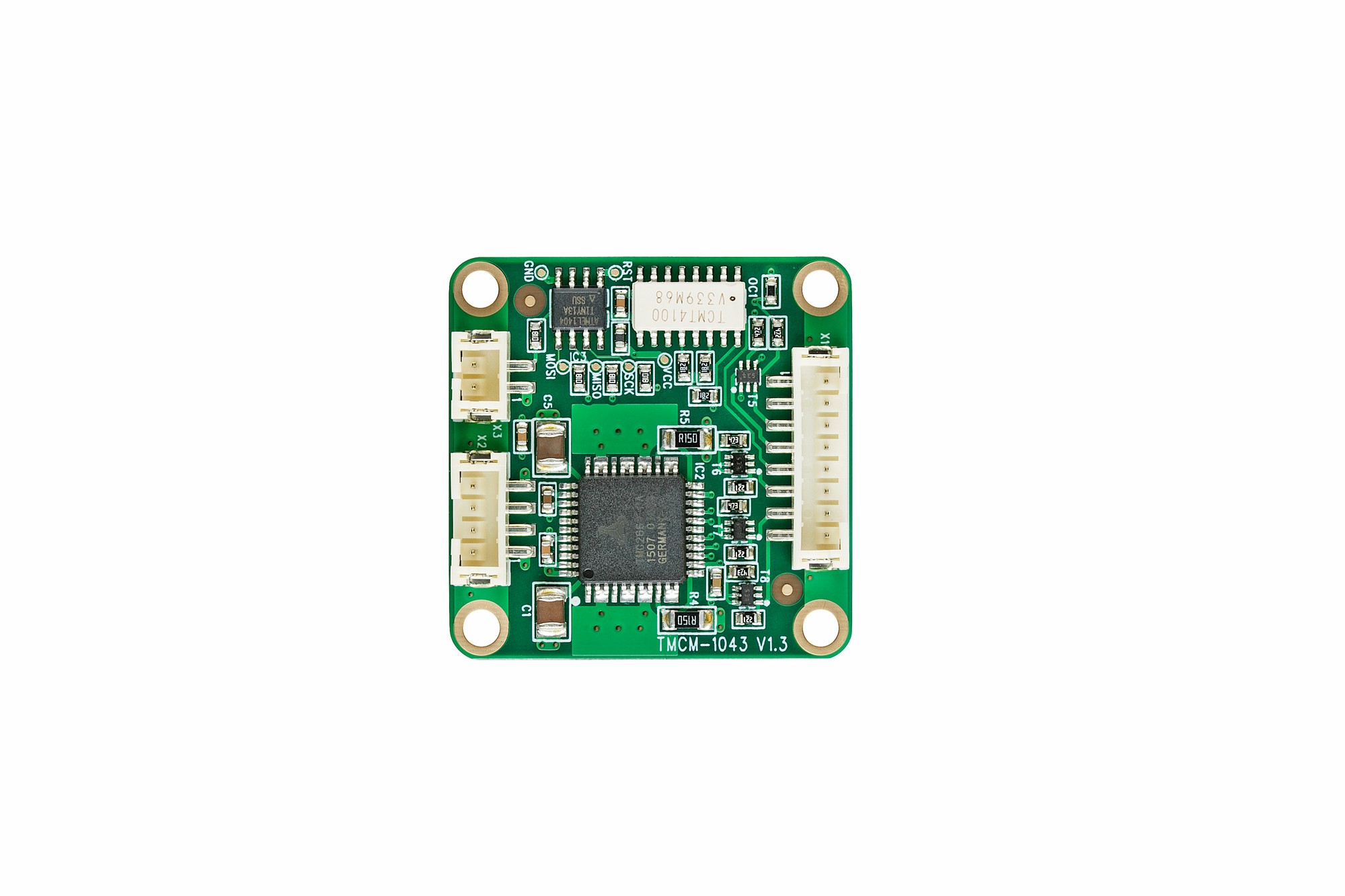

TMCM-1043

OBSOLETE PRODUCT

产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 2-phase stepper motor driver board
  • Step/Dir Interface
  • On-board Processor for initialization and diagnostic
  • Fixed Drive Capability 1.1A RMS (1.6A peak current) or
  • Program. Drive Capability up to 1.4A RMS (2A peak)
  • Voltage Range 12 to 24V DC nominal (9 to 28V max.)
  • Microstep Resolution 16 microsteps per full step input
  • Step Multiplier 256 microsteps per full step output with *16 step multiplier
  • Error Output overtemperature
  • spreadCycle™ high-precision chopper
  • Compact Size 37 x 37 x 8.2mm3
  • Temperature Range -30 to 50˚C
  • Mounting 4 holes for M3 screws for NEMA 17 motors

The TMCM-1043 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by Trinamic StallGuard2™, CoolStep™ and SpreadCycle™ chopper technology. The TMCM-1043 is capable of driving up to 1.6A of current from each output (with proper heatsinking). It is designed for an operating voltage of 9...28V. The device provides a S/D interface. With its optional programming TMCM-1043-KIT, the TMCM-1043 becomes a fully customizable smart driver stage allowing for adaption to a broad range of embedded motion control and mechatronics requirements.
TMCM-1043
OBSOLETE PRODUCT
tmcm-1043 tmcm-1043_blockdiagram
