TMC4670

OBSOLETE PRODUCT

数据手册
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Field Oriented Control (FOC) w/ Servo Controller
  • Torque Control (FOC),
  • Velocity Control, Position Control
  • Feed Forward Offsets
  • Integraded ADCs
  • Encoder Engine: Hall analog/digital, Encoder analog/digital, 2nd digital Encoder
  • Supports 3-Phase PMSM (FOC3) and 2-Phase Stepper Motors (FOC2)
  • PWM Engine including SVPWM
  • SPI Communication Interface

The TMC4670 is a single-axis servo motor controller for industrial automation, embedded servo control and other automated equipment applications. It is suitable for 3-phase BLDC and 2-phase stepper motors. The device is designed for an operating voltage of 1.2V, 2.5V and 3.3V . The device provides an a/b/n incremental, digital hall, analog hall and analog sincos encoder and SPI interface.

APPLICATIONS
  • Robotics
  • Pick and Place Machines
  • Semiconductor Handling
  • Factory Automation
  • E-Mobility
  • Laboratory Automation
  • Blowers
  • Pump
TMC4670
OBSOLETE PRODUCT

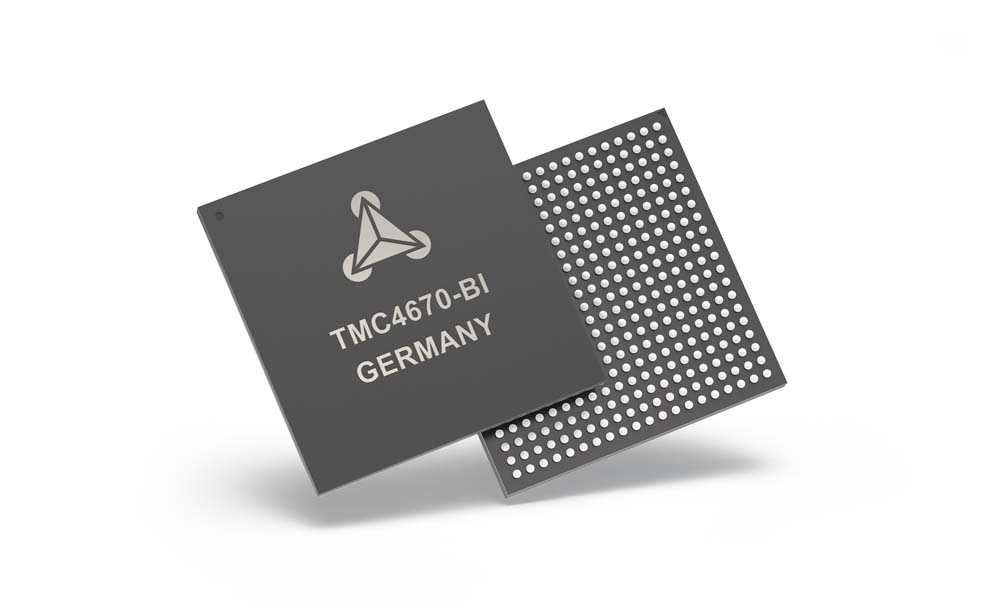

tmc4670-bi tmc4670-v2
