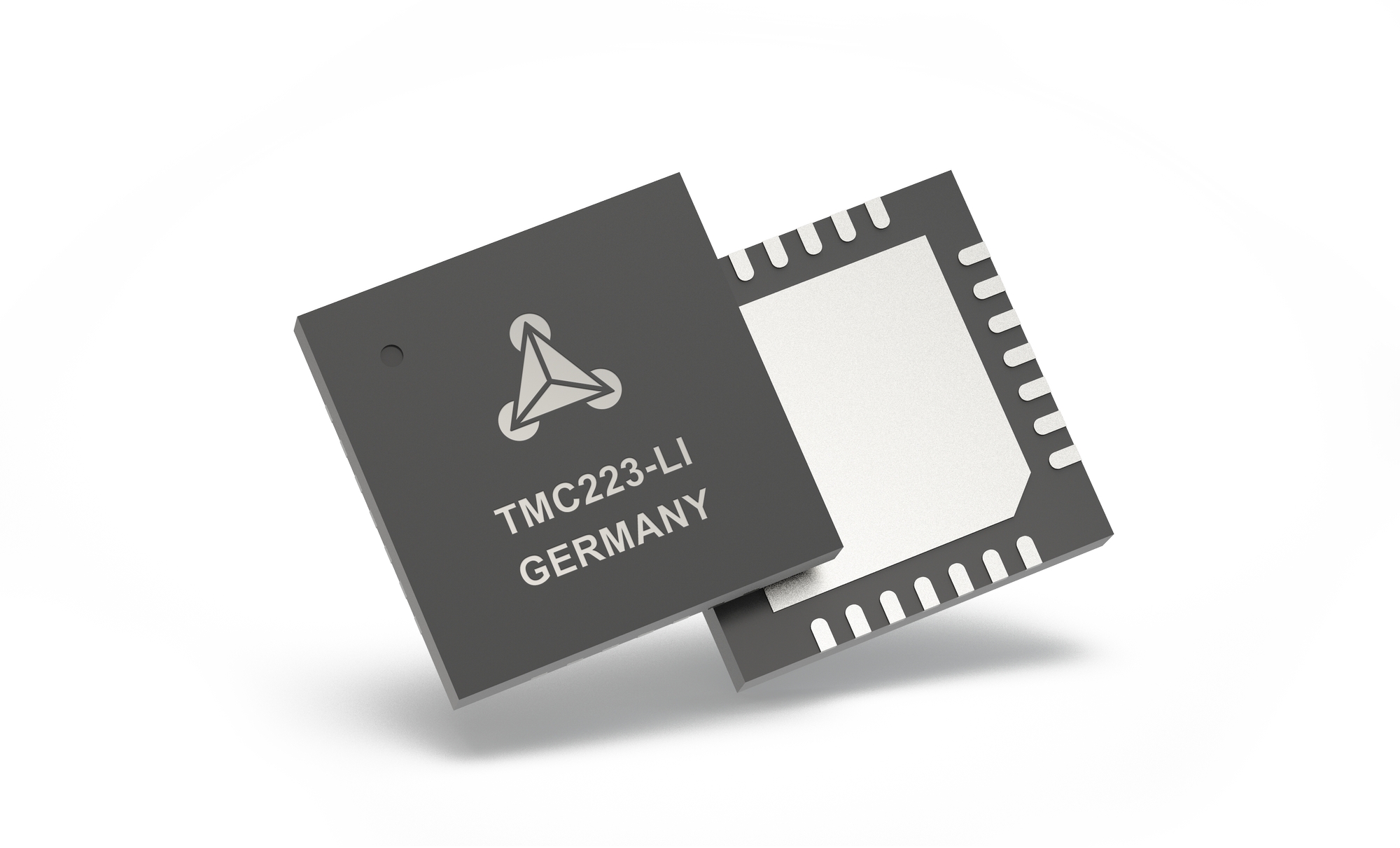

TMC223

OBSOLETE PRODUCT

数据手册 (Rev. 1.06)

Viewing:

概述

Motor driver

Controls one stepper motor with four bit micro stepping
Programmable Coil current up to 800 mA / Supply voltage range operating range 8V to 29V
Fixed frequency PWM current control with automatic selection of fast and slow decay mode
Full step frequencies up to 1 kHz
High temperature, open circuit, short, over-current and under-voltage diagnostics

Motion Controller

Internal 16-bit wide position counter
Configurable speed and acceleration settings
Build-in ramp generator for autonomous positioning and speed control
On-the-fly alteration of target position
Reference switch input available for read out

Two wire serial interface

Transfer rates up to 350 kbps
Diagnostics and status information as well as motion parameters accessible
Field-programmable node addresses (32)

Sensorless Stall Detection

GetFullStatus1 & GetFullStatus2 with parameters concerning stall detection
SetStallParam to set stall detection parameters

The TMC223 is a combined micro-stepping stepper motor motion controller and driver with RAM and OTP memory and integrated sensorless stall detection. The RAM or OTP memory is used to store motor parameters and configuration settings. The TMC223 allows up to four bit of micro stepping and a coil current of up to 800 mA. After initialization it performs all time critical tasks autonomously based on target positions and velocity parameters. Communications to a host takes place via a two wire serial interface. Together with an inexpensive micro controller the TMC223 forms a complete motion control system. The TMC223 is fully upwards compatible to the TMC222.
