TMC2041
过期TMC2041
产品详情
- Two 2-phase stepper motors
- Drive Capability up to 2x 1.1A coil current (2x 1.5A peak)
- Parallel Option for one motor at 2.2A (3A peak)
- Voltage Range 4.75 to 26V DC
- SPI & Single Wire UART for configuration and diagnostics
- Highest Resolution up to 256 microsteps per full step
- microPlyer™ microstep interpolation
- spreadCycle™ highly dynamic motor control chopper
- stallGuard2™ high precision sensorless motor load detection
- coolStep™ current control for energy savings up to 75%
- Full Protection & Diagnostics

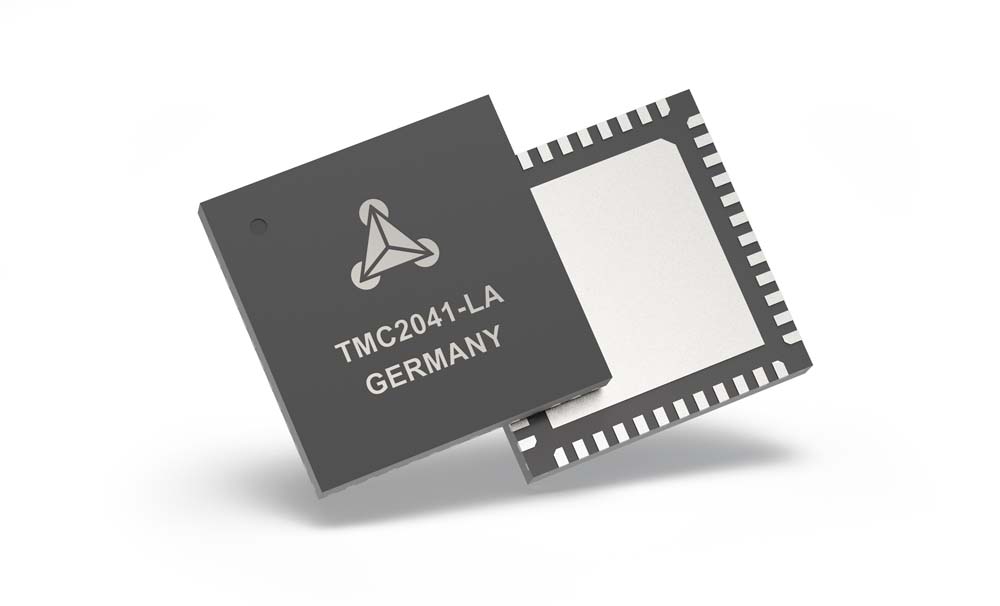

- Compact Size 7x7mm2 QFN48 package
The TMC2041 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the sensorless stall detection technology StallGuard2™, the sensorless load dependent current control CoolStep™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2041 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC2041 is designed for a supply voltage of 5 to 26V. The device has a SPI interface for configuration and diagnostics and a step and direction interface.
APPLICATIONS- Office Automation
- Antenna Positioning
- 3D printers
- Battery powered applications
- Printer and Scanner
- Pumps and Valves
- Medical Applications
- Office and Laboratory equipment
