PD-013

OBSOLETE PRODUCT

产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

Highlights

  • Remote controlled diagnostics and parameterization (RS485)
  • Reference move and turn CW / CCW via RS485
  • Stand-alone operation, adjusted via RS485
  • Fully protected drive
  • Digital selection of motor current and standby current
  • Local reference move using sensorless StallGuard feature or reference switch
  • All setup parameters are stored in internal EEPROM, no bus system required in end application
  • Micro step resolution can be changed to get high accuracy or high speed with the possibility to combine both
  • Different chopper modes allow best adaptation to application / motor
  • Many adjustment possibilities make this module the solution for a great field of demands

Motor type

  • Coil current from 300mA to 1A RMS (1.5A peak)
  • 7V to 30V nominal supply voltage

PANdrive Motor data

  • all PANdrive motors optimized for 1A RMS coil current
  • 200 fullsteps per revolution
  • please refer to motor data sheet for detailed motor information

Other

  • pluggable JST connectors
  • RoHS compliant latest from 1 July 2006

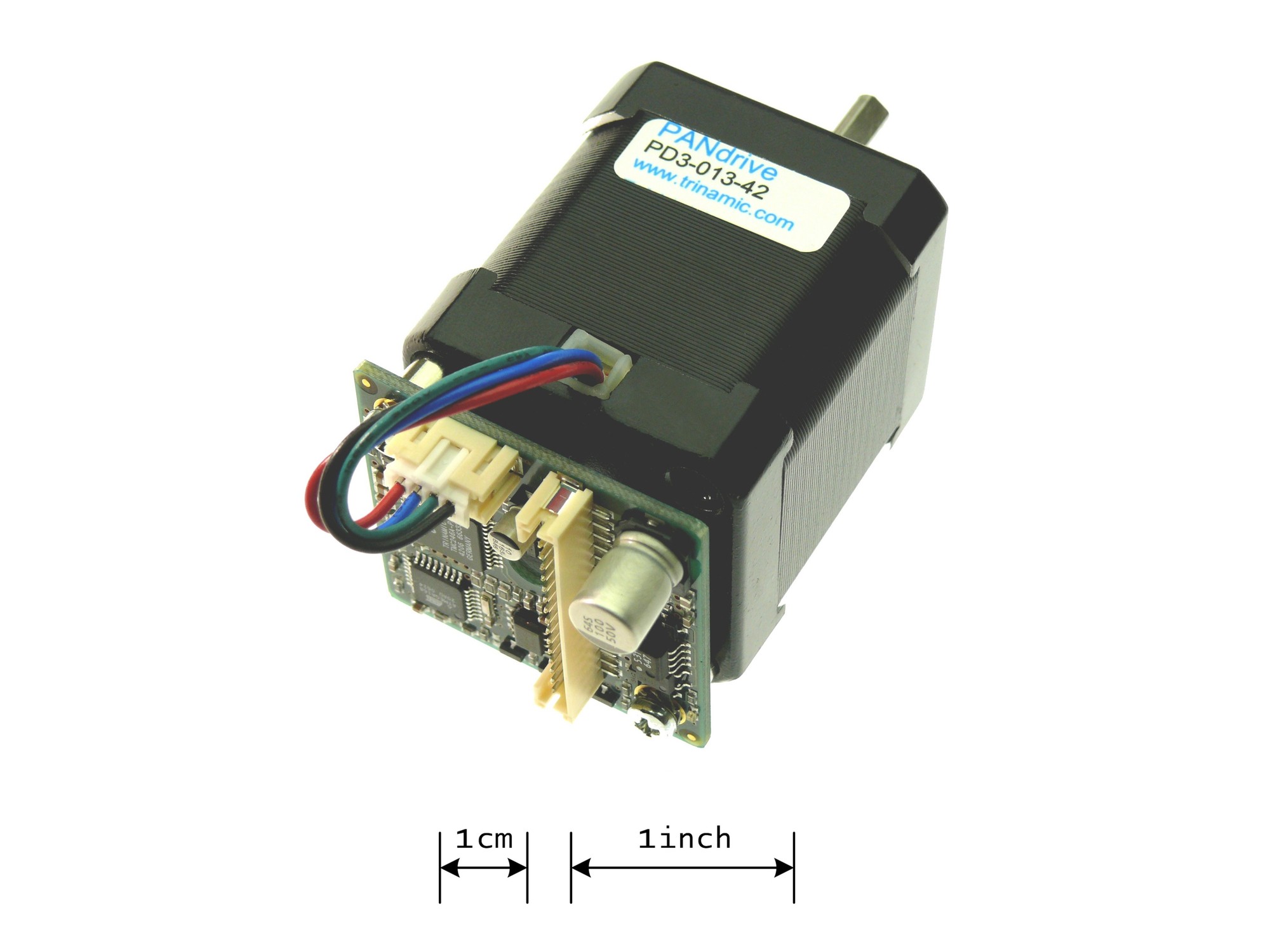

The PD-013-42 is a full mechatronic solution including a 42mm flange motor (NEMA17). It joins a convenient controller electronic with a range of different motor torques. The PD-013-42 offers three motor torques options and can be controlled via an optical isolated Step/Direction interface. The power supply, interface and the multi purpose I/Os can be connected with small JST connectors. The firmware of the module can be updated via the serial interface. With the integrated StallGuard feature it is possible to detect overload and stall of the motor.

Applications

  • Mechatronic step-/ direction stepper driver for general decentralized applications
  • Robotics
  • Remote diagnostics / feedback allows for high-reliability drives
