MAX334
PRODUCTIONHigh Speed Quad SPST Analog Switch
- Part Models
- 5
- 1ku List Price
- Starting From $5.77
Overview
- RDS(ON) 50Ω (max.)
- Guaranteed Break-Before-Make Switching
- Single or Bipolar Supply Operation
- CMOS and TTL Logic Compatible
- Faster, Lower RON Replacement for DG201 and DG211

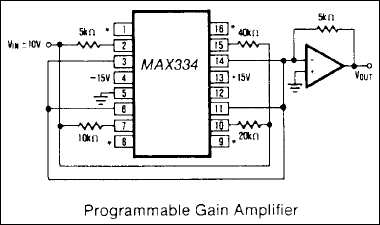

The MAX334 is a quad single-pole-single-throw, normally closed (SPST, NC) analog switch, pin compatible with the Harris Hl-201 HS and Siliconix DG2n The MAX334 has guaranteed break-before-make switching (tOFF < tON), while featuring fast switching speeds. Turn-on time is less than 100ns and turn-off time is less than 50ns; channel on resistance is 50 ohms maximum. CMOS inputs provide reduced input loading and very low leakage currents.
The MAX334 is also a direct replacement for the DG201 and DG211, featuring ¼ the on resistance and five times the speed.
The MAX334 may be used with split supplies ( ±5V to ±15V) or single positive supplies (+5V to +30V) while retaining CMOS and TTL logic compatible inputs, and maintaining high switching speed.
APPLICATIONS
- Sample and Hold Circuits
- Winchester Disk Drives
- Test Equipment
- Communications Systems PBX, PABX
- Guidance and Control Systems
- Heads-up Displays
- Military Radios
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX334CPE+ | Plastic Dual-In-Line, Narrow (0.3in) | ||
| MAX334CWE+ | Small-Outline IC, Wide (0.3in) | ||
| MAX334CWE+T | Small-Outline IC, Wide (0.3in) | ||
| MAX334EWE+ | Small-Outline IC, Wide (0.3in) | ||
| MAX334EWE+T | Small-Outline IC, Wide (0.3in) |
