LTC1153
PRODUCTIONAuto-Reset Electronic Circuit Breaker
- Part Models
- 6
- 1ku List Price
- Starting From $3.85
Overview

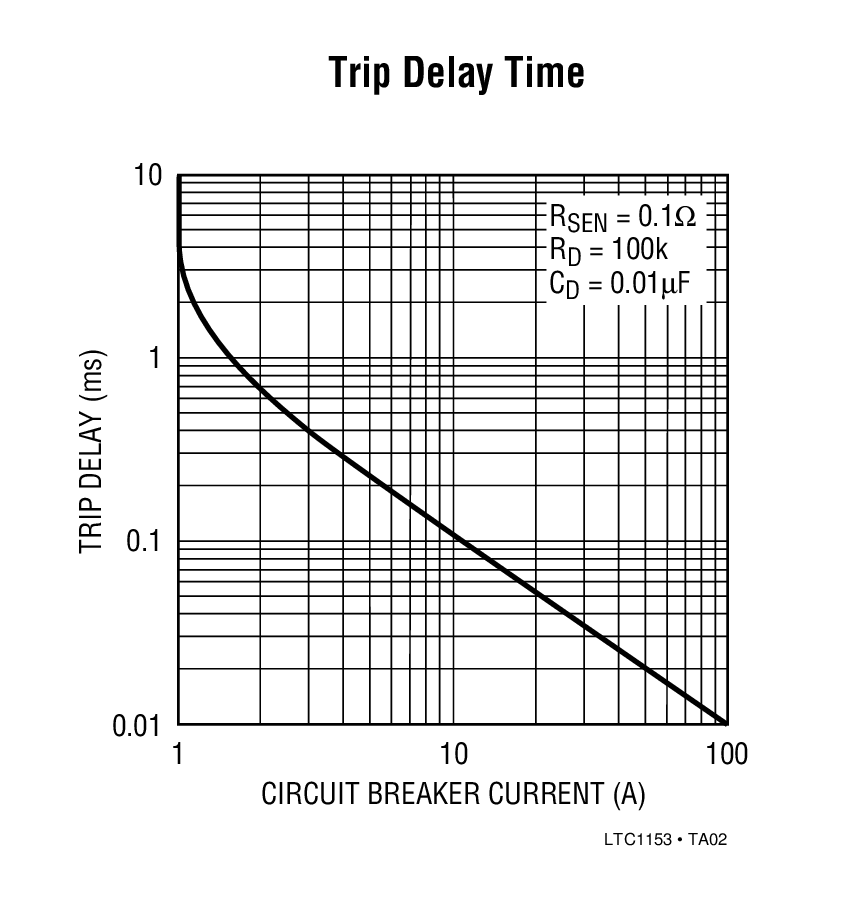

- Programmable Trip Delay: 15µs to >100ms
- Programmable Trip Current: 1mA to >20A
- Programmbale Auto-Reset Time: 1ms to >10 sec.
- 4.5V to 18V Supply Range
- Drives Low RDS(ON) N-Channel MOSFETs
- Status Output Indicates Fault Condition
- Thermal Trip with PTC Thermistor
- 8µA IQ in Standby Mode
- No External Charge Pump Capacitors
- Available in 8-Pin SOIC
The LTC1153 electronic circuit breaker drives a low cost N-channel MOSFET to interrupt power to a sensitive electronic load in the event of an over-current condition. The breaker remains tripped for a period of time set by an external timing capacitor and then is automatically reset. This cycle continues until the over-current condition is removed, protecting both the sensitive load and the MOSFET switch.
The trip current, trip delay time and auto-reset period are programmable over a wide range to accommodate a variety of load impedances. An active high shut down input is also provided and interfaces directly to a PTC thermistor for thermal circuit breaking. An open-drain output is provided to report breaker status to the µP.
The LTC1153 is available in both 8-pin DIP and 8-pin SOIC packages.
Applications
- Power Bus Circuit Breaker
- SCSI Termination Power Protection
- Regulator Over-Current Protection
- Battery Short-Circuit Protection
- DC Motor Stall Protection
- Sensitive System Power Interrupt
Documentation
Data Sheet 1
Application Note 3
Design Note 1
Spec Notice 1
Product Selector Card 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|

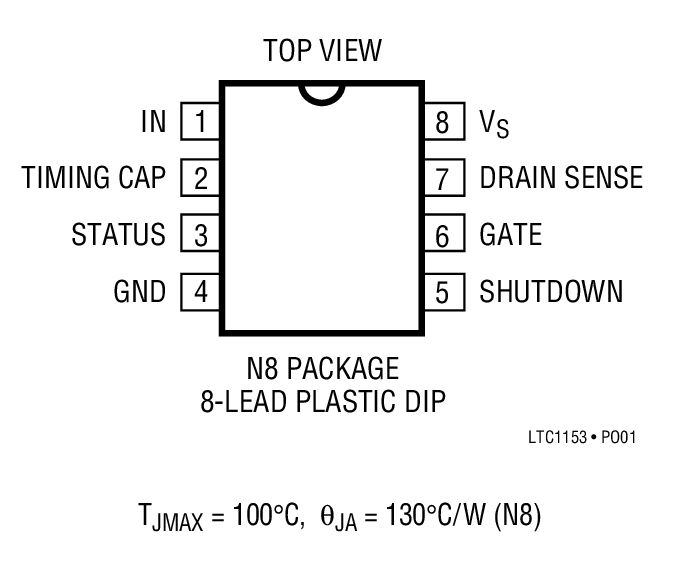

| LTC1153CN8#PBF | 8-Lead PDIP (Narrow 0.3 Inch) | ||

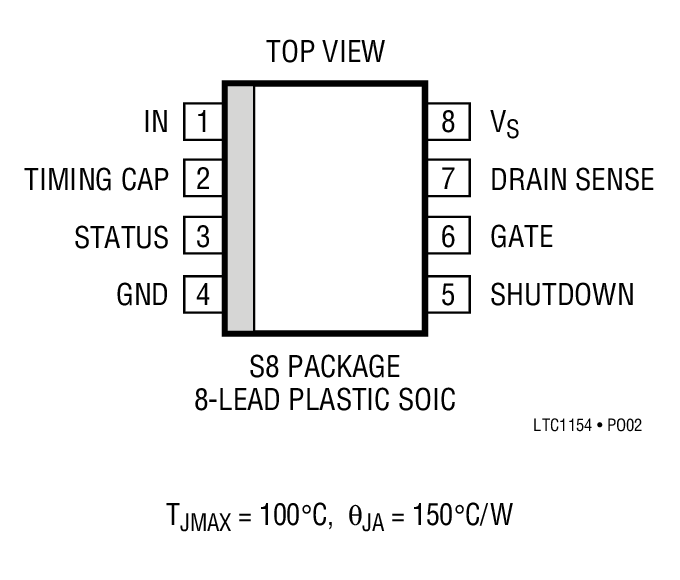

| LTC1153CS8#PBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LTC1153CS8#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LTC1153IN8#PBF | 8-Lead PDIP (Narrow 0.3 Inch) | ||
| LTC1153IS8#PBF | 8-Lead SOIC (Narrow 0.15 Inch) | ||
| LTC1153IS8#TRPBF | 8-Lead SOIC (Narrow 0.15 Inch) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package |
||
| LTC1153CN8#PBF | PRODUCTION | |
| LTC1153IN8#PBF | PRODUCTION | |
|
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package |
||
| LTC1153CN8#PBF | PRODUCTION | |
| LTC1153IN8#PBF | PRODUCTION | |
|
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG] |
||
| LTC1153CN8#PBF | PRODUCTION | |
| LTC1153IN8#PBF | PRODUCTION | |
|
Nov 14, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2) |
||
| LTC1153CS8#PBF | PRODUCTION | |
| LTC1153CS8#TRPBF | PRODUCTION | |
|
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM |
||
| LTC1153CS8#PBF | PRODUCTION | |
| LTC1153CS8#TRPBF | PRODUCTION | |
| LTC1153IS8#PBF | PRODUCTION | |
| LTC1153IS8#TRPBF | PRODUCTION | |
|
Dec 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2) |
||
| LTC1153IS8#PBF | PRODUCTION | |
| LTC1153IS8#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
