EVAL-ADV7625
ADV7625 Evaluation Board
トップへ
製品概要
製品概要

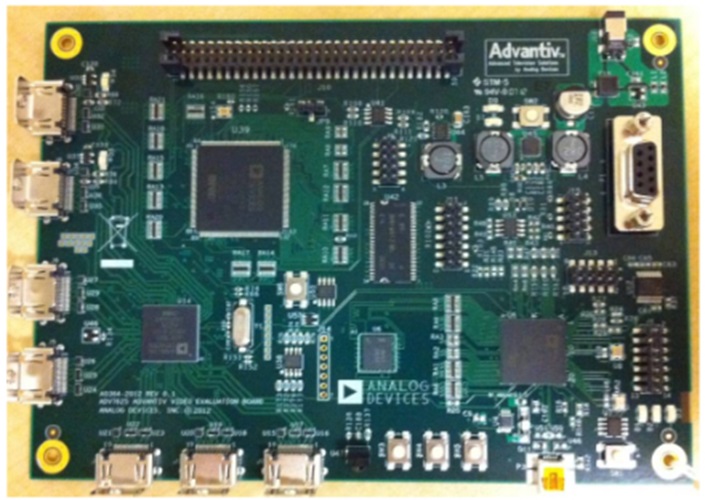

The Advantiv® EVAL-ADV7625-SMZ video evaluation board (AVEB) is a low cost solution for evaluating the performance of the ADV7625 HDMI transceiver.The evaluation board provides a Blackfin® ADSP-BF524 processor for system control. The ADSP-BF524 offers the potential to process audio (no audio software is included). The evaluation board includes software (firmware) that provides a serial command interface to control the board's functionality.
対象となる製品
関連資料
-
UG-603:Advantiv EVAL-ADV7625-SMZ Video Evaluation Board2015/09/11PDF371 kB
-
ADV7625 Design Support Files2015/09/10
-
EVAL-ADV7625-SMZ Board Schematic (Rev. 0.1)2014/01/20PDF383 kB
