製品概要

機能と利点

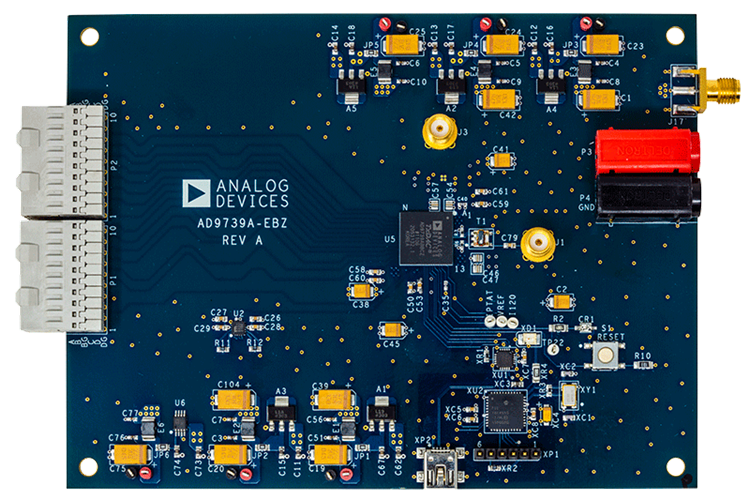

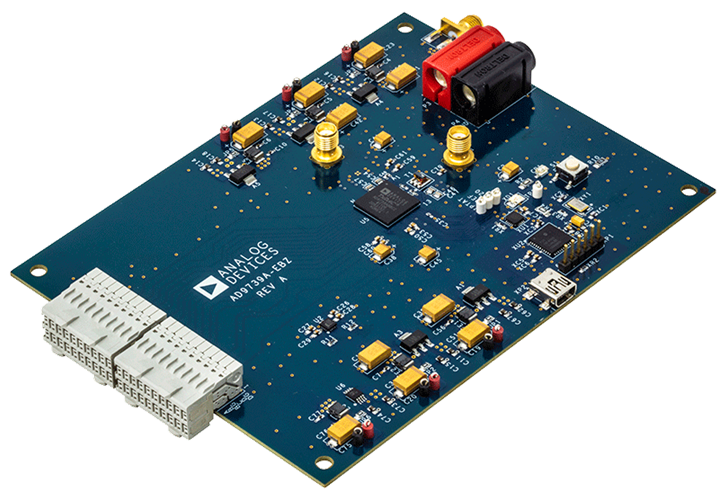

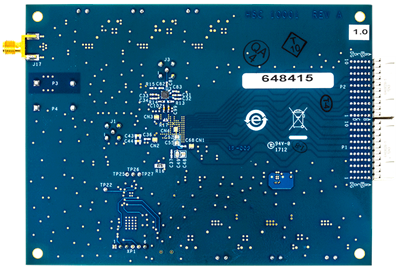

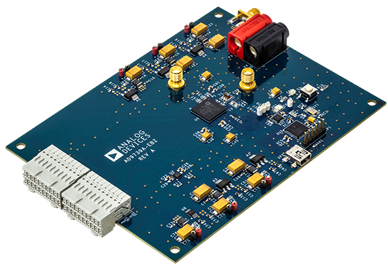

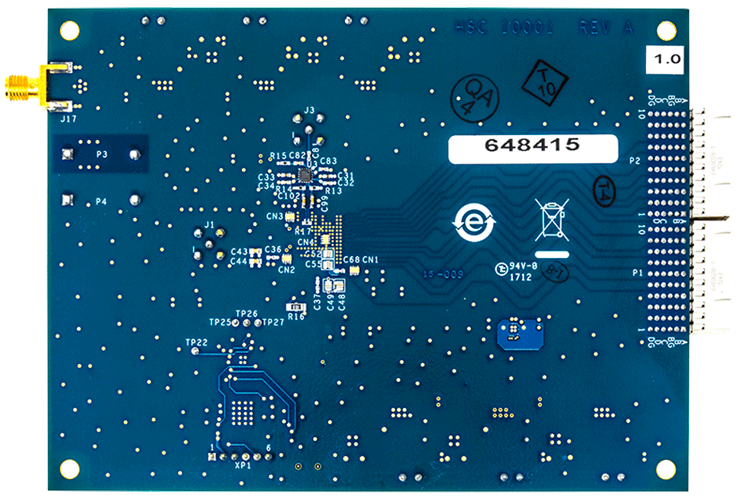

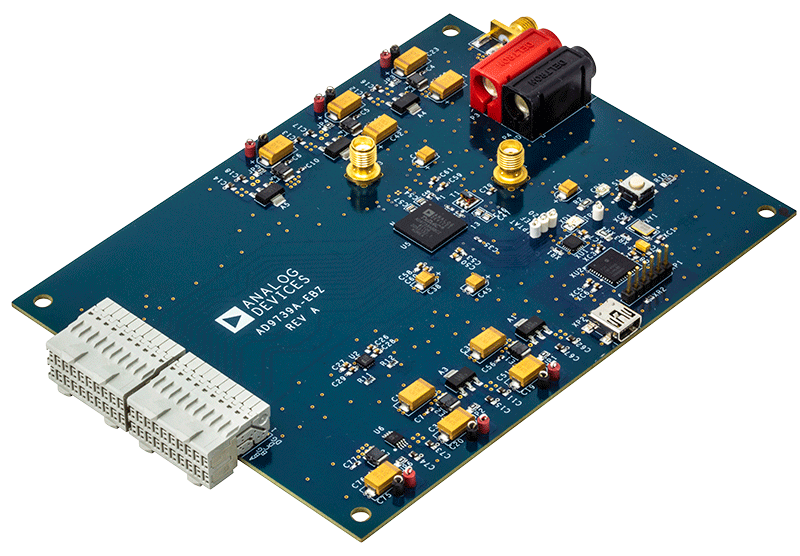

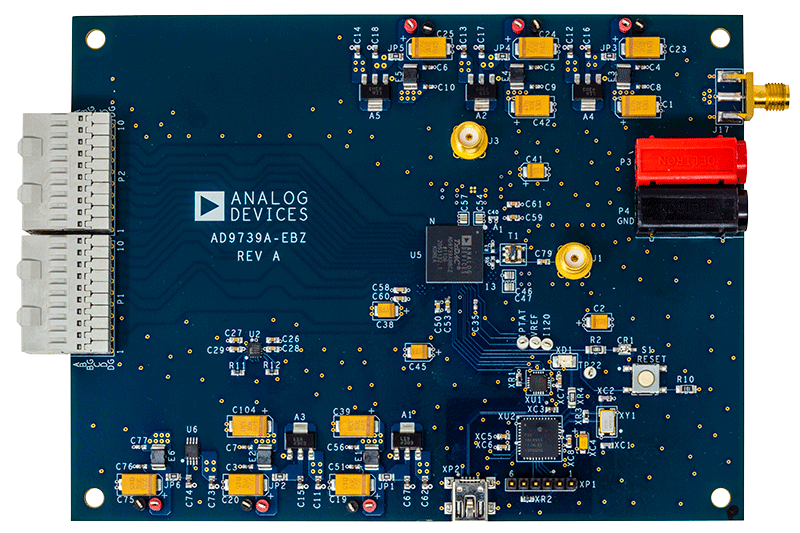

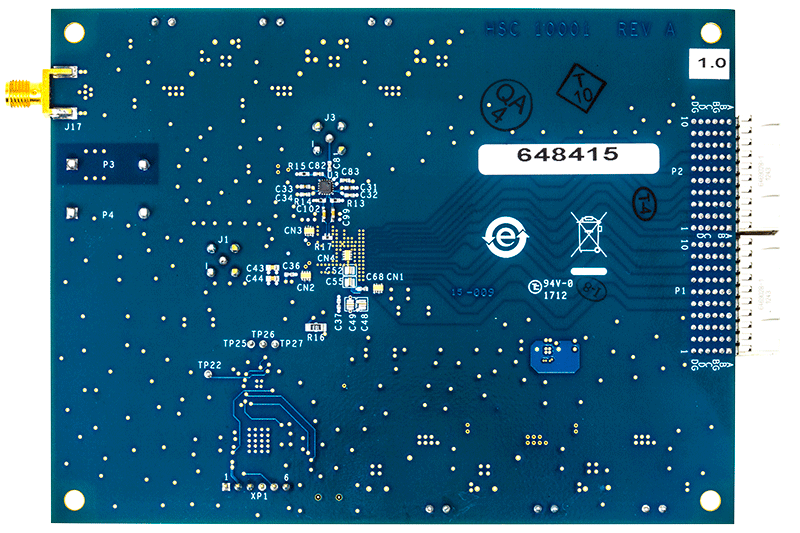

  • Evaluation board for the AD9739A
  • Includes options to evaluate the DAC
  • USB interface for configuration
  • Internal or external power supply regulation
  • On-board or external clock distribution
  • Data pattern generator and SPI software interfaces

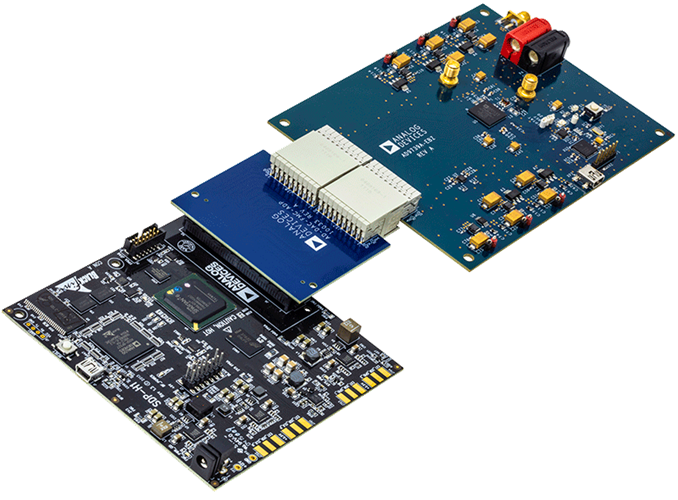

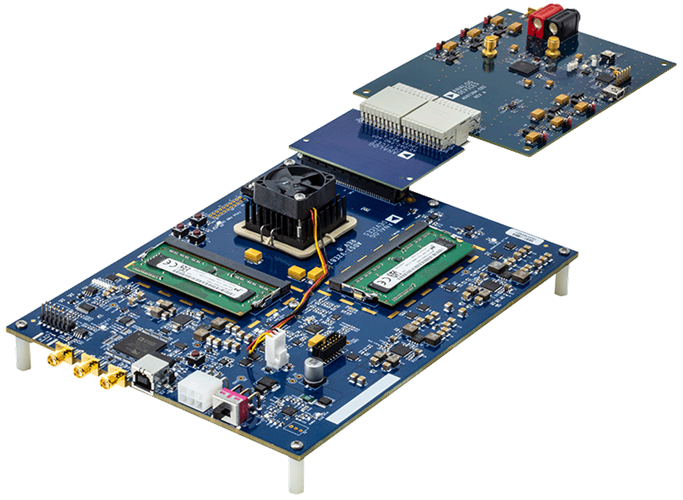

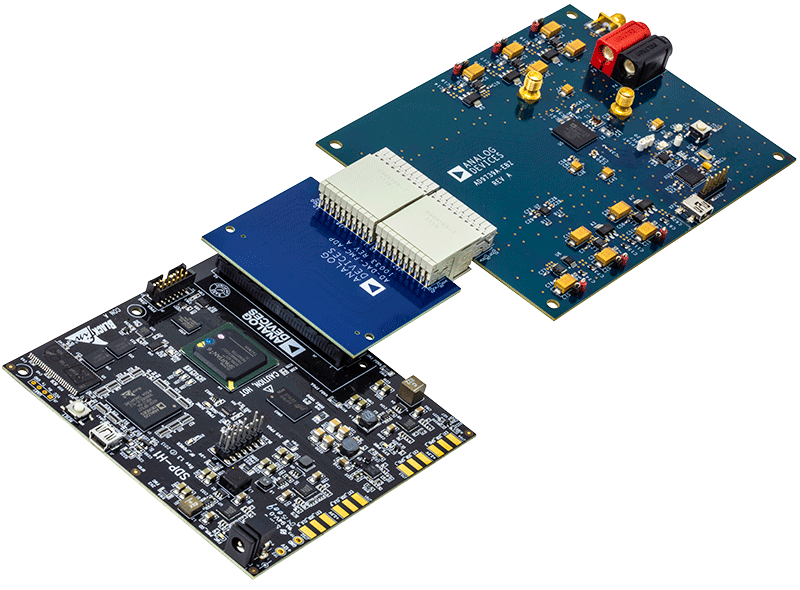

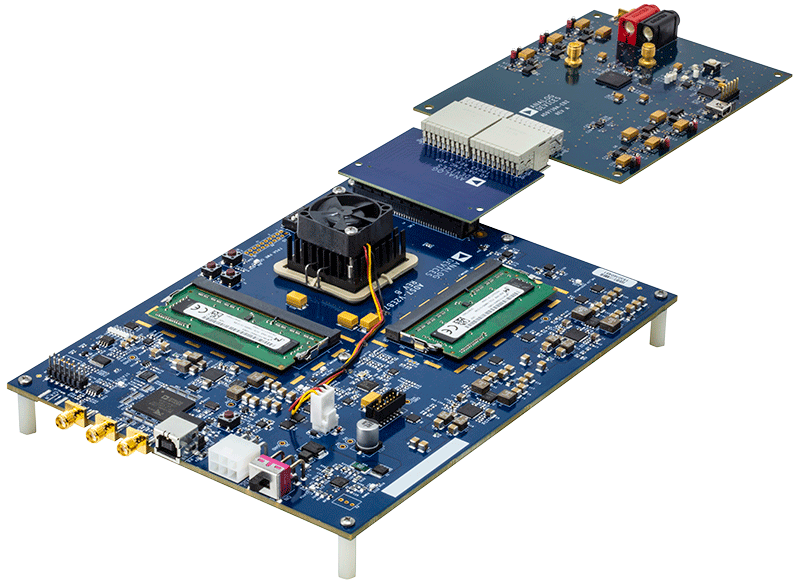

  • Compatible with EVAL-SDP-CH1Z or ADS7-V2EBZ

製品概要

This page contains evaluation board documentation and ordering information for evaluating the AD9739A.

マーケット＆テクノロジー

対象となる製品

関連資料

  • すべてを表示 (2)
  • ユーザ・ガイド (2)
    • Document Type

    ソフトウェア

    ACE Software

    ZIP
    128 KB
    ACE plug-in for Board.AD9739A 1.2019.46500 [1 14 20]
    Plug-in for evaluating the AD9739A and AD9737A high-speed DACs.
    EXE
    157 MB
    ACE Installer Software 1.30.3311.1463 [4 24 24]
    Analysis | Control | Evaluation (ACE) Software. Requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.
    ACE software page >

    ハードウェア (4)
