製品概要

製品概要

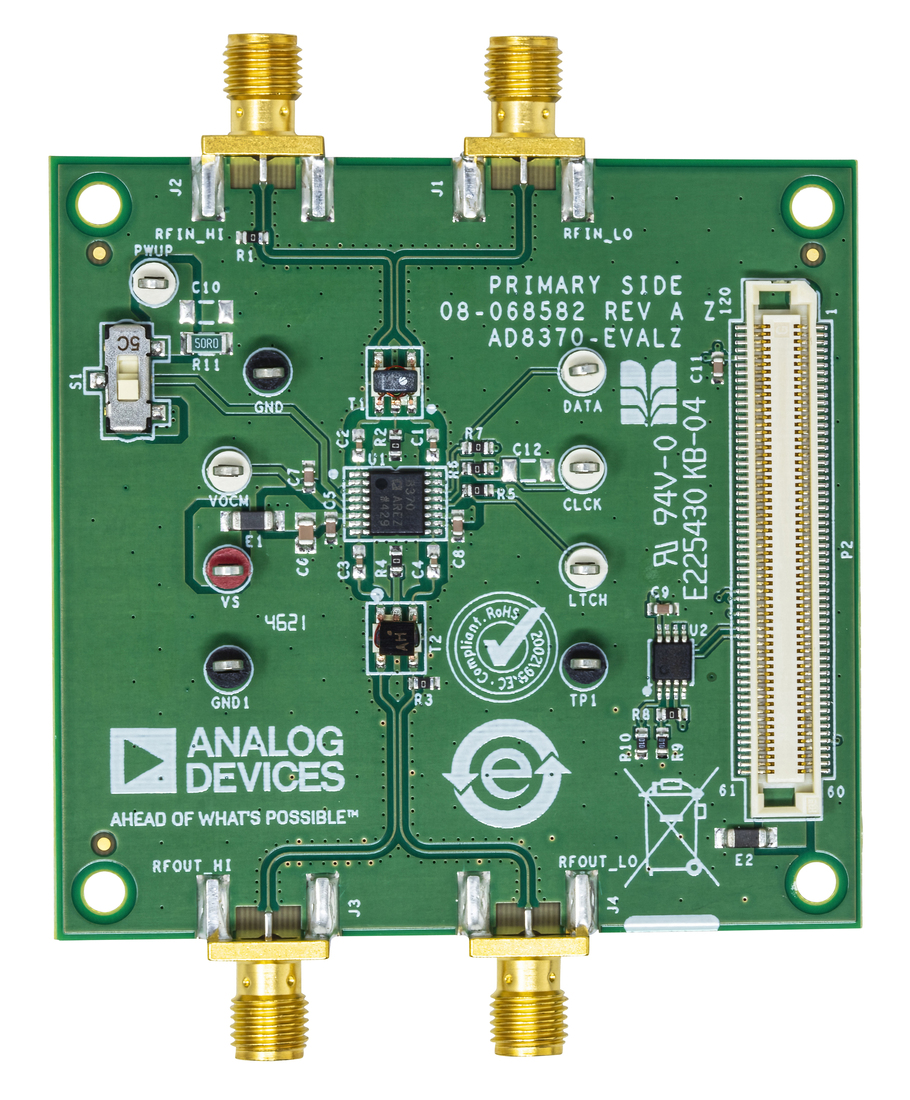

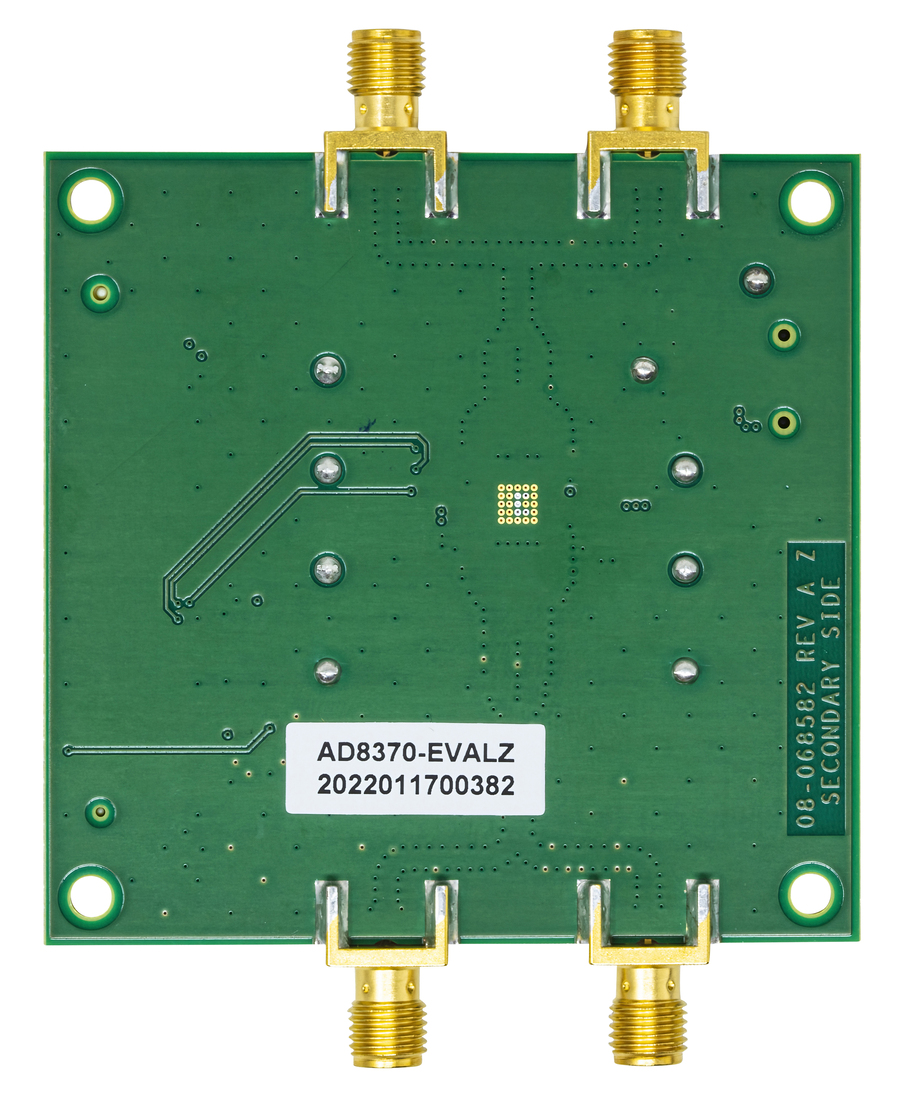

AD8370-EVALZ is a fully populated, 4-layer, FR4-based evaluation board designed to allow easy evaluation of all features of the AD8370 DVGA. The evaluation board contains bypassable transformers to allow single ended or differential inputs, and a 25 pin D-Sub connector for external digital control of the on chip SPI port. There is a single switch on this eval board which can be used to turn on and off the +5 V applied to the power pins. This evaluation board requires only a single supply within the range of 4.5 V to 5.5 V.

マーケット＆テクノロジー

対象となる製品

関連資料

  • すべてを表示 (2)
  • データシート (1)
  • 評価用設計ファイル (1)
    • Document Type

    ソフトウェア

    評価用ソフトウェア

    ZIP
    89 kB
    AD8370 Evaluation Board Software
    The AD8370 evaluation software requires the ADI AD4xxx USB adapter, a USB cable with USB mini-connector and a PC with USB connection. Installation on Windows 64-bit systems also requires the ADI Windows 7 drivers be installed as well.
