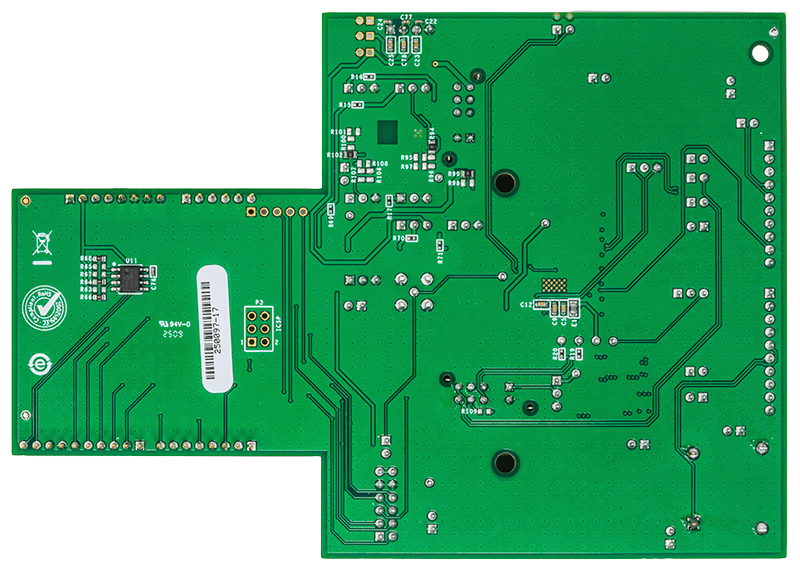

EVAL-AD4190-4
製品概要
機能と利点
- Fully-featured evaluation board for the AD4190-4
- On-board 2.5V ADR4525 and LTC6655 references
- ADXL1002 on-board vibration sensor
- PC control in conjunction with SDP-K1
- PC software for control and data analysis (time domain and frequency domain)
- Compatible interface with Analysis | Control | Evaluation (ACE) Software, IIO Scope, Python, and MATLAB
製品概要
The EVAL-AD4190-4ARDZ evaluation board features the AD4190-4, which is a 24-bit, multichannel, low-noise precision sigma-delta analog-to-digital converter (ADC).
The EVAL-AD4190-4ARDZ evaluation board connects to the USB port of the PC by connecting to the SDP-K1 controller board. A 5V USB supply by the PC is regulated to supply the AD4190-4 and support all necessary components.
The AD4190-4 ACE plug-in fully configures the AD4190-4 device register functionality and provides DC time domain analysis in the form of waveform graphs and associated noise analysis for ADC performance evaluation. The AC analysis is also provided by the software such as a fast fourier transform (FFT), which displays the first five harmonics of the following parameters: SNR, SFDR, S/N+D, and THD.
The EVAL-AD4190-4ARDZ is an evaluation board that allows the user to evaluate the features of the ADC. The user PC software executable controls the AD4190-4 over the USB through the SDP-K1 system demonstration platform (SDP) board.
Full specifications on the AD4190-4 are available in the AD4190-4 data sheet available from Analog Devices, Inc., and must be consulted with this user guide when using the EVAL-AD4190-4ARDZ evaluation board.
対象となる製品
はじめに
EQUIPMENT NEEDED
- EVAL-AD4190-4ARDZ evaluation board
- SDP-K1 system demonstration platform
- DC signal source
- USB cable
- PC running Windows® with USB 2.0 port
