DC437A
LT1964ES56 Demo Board | Negative Low Noise LDO Regulator, -2.3V ≤ VIN ≤ -20V, VOUT = -1.22V/-5V @ 200mA
トップへ
製品概要
製品概要

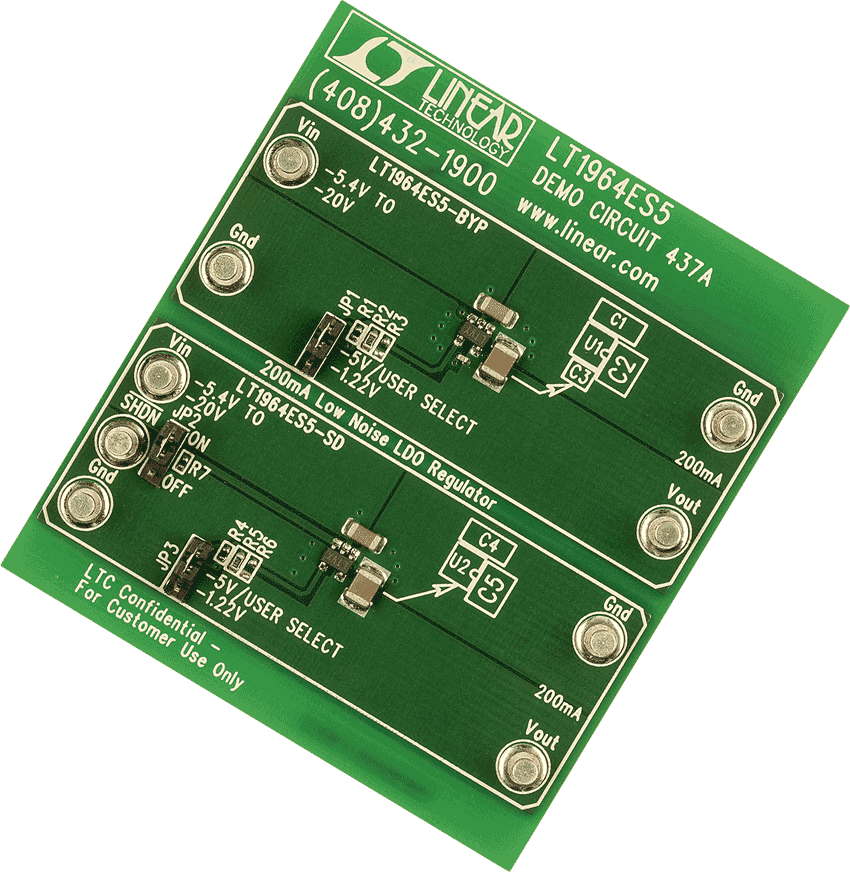

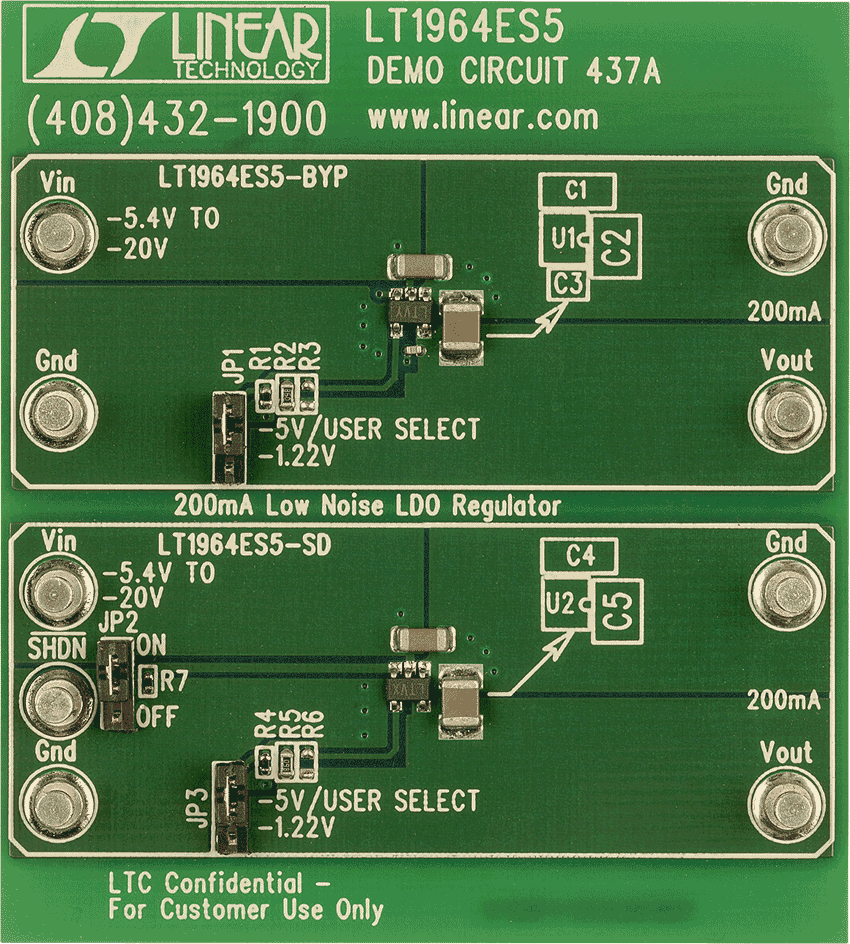

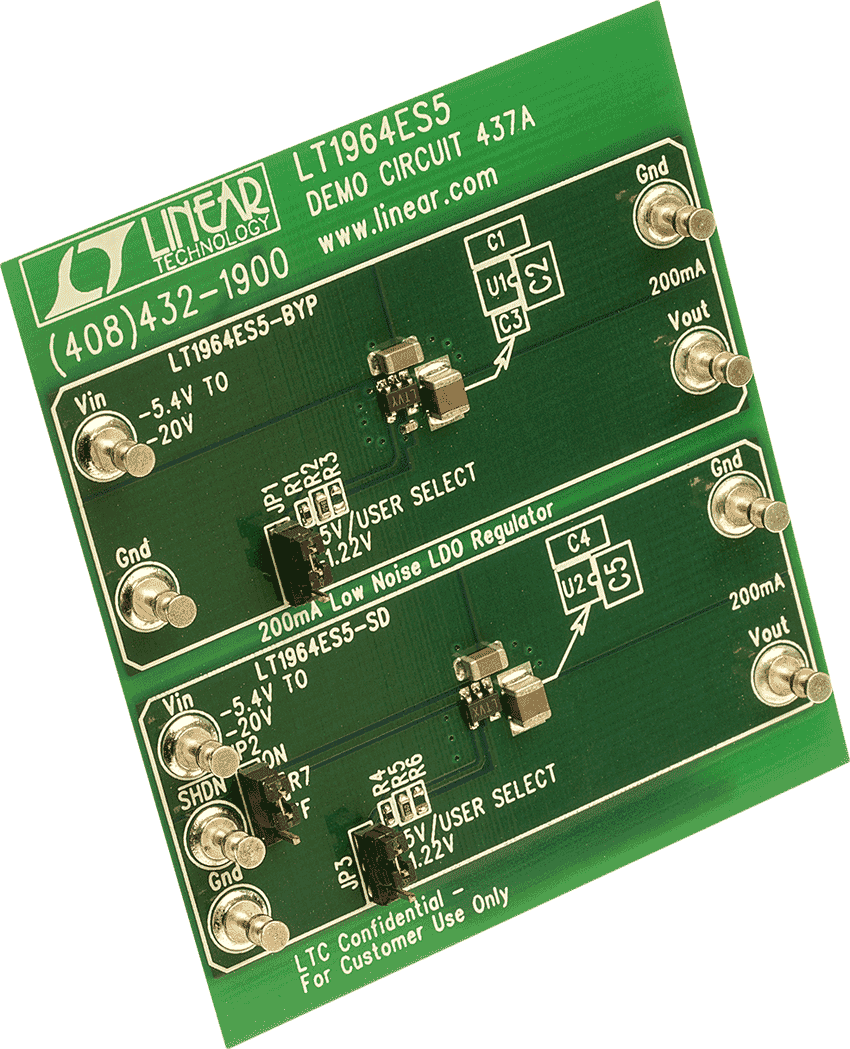

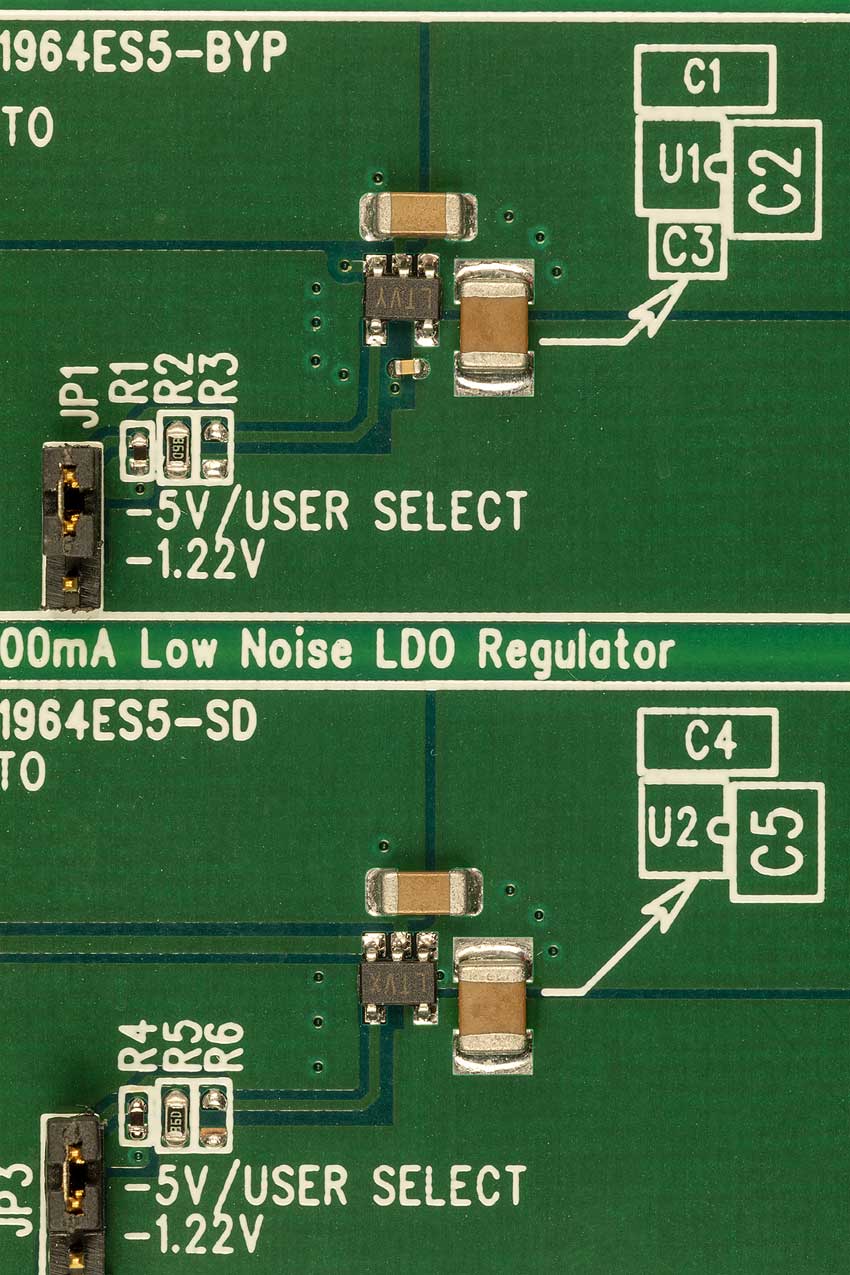

Demonstration circuit DC437 is a low noise negative micropower voltage regulator using the LT1964 low dropout linear regulator, which comes in a tiny 5-Pin SOT-23 package. The DC437 has an input voltage range from –2.3V to –20V, and is capable of delivering up to 200mA of output current. There are two circuits on this demo board: one uses the LT1964ES5-BYP which allows the internal reference to be bypassed to reduced output voltage noise, and the other uses the LT1964ES5-SD which has the shutdown feature. The output voltage is jumper-selectable and can be set to -1.22V, -5V or a user-determined value.
関連資料
-
DC437A - Schematic2009/09/24PDF25K
-
DC437A - Demo Manual2009/09/24PDF404K
-
DC437A - Design File2009/09/24ZIP923K
