DC2531A
LTC2986 Demo Board | LTC2986 Motherboard (DC2508) + 20-Input Breakout Board (DC2210), Requires DC2026
トップへ
製品概要
製品概要

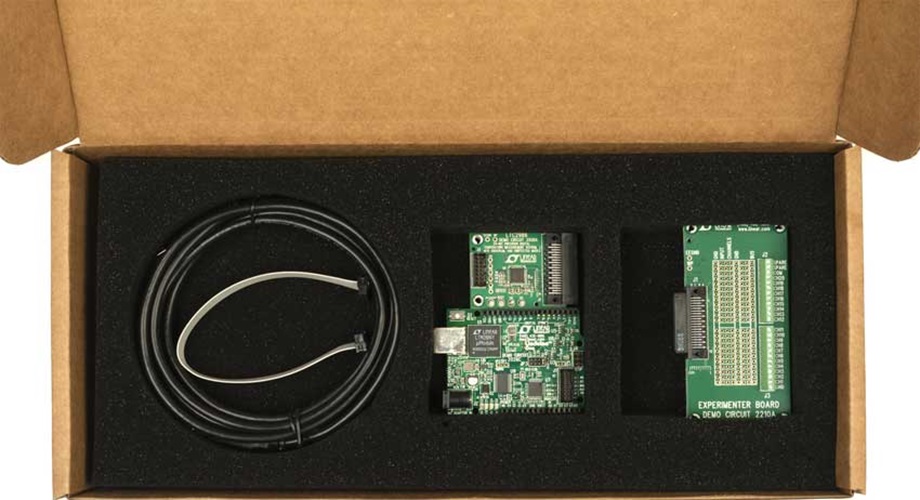

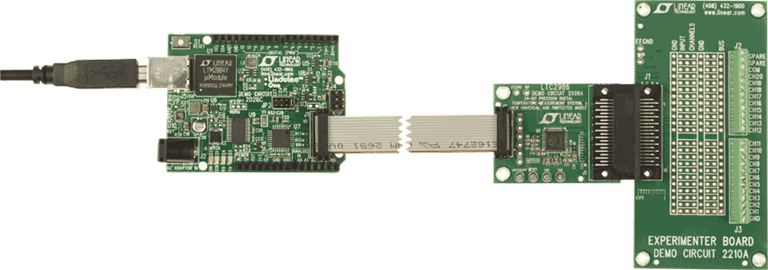

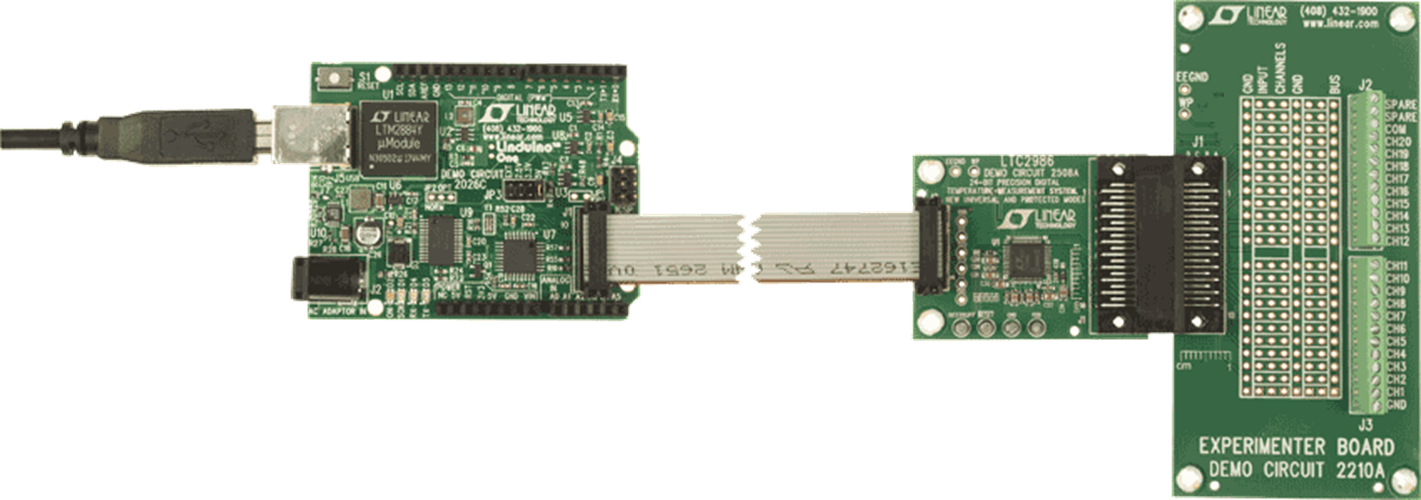

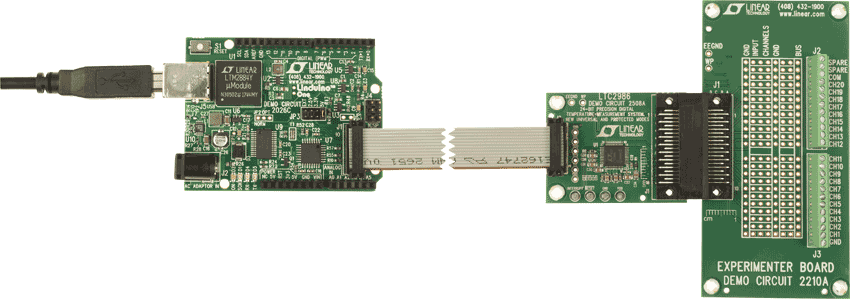

The DC2531 is the starter kit for demonstrating the performance and ease of use of the LTC2986, which is a complete temperature measurement system on a chip. This kit includes the DC2508 (main demo circuit containing the LTC2986) and the DC2210 (a simple experiment circuit allowing bread boarding). In addition to the starter demonstration kit, sensor specific demonstration boards highlighting the performance of RTDs, thermistors, or thermocouples are also available.
関連資料
-
DC2508A - Schematic2016/08/24PDF33K
-
DC2210A - Schematic2014/11/04PDF43K
-
DC2531 - Demo Manual2016/08/24PDF2M
-
DC2508A - Design Files2016/10/10ZIP0M
-
DC2210A - Design Files2014/11/04ZIP975K
