DC2447A
LTC3896EFE Demo Board | Sync Inverting Controller, 7V ≤ VIN ≤ 72V; VOUT = -12V @ 5A
トップへ
製品概要
製品概要

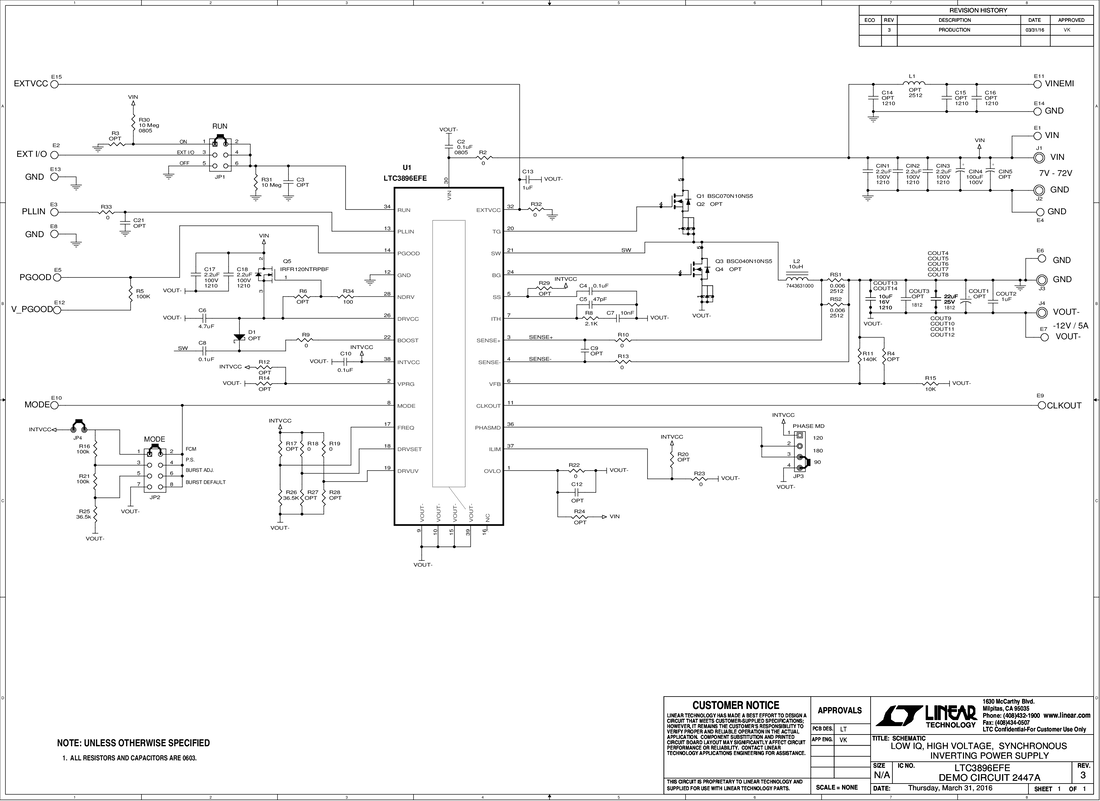

Demonstration circuit 2447A is a high voltage, high efficiency synchronous inverting converter featuring the LTC3896. This demo board has a wide input voltage range from 7V to 72V and produces a –12V output voltage.
The DC2447A is capable of delivering up to 5A of output current. Note that the thermal stress increases at lower input voltages due to increased input current.
対象となる製品
関連資料
-
DC1447A - Schematic2016/08/02PDF40K
-
DC2447A - Demo Manual (Rev. A)2023/08/11PDF658 K
-
DC2447A - Design Files2016/08/02ZIP1M
-
NEW
AN-2579: 反転昇降圧コンバータ・トポロジの設計2024/07/24
